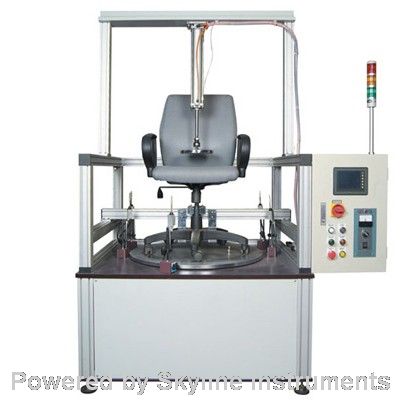

  • Chair Swivel Testing Machine SL-T03

  • detailed description
  • Chair Swivel Testing Machine
    Specifications:
    According to test Standard: BIFMA X5.1-2002, Test No. 9
    1. Applicability: This test applies to all types of chairs with a swivel seat.
    Purpose of Test: this machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling.

    2. Machine Mechanism:
    * Loading weight : 102kg (225lb)
    * Cycle rate: 5 ~ 15 rotations per minute.
    * Test cycle: 120,000 times.
    * Counter: 999,999
    * Loading weight is adjustable.

    3. Features:
    . Safety protection – automatic detection of breakdown point while the test specimen breaks.
    . Testing frequency can be pre-set. Once the pre-set level is reached, the machine stops automatically .
    . Equipped with safety cover.
    . High Precision – Forces are measured with a precision proportion valve via a pneumatic valve driver. The pneumatic output range is within 1kg/cm2 ~ 8kg/cm2 being able to maintain high precise constant force. Adopt high accuracy and precision pneumatic proportion valve to ensure test stabilities and low error.
    . Selectable units of system – kg, N, lb
    . Easy to Operate – The machine is operated via the corresponding POD(programmable operation display) system. One touch operation functions are easy for test. A test result will show as soon as the test is complete.
    . Conforms to national standard – Meets national standard requirement.
