- Site：Home > Leather and Footwear Testing Instruments > SL-L03 Din Abrasive Tester
- Product Images
- detailed description

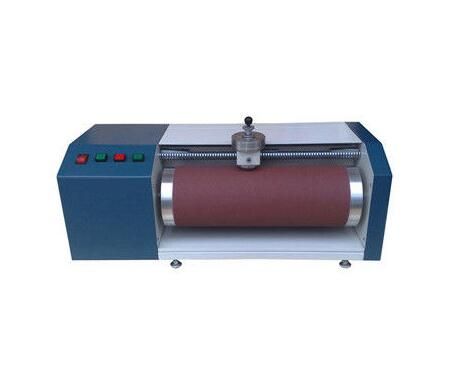

SL-L03 Din Abrasive Tester
Product Introduction
Din Abrasive Tester main function of DIN abrasive tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.
Main functions
This tester is a high efficiency, good reproducibility and easy to operate, applied to test the abrasive nature of material, as such elastic material, rubber, tires, convey belt, transmit belt, sole, synthetic leather, leather and others.
Corresponding standard
DIN-53516; ISO-4649;
Applicable industry
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; Commodity inspection, arbitration and technical supervision departments.
Technical parametersSpecimen Size 16mm, thickness at least 6mm Specimen Load 10N 0.2N Diameter of wear wheel 150mm Speed of wear wheel 40 1RPM Emery cloth Specification 60 #, seam is less than 2mm Testing Length 40M (about 84 rotate) Horizontal displacement 4.2mm/rotate
Machine Specifications
Test-arm weight 250 5 (g) Testing Load 2.5N, 7.5N Diameter abrasive wheel 150 450L (mm) Emery cloth 60 #, 425 473 1.5 (mm) Wheel Speed 40 1RPM Shift screw 6 teeth / inch Limit rotation 85 rotate Set rotation 84 rotate (about 40M) Return form Electric automatic reset Drive Power 40W; 1 / 30. Power supply 220V 50Hz Machine Dimensions 600 330 420 (mm). Machine Weight 75kg
Roll diameter 150mm Fixture lateral displacement 4.2mm/hoop each lap Rooling speed 40rpm Volume 95*66*31cm Weight 50kg Power supply 220V 50HZ
What is DIN abrasion test?
Din Abrasion Tester. The Din Abrasion Tester is primarily useful to determine the abrastion resistance of vulcanized rubber. This is against abrasive forces using a cylindrical type rotary drum. It may also be useful to determine the resistance to abrasion of other types of materials.
What is the use of Martindale abrasion tester?
The Martindale system tests the abrasion resistance of the fabric while in constant friction with another material. It also has the capabilities of measuring the pilling resistance which directly affects the fabrics durability and application of the material.
