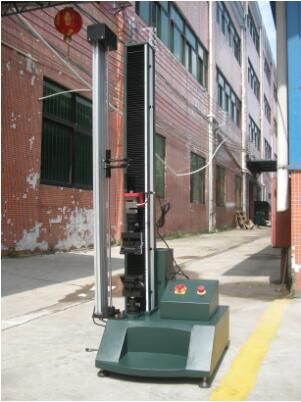

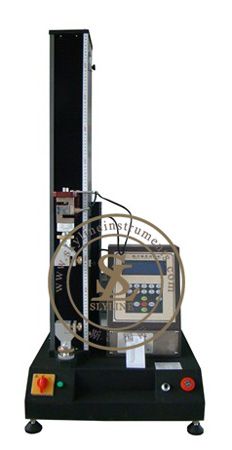

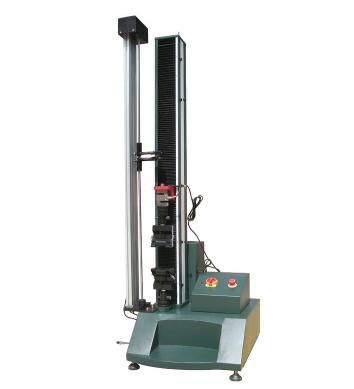

- Electric Desktop Tensile Testing Machine
Product introduction
Electric Desktop Tensile Testing Machine a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws. This machine is simple to operate, especially suitable for controlling quality in production line, This series of machine is mainly applied to test the non-metallic and metallic materials which the load is less than 1KN.
Technical parameters
Maximum Load 1KN high-precision sensors from U.S.A.
Capacity choice 200N, 500N, 1KN or less than can be self-selected
Units Kg, lb, N
Measured System Load cell + HZ-2000
accuracy of load measurement the load cell + HZ-2000 screen ± 0.5% (full range of 5% -100%)
Resolution 1 / 50000
Maximum test space (excluding fixtures) About 600mm (excluding gripper, special testing space can be customized according to customer needs)
Test speed 50-300mm / min with stepless speed and 5 fixed-speed (special testing speed can also be customized according to customer needs)
1. single test, 10-point statistics manually and automatically calculate its average and break values;
2. Multi-unit automatically exchange such as kgf, Lbf, N
3. Dunction of free to take point
4. With multi-calibration function
5. Auto printing function
6. Using 24-bit AD acquisition, resolution 1 / 200000
7. Decimal digits 0 to 4 arbitrary choice
8. Starting up using password protection feature, which can effectively prevent the non-operators to use
9. Ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine
10. Overload protection function can be set, effectively preventing machine from overload; ratio of Breakpoint from 0 ~ 99%, which the user can set according to different materials to stop the machine, realizing stop machine at any position.
Safety : The system would shut down if overload or over-trip.
shape, column shell is made of aluminum material.
Power Systems AC Motor
Power 120W Volume 450 × 550 × 1400mm Weight 75kg Power Supply 220V, 15A
Which machine is used for tensile test?Electric Desktop Tensile Testing MachineElectric Desktop Tensile Testing Machine a simple type machine, simple structure, convenient operation, It can be tested on the operated table, Using the electronic control systems, load sensor is rising and falling to test the tension or compression through the motor rotation, transmission machinery and T-screws
How does a tensile test machine work?
A material is gripped at both ends by an apparatus, which slowly pulls lengthwise on the piece until it fractures. The pulling force is called a load, which is plotted against the material length change, or displacement. The load is converted to a stress value and the displacement is converted to a strain value.
