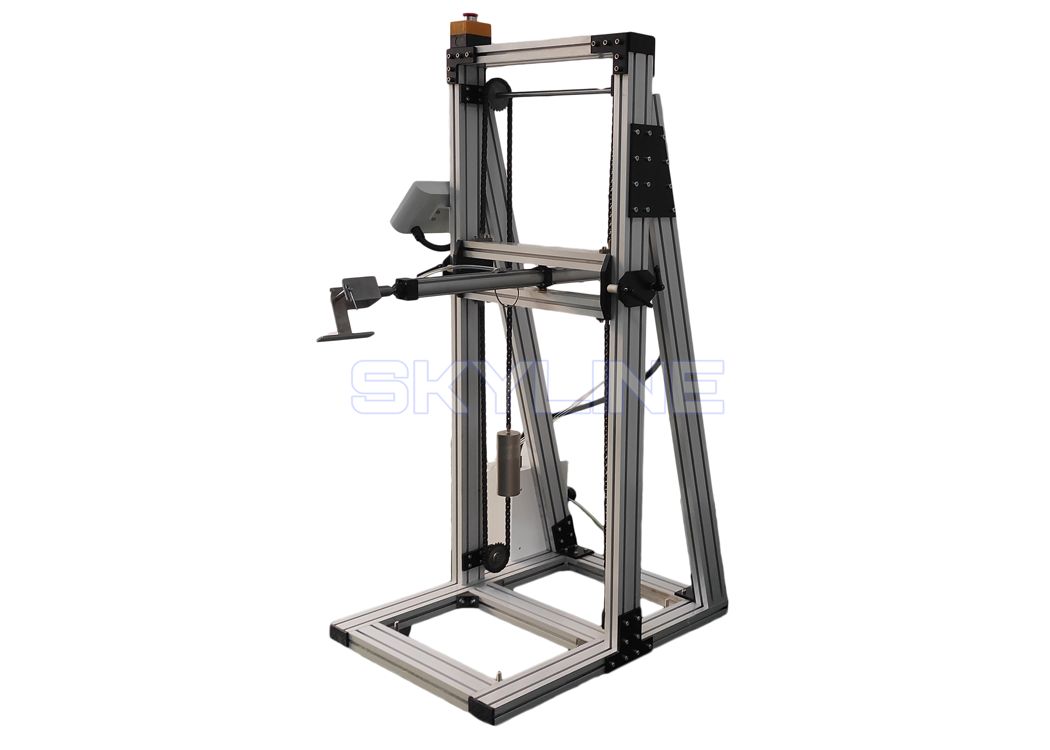

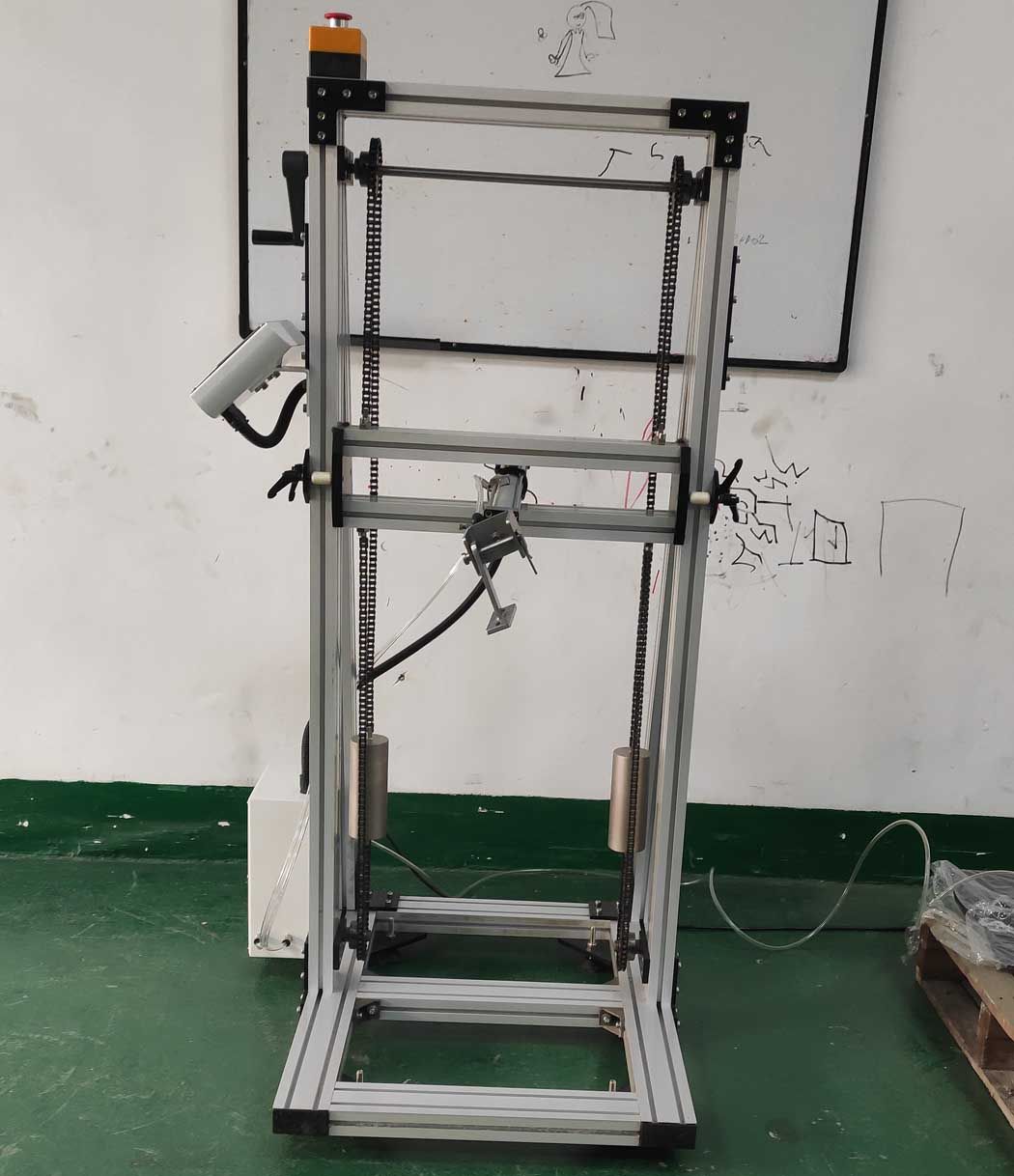

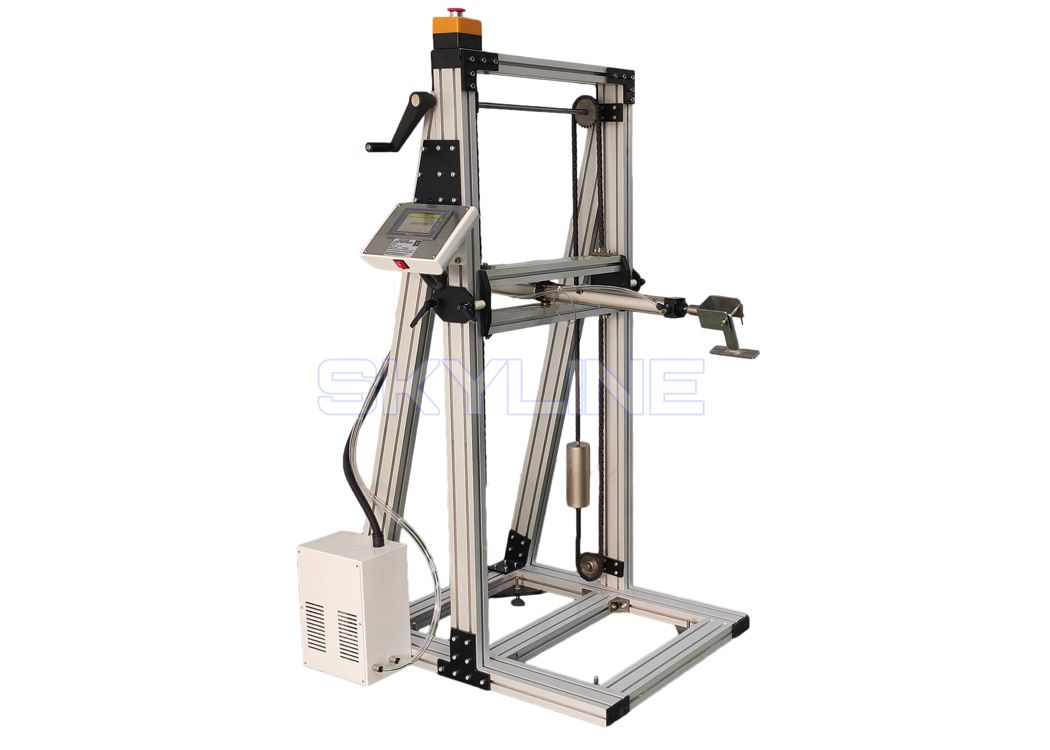

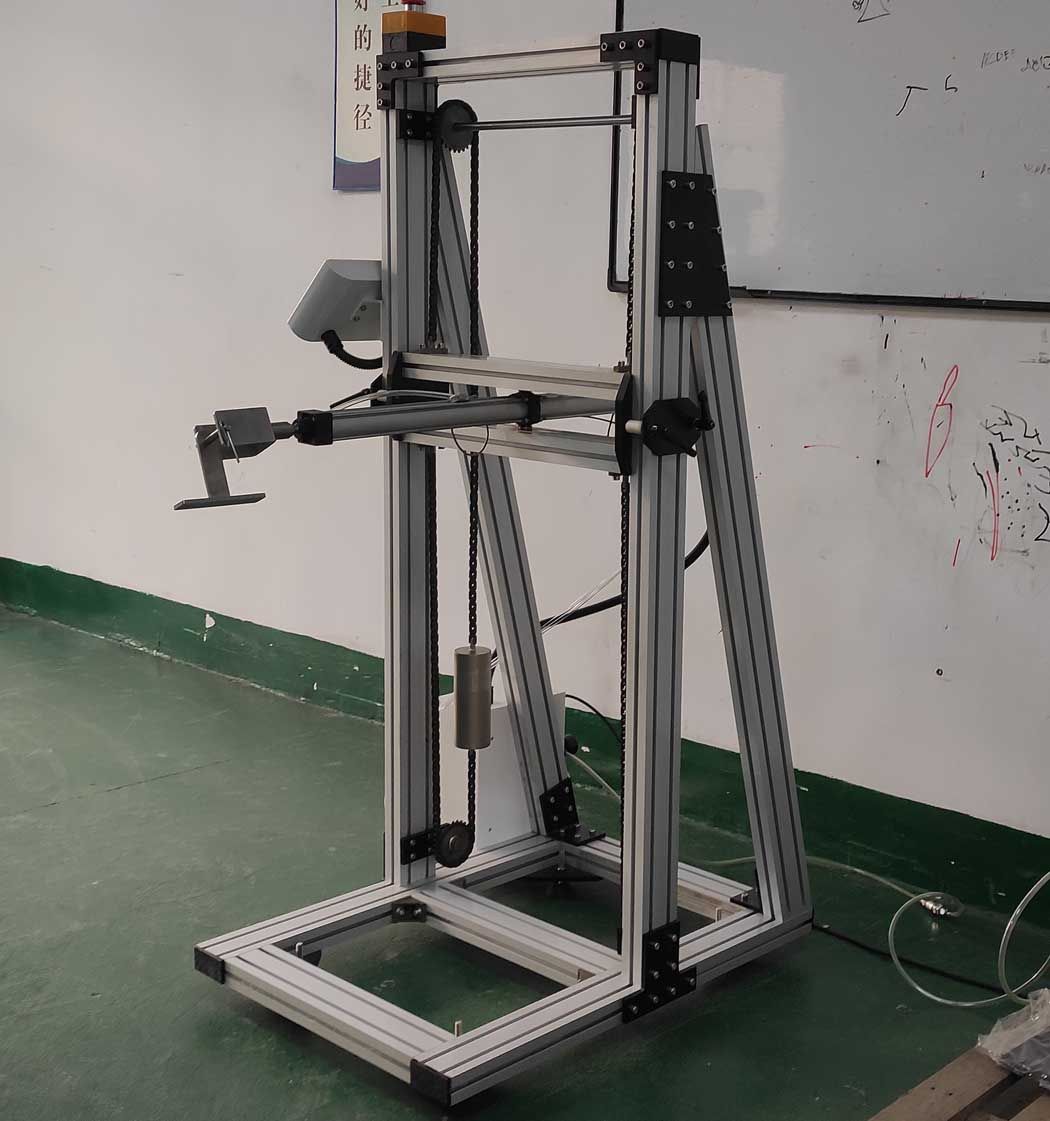

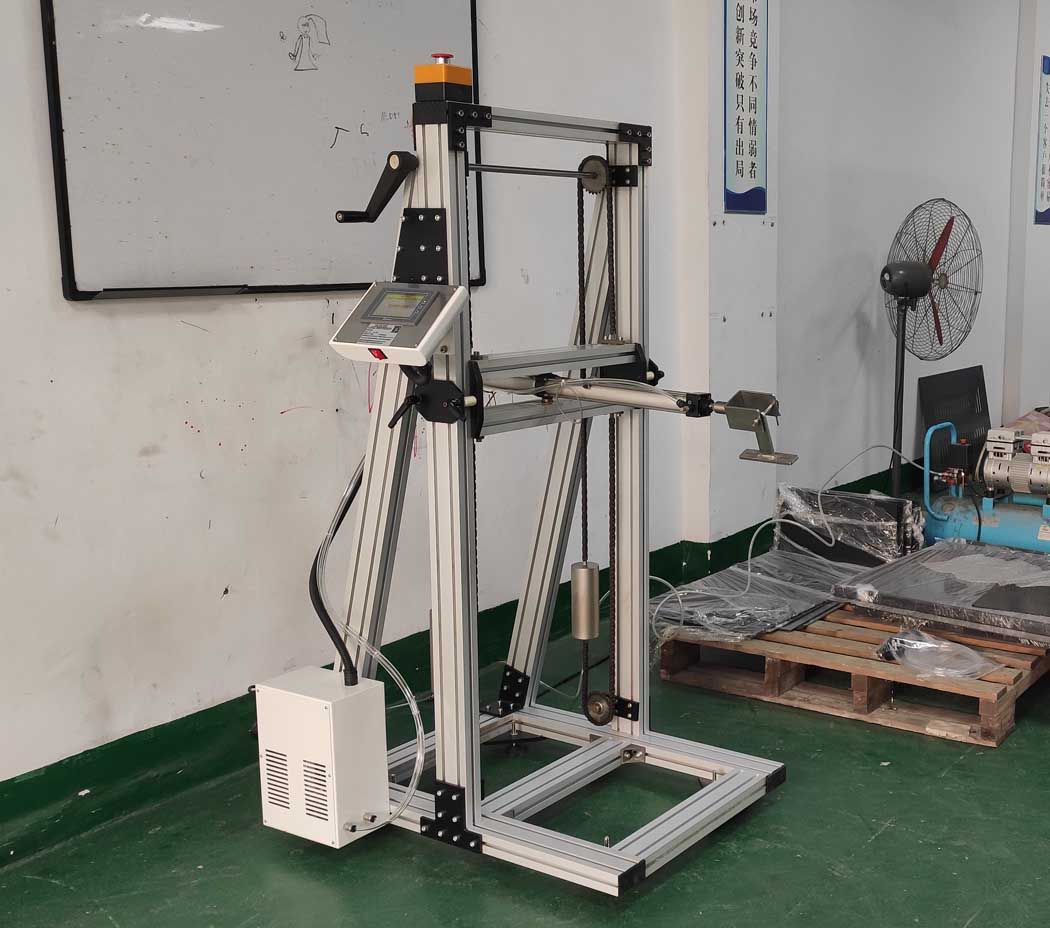

  • SL-T23 Hinge Durability Tester for Cabinets Door

    SL-T23 Hinge Durability Tester for Cabinets Door

    SL-T23 Hinge Durability Tester for Cabinets Door

    SL-T23 Hinge Durability Tester for Cabinets Door

    SL-T23 Hinge Durability Tester for Cabinets Door

  • detailed description
  • SL-T23 Hinge Durability Tester for Cabinets Door


    Product introduction

    This machine is suitable for durability testing of wooden cabinets and cupboard's door.

    Connect the cupboards furniture,  Simulation daily in the process of using situation of sliding door closing and opening. After specific cycles and check if the hinge damage or defective
    Standards: QB/T 2189
    Can be used to test the installation products, also can connect all kinds of doors and lateral strong connection and without any force which affect the test.
    Test equipment is smoked pull length Angle can be adjusted according to actual test requirements, and the adjusting range in length is 100 mm to 500 mm, Angle 0 ~ 90 ℃ cupboard door hinge durability test enginery testing activities can take arrows speed control parts, and can according to need in 0.25 m/S ~ 2 m/S on the adjustment between
    Test equipment is smoked pull length Angle can be adjusted according to actual test requirements, and the adjusting range in length is 100 mm to 500 mm, Angle 0 ~ 90 ℃
    Opening and closing power auxiliary instrument measurement with, according to the drawer can pause when opening and closing time adjust, can be set testing machine number

    7 control method:PLC(touch screen)


    Technical parameters

     Test speed  10~18 time/min adjustable
     Cylinder trip  800mm
     Beams maximum height  1200mm
     Dimension(WxDxH)  150x100x160cm
     Weight(about)  ≈85Kg
     Air source  7kgf/cm^2
     Power Supply  1∮ AC 220V 50Hz 3A
     Angle  0~90 degree
     Timer counter  0-9,99999


    What is the purpose of durability test?

    Durability testing is an essential step in determining the expected life of a vehicle. It increases repeatability and reduces risk exposure by detecting defects at an earlier stage in the vehicle development process.


    How do I test door hinges?

    Step 1: Remove the Hinge. Take the hinge off the door by removing the screws with a Phillips screwdriver. ...

    Step 2: Measure the Hinge Width. Fully open the hinge on a flat surface. ...

    Step 3: Measure the Hinge Height. ...

    Step 4: Measure the Hinge Radius. ...

    Step 5: Note All Measurements.
