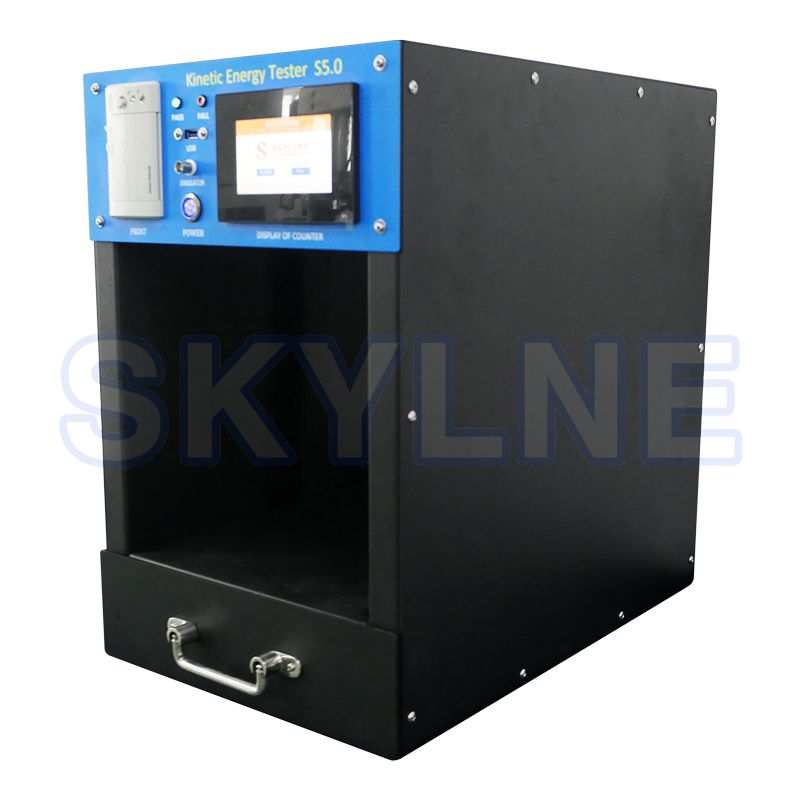

  • Kinetic Energy Tester with Sensor Distance 10-30cm

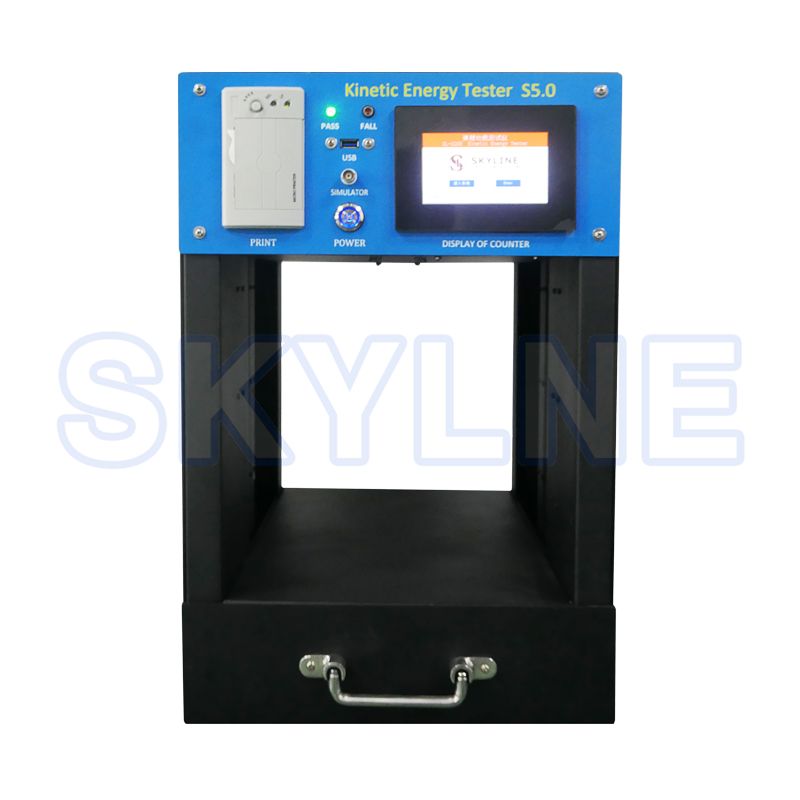

    Kinetic Energy Tester with Sensor Distance 10-30cm

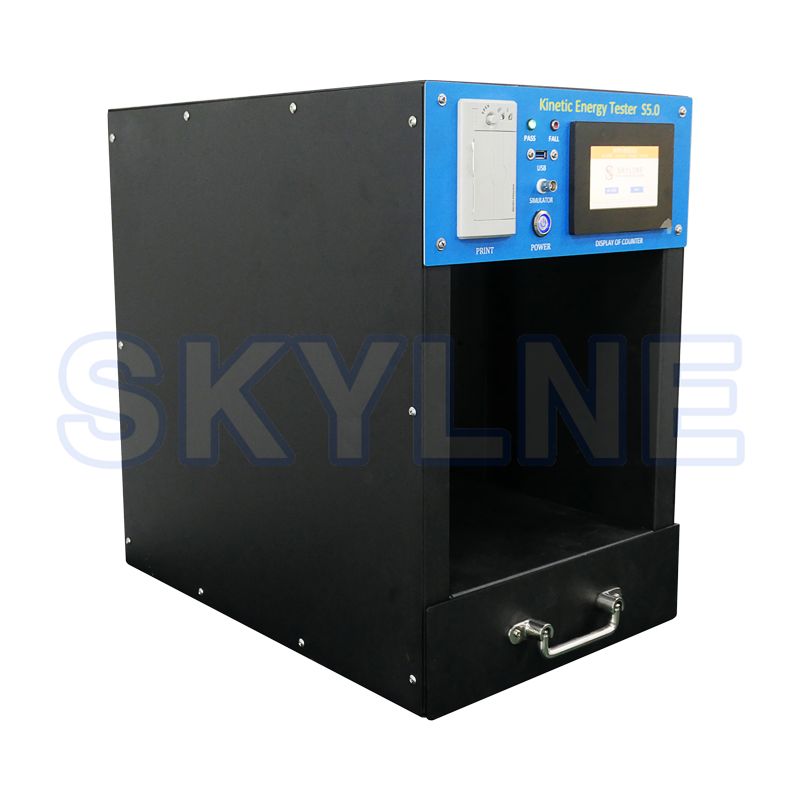

    Kinetic Energy Tester with Sensor Distance 10-30cm

  • detailed description
  • Kinetic Energy Tester with Sensor Distance 10-30cm



    Product Introduction

    Kinetic Energy Tester is a equipment to check the speed of a object (DUT) which pass though the test tunnel .According to the result read out and mass value of DUT, we could calculate the kinetics energy value and know how danger of DUT it is .

    Inside the test tunnel of this KE tester, there have three sets of Infra-Red sensor group. One set for start the timer and other two for stop the timer.

    Each group include 30 pairs Infra-Red Sensor. They are located in opposite plate and the Infra-Red light are transmitter and receiver are fix in a opposite and signal will transmit and receive though a 1mm narrow gap.

    The first group sensor is calls “Start-Sensor”. The second group is call “10cm Stop Sensor” and the third group is call “30cm Stop Sensor”.

    Distance between “Start Sensor” and “10cmStopSensor” is 10cm. It is always use for detect low speed or high air friction object.

    Distance between “Start Sensor” and “30cm Stop Sensor” is 30cm. It is always use for detect high speed or low air friction object.

    1/10000s timer will start at “Start-Sensor” detected DUT, timer will stop until “10cmStopSensor” or “30cmStopSensor” detected DUT. (According to the test range select by user).



    Product Features

    • Interior sensor distance 100-300mm
    • Equipment and means for determining the velocity and the mass of the projectile, to give a calculated kinetic energy to an accuracy of 0,005 J.
    • The measurement distance (d) maximum up to (300 ± 5) mm
    • Equipment and means for determining the velocity and the mass of the projectile, to give a calculated kinetic energy to an accuracy of 0,005



    Technical parameters

     Number of samples  1/time
     Maximum timing  15.000000S
     Timing range  0.000001--15.000000S
     Speed display range  0.007M/S—100M/S
     Induction spacing  100mm, 152.4mm,300mm, error 0.1mm
     Minimum diameter of sample  5mm
     Volume(WxDxH)  55x35x52cm
     Weight (approx.)  ≈16.8kg
     Power supply  1∮ AC 220V 3A



    Basic Function /Specification

     Time counter interval  1/10000s
     Timer Error  <0.1ms
     Sensor distance select  10,15.24cm,30cm
     Sensor distance error  <0.5mm



    Assist Part

    1. Bullet Simulator.

    2. 28cm wide test tunnel

    3. PC Interface Cable

    4. 2” thermal printer

    5. Drawer

    6. Spare thermal paper



    Testing Standards

    EN71-1,ASTM F963, ISO8124-1, GB66
