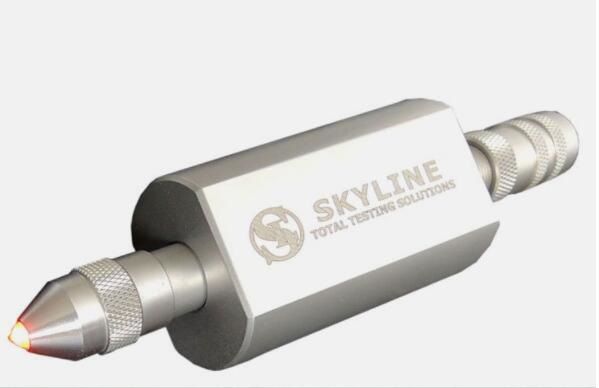

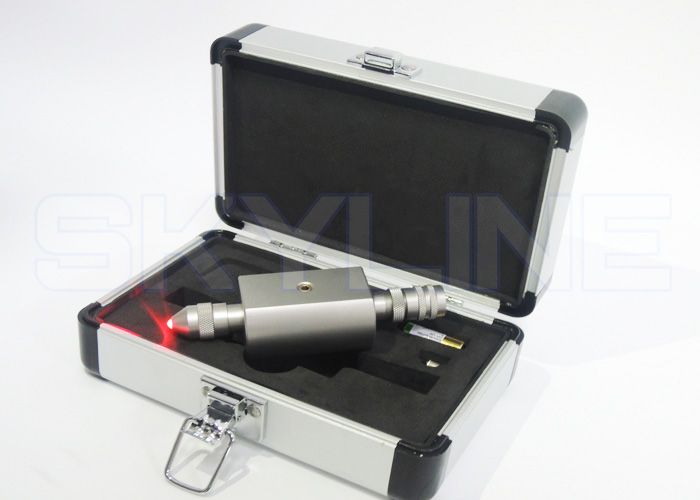

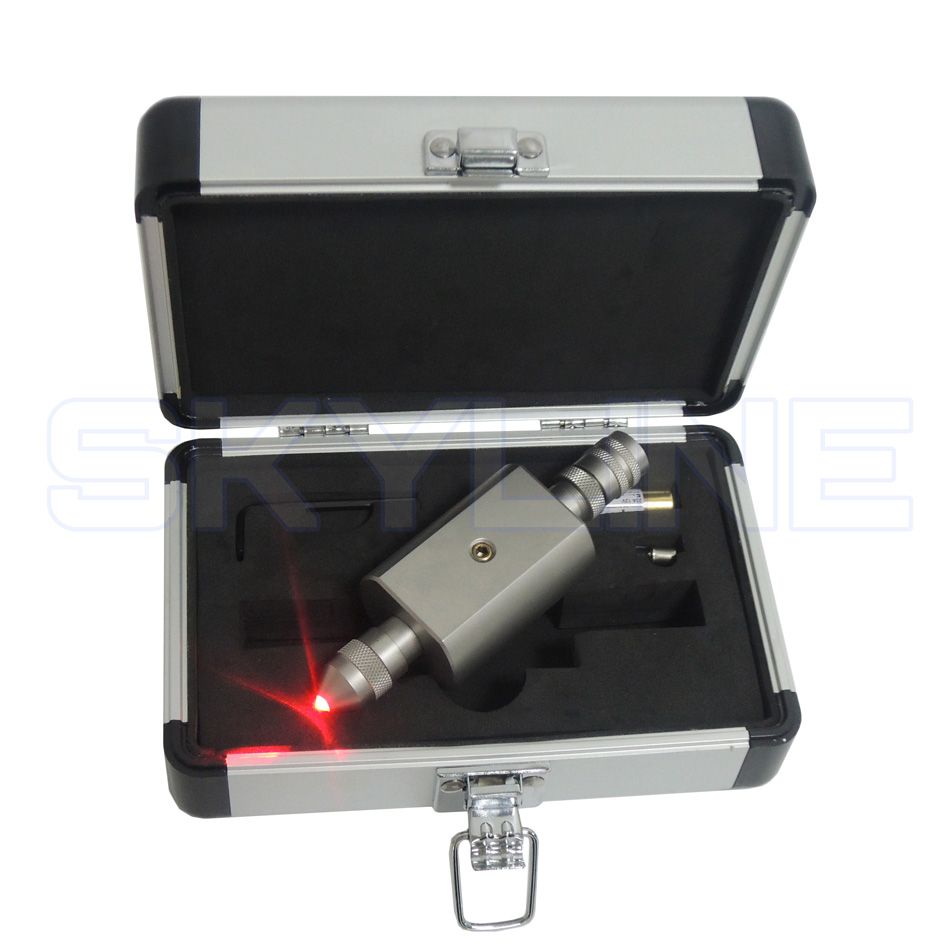

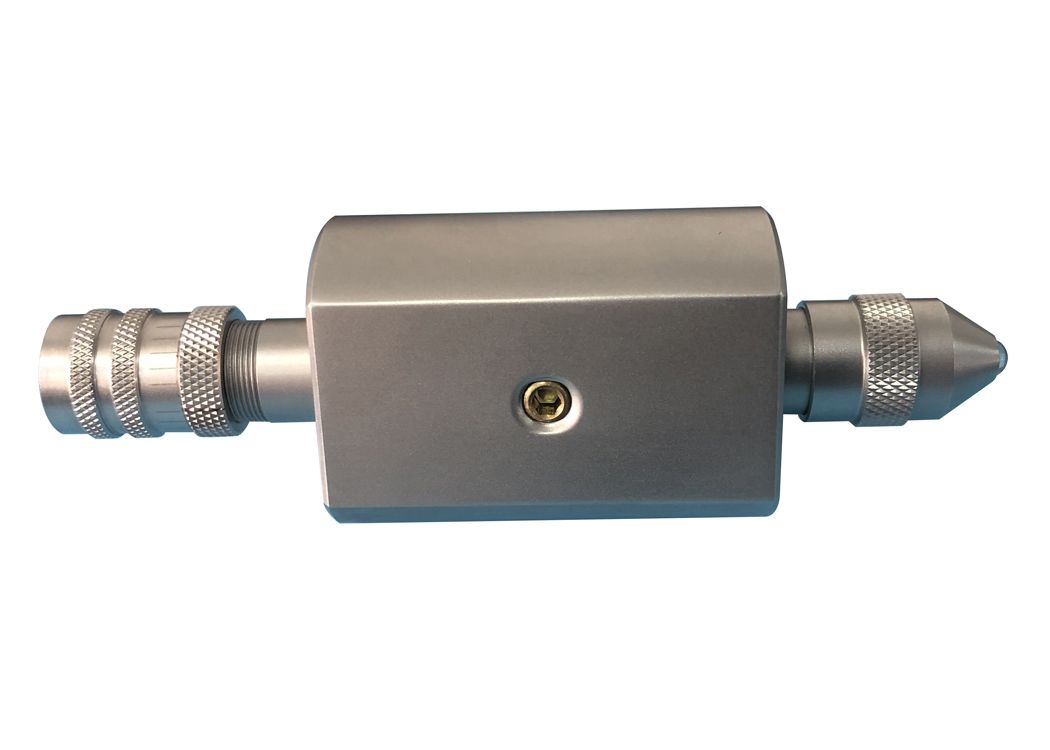

  • SL-S01 Stainless Steel Toys Sharp Point Tester

    SL-S01 Stainless Steel Toys Sharp Point Tester

    SL-S01 Stainless Steel Toys Sharp Point Tester

    SL-S01 Stainless Steel Toys Sharp Point Tester

    SL-S01 Stainless Steel Toys Sharp Point Tester

  • detailed description
  • ISO 8124 Toy Safety Tester Sharp Point Tester

    Product Introduction

    To determine whether accessible sharp points on toys are likely to cause injury. If the accessible sharp point penetrates a specified depth into the small rectangular opening of the tester, the LED is illuminated to indicate that the point is unacceptably sharp. Toys intended for use by children under 8 years old are subject to this requirement before or after use & abuse testing.
    Dimensions: 112× 16× 16mm; Weight: 80 g

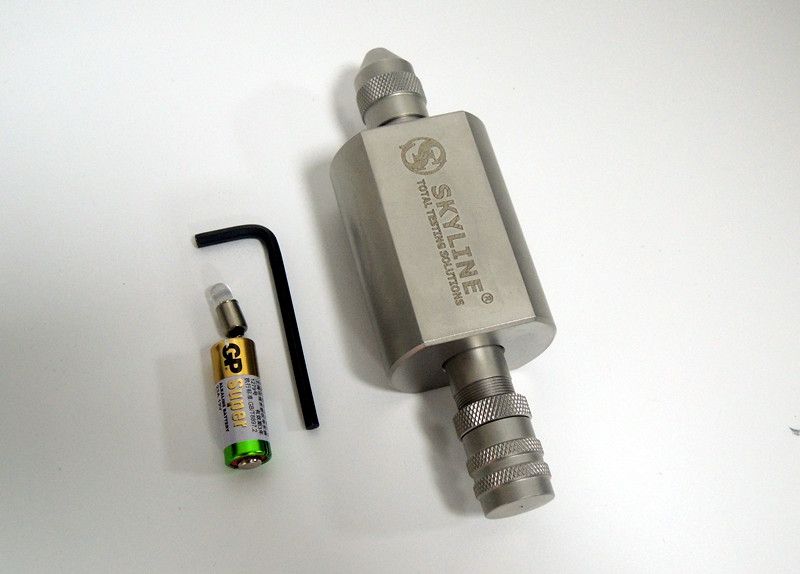

    Accessories: weight, batteries, bulb 2 pieces


    Testing Standards

    16 CFR 1500.48, ASTM F963 4.8, EN-71 1998 8.14, ISO 8124


    Product Instructions
    1. Place the sharp point tester on the accessible point and check whether the tested point can be inserted into the sharp tester to the specified depth. The pointed point of the test is inserted into the measuring slot, and an external force of 1 pound is applied to make the indicator light on. This pointed point is judged as a sharp pointed point.
    2. Wooden thorns in wooden toys are dangerous sharp points, so they must not be present on toys.
    3. Before each inspection, the sensor head must be adjusted according to the regulations to ensure accurate and sensitive sensing.
    4. When adjusting the sharp point tester, first loosen the locking ring, and then rotate the locking ring to move it forward enough to the indicator device to expose the calibration reference scale on the circle. Turn the measurement cover clockwise until the indicator light flashes. Rotate the measuring cap counterclockwise until the appropriate micrometer mark is consistent with the calibration scale, and then turn the locking ring until the locking ring is against the measuring cap to fix the test cap in place.



    NOTE: This Sharp Point Tester is in stock.


    Please review video of the Sharp Point Tester operation as below link:

    https://youtu.be/OFkLXTdf5rY


    Technical Parameters

    Testing groore size L1 (mm):

    Nominal Testing average Error MPE Conclusion
    1.02 1.009 -0.011 ±0.02 PASS



    Testing groore size L2 (mm):

    Nominal Testing average Error MPE Conclusion
    1.15 1.143 -0.007 ±0.02 PASS



    Testing groore depth (mm):

    Nominal Testing average Error MPE Conclusion
    0.38 0.39 0.01 ±0.02 PASS



    The offset of to turn 5graduation (mm):

    Nominal Testing average Error MPE Conclusion
    0.12 0.13 0.01 ±0.02 PASS



    Testing force (N):

    Nominal Measured Error MPE Conclusion
    4.5 4.4 -0.06 (0~-0.2) PASS



    Spring force (N):

    Nominal Measured Error MPE Conclusion
    2.5 2.40 -0.10 (0~-0.3) PASS
