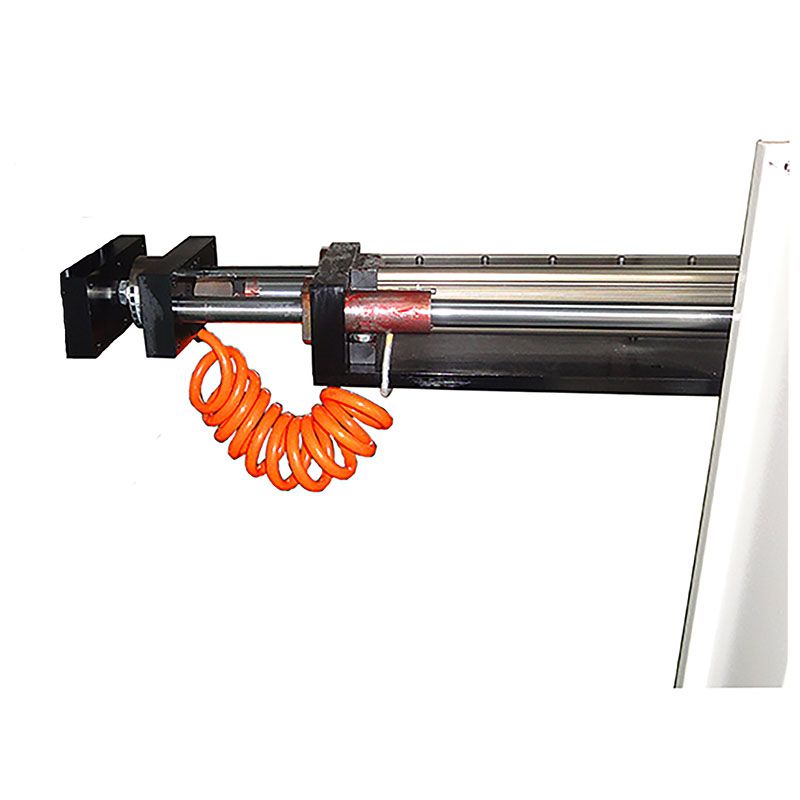

  • Table Slides Durability Testing Machine with Servo Linear Actuator

    Table Slides Durability Testing Machine with Servo Linear Actuator

    Table Slides Durability Testing Machine with Servo Linear Actuator

    Table Slides Durability Testing Machine with Servo Linear Actuator

    Table Slides Durability Testing Machine with Servo Linear Actuator

  • detailed description
  • Desk Drawer Slides Durability Testing Equipment


    Application

    This machine is suitable for testing the durability of the drawer slide mounted on the furniture. It can also set the force value to carry out the destructive test and measure the push-pull of the drawer.



    This machine is suitable for testing the doors that are mounted on furniture for horizontal sliding, including the structure made of hinged joints door piece groups.



    Parameters

    1. Slide size: 10-24” (250-610mm) long
    2. Stroke: 600mm
    3. Drawer widths: 10-24” (250-610mm) adjustable
    4. Accommodate up to a 12” (305mm) deep drawer.
    5. Accommodate “soft close” slides
    6. Have the ability to adjust the stroke within .12” (3mm).
    7. Have a minimum of 12” (305mm) of vertical adjustment
    8. Can handle maximum load of 300 lb (135kg)
    9. Speed rate between 0-.25 m/s.
    10. Have a stroke counting device with failure notification and automatic stop with the number of successful completed cycles recorded
    11. Have the ability to test a free standing application or application where the slides are already mounted in the application.
    12. Designed for a minimum 15 million cycle life expectancy
    13. Controller: PLC+ touch screen
    14. Servo actuator
    15. CE certified.
    16. Load cell capacity: 200KG

    Complies with standard

    ANSI/BIFMA X5.5-2014;

     Test No. 10 Extendible Element Cycle Test

     Test No. 11 Extended Element Retention Impact & Durability Test

     Test No. 12 Extendible Element Rebound Test
