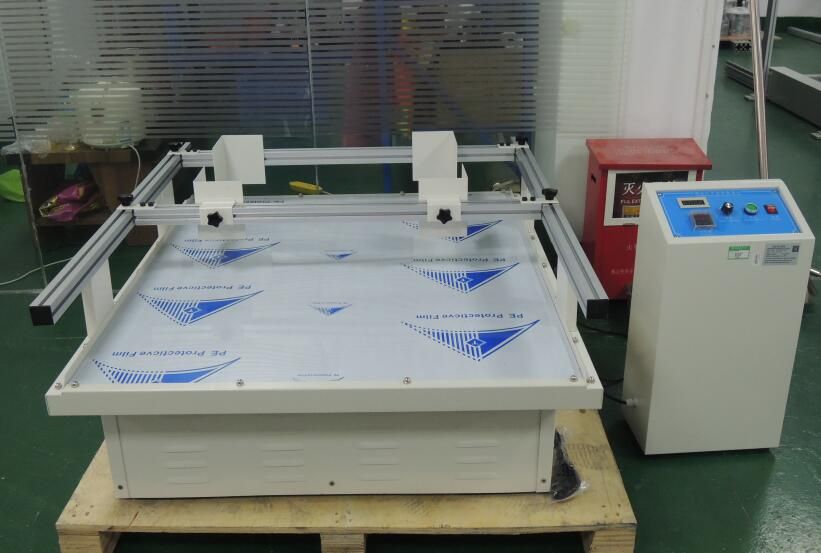

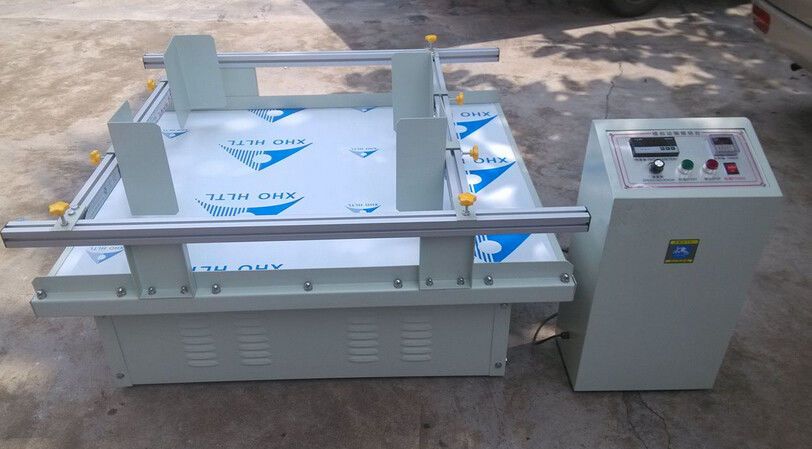

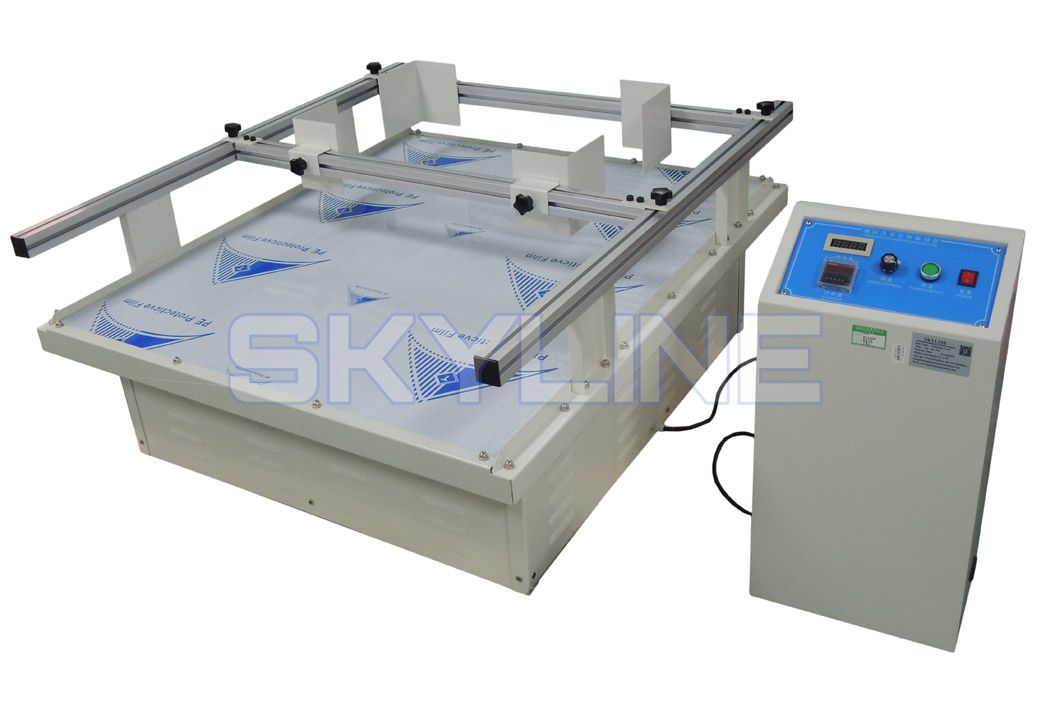

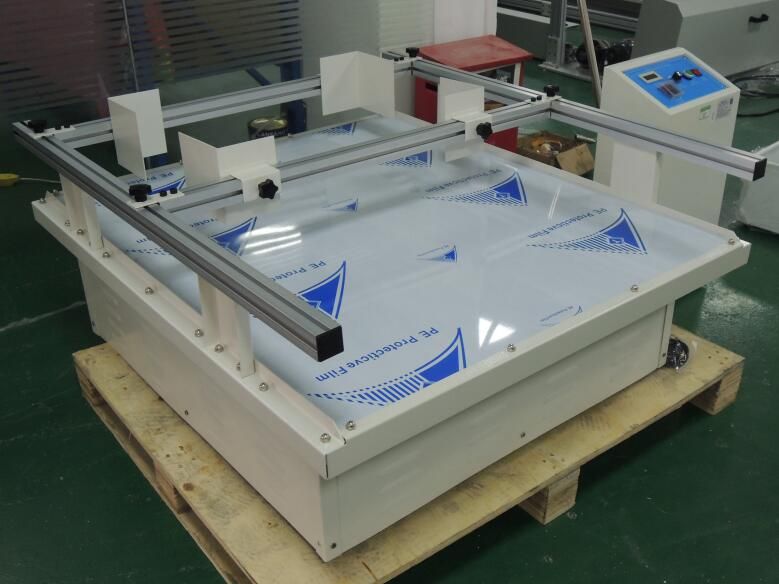

  • SL-T18 Transportation Vibration Testing Machine

    SL-T18 Transportation Vibration Testing Machine

    SL-T18 Transportation Vibration Testing Machine

    SL-T18 Transportation Vibration Testing Machine

  • detailed description
  • SL-T18 Transportation Vibration Testing Machine



    Product information

    Simulation products in transportation state of environmental assess product packaging design, the rationality and structure strength.


    Test object:Packaging for shipment of the products.
    Test program:Will the packaging products with a certain speed vibration corresponding time.
    Result assessment: By vibration testing products shall promote function and appearance were damaged.

    Technical Parameters
     Vibrating frequency  100-300rpm
     Vibrating range  25.4mm(1")
     Timer    0-99999 hour
     Vibrating manner  Rotary (positives type)turn
     Maximum load  100kg    300kg     500kg     1000kg
     Effective area of table  110 X 98CM    130 X 120CM    180 X 150CM
     Motor   1HP(750W)    3HP(2.25kw)    5HP(3.75KW)      7HP(5.25KW)
     Dimemsion

     120 X 110CM    140 X130CM     190 X 160CM



    What is vibration testing?
    Vibration testing under laboratory conditions mimics the conditions that a product or structure might see during its lifetime. Used to ensure that products are robust and perform safely during operation or transit, vibration testing detects performance issues and potential failures before they start.

    Why do we do vibration test?
    Vibration analysis is a process that monitors the levels and patterns of vibration signals within a component, machinery or structure, to detect abnormal vibration events and to evaluate the overall condition of the test object.
