Description

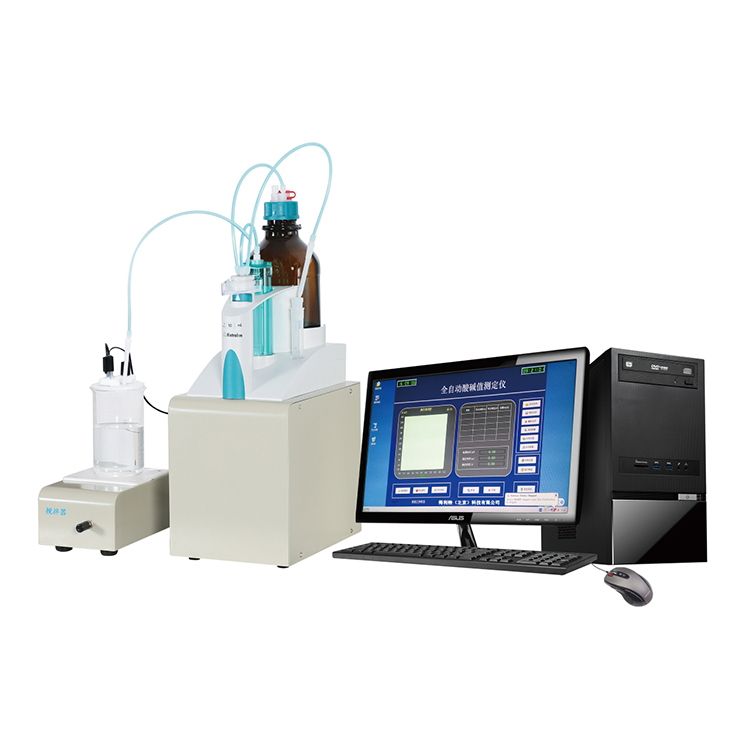

The pH meter of oil products adopts the principle of potentiometric titration. By recording the electrode potential and the titration volume during the titration process, the equivalence point and the corresponding volume of the standard titration solution are found, so as to obtain the pH value in the sample. The instrument can accurately detect the acid value of petroleum products such as transformer oil, turbine oil, fire-resistant oil, diesel oil and gasoline. Used in chemical, electric power, petroleum, environmental protection, railway and other industries.

Standard: GB/T7304、GB7599、GB/T 18609、ASTM D664

Features

1. Windows operating platform, man-machine direct dialogue, convenient operation, with workstation function.

2. The titration curve is displayed in real-time, and the titration curve, results, and data are stored and printed.

3. Using an imported titration unit, the instrument has higher measurement accuracy and better stability.

4, automatic cleaning, automatically fixed value adding liquid.

5. Automatically judge the endpoint, automatically filter out the false endpoint, and at the same time can manually select and judge the endpoint.

 Specification

• Measuring range: greater than 0.01mgKOH/g

• Accuracy: relative error ≤5%

• Potential measurement range: 0～±1999.5mv

• Basic error: 0.1%FS ±0.5mv

• Burette volume: 10ml

• Minimum volume of burette: 0.01ml

• Burette accuracy: ±0.1%F·S

• Instrument completeness: host, titration unit, computer (including operating software), printer,etc.

• Dimensions of the instrument: L×B×H, mm: 350×280×178

• Weight: 12kg
