  • Site:Home > Textile Testing Equipment > Color Fastness Instruments > SL-F36 Crockmeter Electronic
  • Product Images
  • SL-F36 Crockmeter Electronic

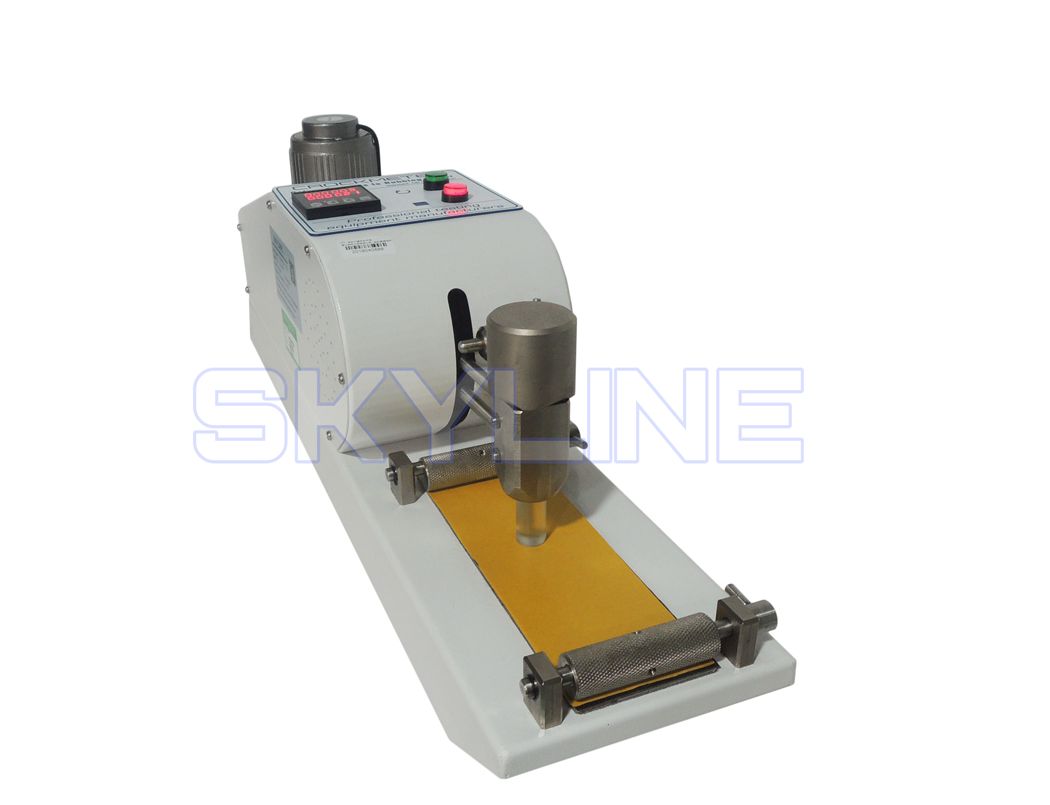

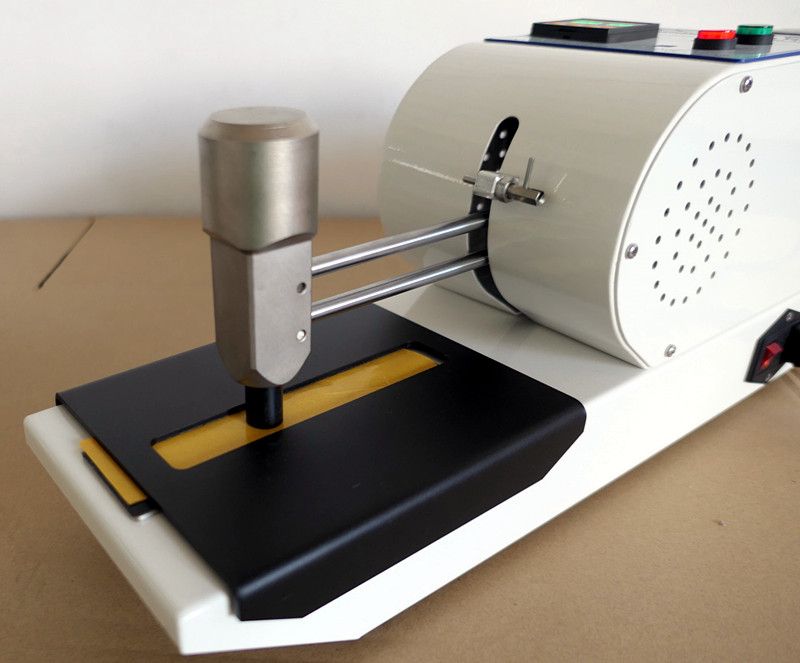

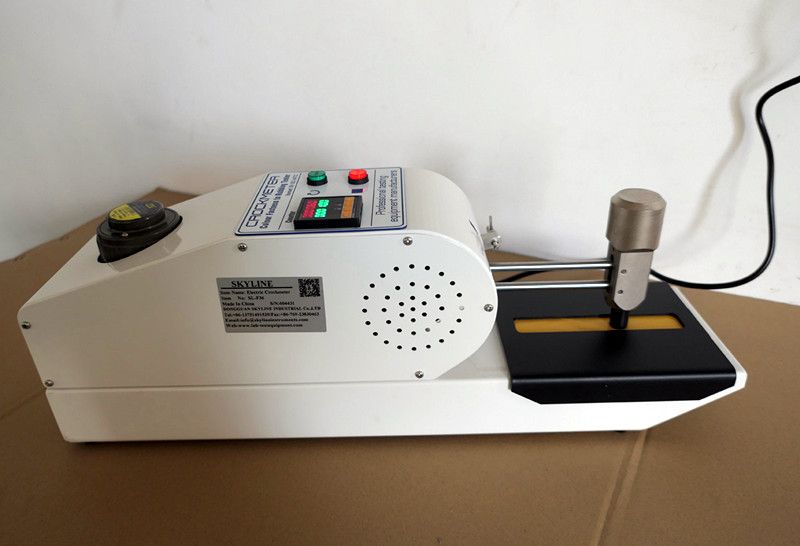

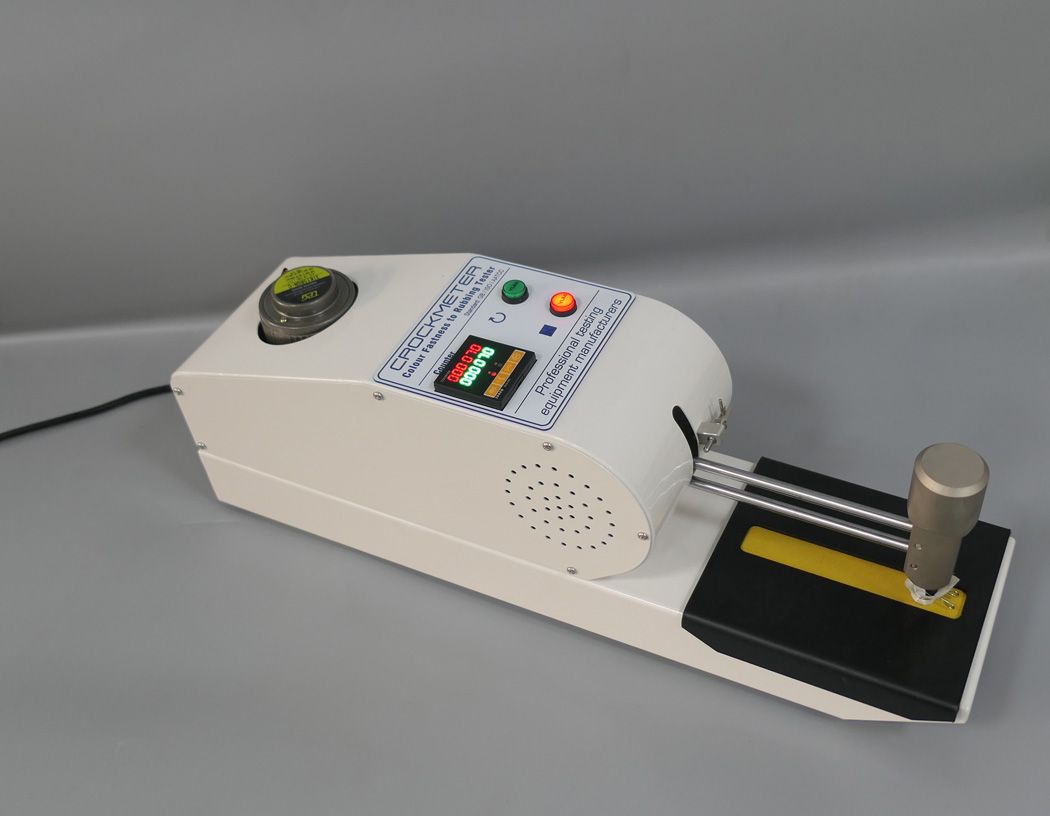

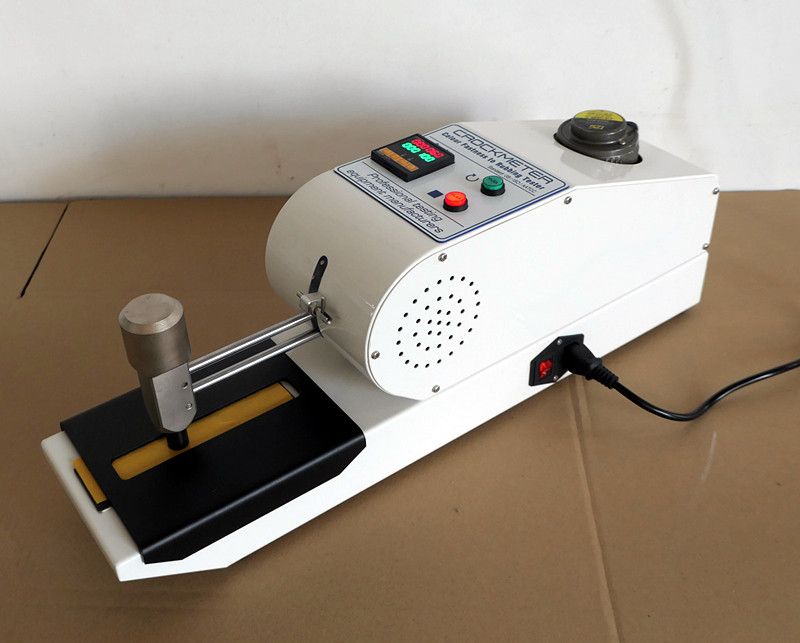

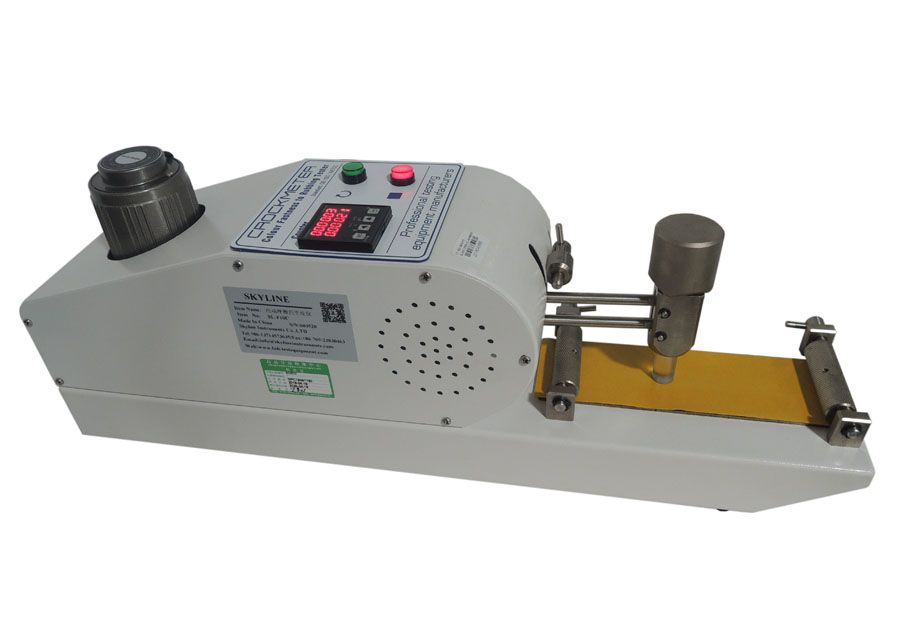

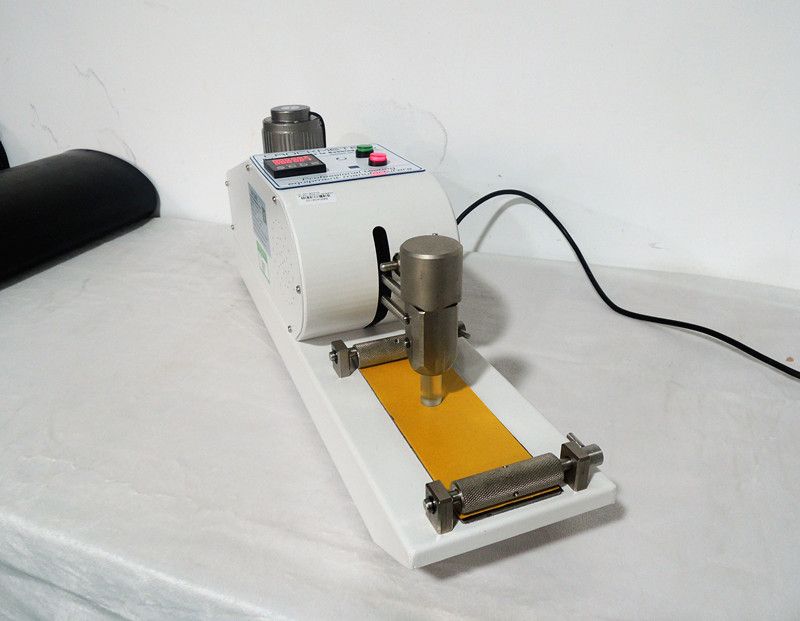

    SL-F36 Crockmeter Electronic

    SL-F36 Crockmeter Electronic

    SL-F36 Crockmeter Electronic

    SL-F36 Crockmeter Electronic

    SL-F36 Crockmeter Electronic

    SL-F36 Crockmeter Electronic

    SL-F36 Crockmeter Electronic

  • detailed description
  • Crockmeter Electronic



    Product introduction

    Electronic Crockmeter, to determine the colour fastness of textiles to dry or wet rubbing. A pinned acrylic sample holder ensures rapid sample mounting and repeatability of results.this crockmeter Fitted with a pre-determined electronic counter for strokes up to 999,999 times

    Standards GB/T3920-2008,GB/T420,GB/T5712



    Technical parameters

     Rubbing head  Dia.16mm
     Vertical pressure  9N+/-10%
     Rubbing stroke  104mm
     Rubbing speed  adjustable

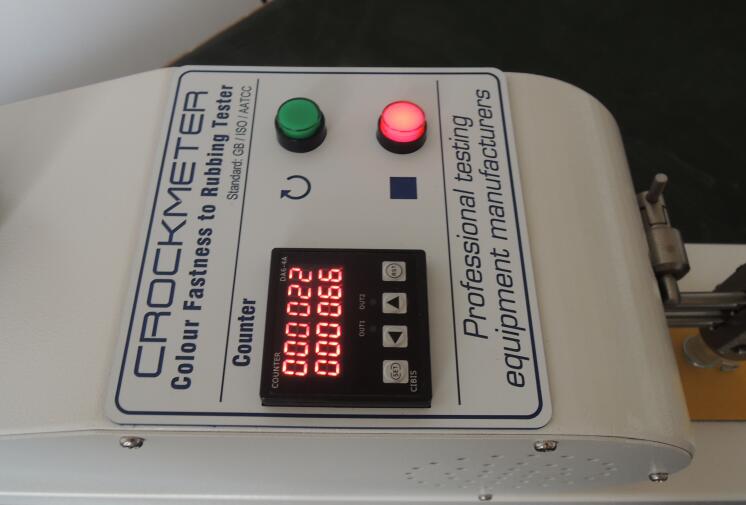

     Counter  LCD, 1-999,999times, automatically stops


    Original Accessories
    AATCC rubbing clothing :10 pcs
    Sand paper : 2 (pcs)
    Rings : 2 (Pcs)
    Dimension : 950×340×390mm(L×W×H)
    Power Power : 1HP, AC220V, 50HZ, 60W

    Weight : 22KG

    Crockmeter-Electronic


    What is a Crockmeter used for?

    The Crockmeter provides a quick and accurate method to determine the amount of color transferred from textile materials (such as fabric, carpeting, yarn and leather) to other surfaces by rubbing. The Crockmeter has also been employed to perform rub abrasion, scuff and / or mar tests on flat specimens.


    What is Crock testing?

    Crocking refers to the rubbing off of color from a fabric when subjected to abrasion. One test is the AATCC 8-2001. This “is a test method of the American Association of Textile Chemists and Colorists (AATCC). This method uses a standard white cotton fabric that is rubbed against the surface of the test fabric.
