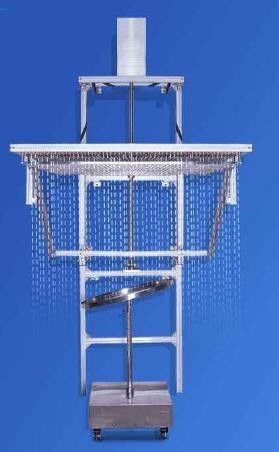

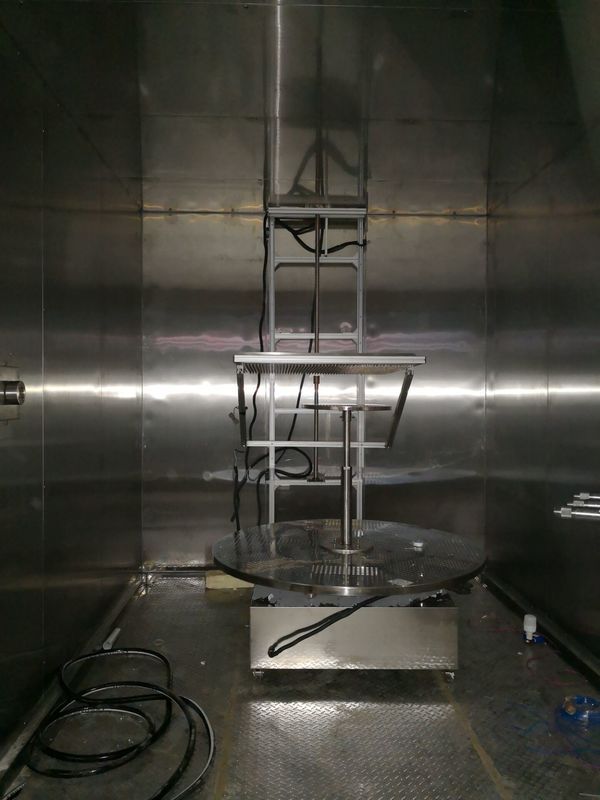

  • Wall-mounted Stainless Steel Environmental Test Chamber / Vertical Drip Tester for IPX1 , X2 Test

  • detailed description
  • Application:

    The main function of this equipment is to test the physical and other related performance of products under the conditions of simulated dripping weather for products such as electrical and electronic products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their components and parts. After the test, through the test to determine whether the performance of the product meet th e requirements in order to facilitate product design, improvement, testing and factory inspection.



    Standards:

     IEC60529: 1989 + A1: 1999 + A2: 2013, ISO20653 Road Vehicles -
    GB4208-2008 "Enclosure protection level (IP code)" 14.2.1, 14.2.2 clauses and Figure 3; GB7000.1 "Lamps Part I: General Requirements and Test" section 9.2.3 of the requirements;
    VW80000-K10: IPX1, IPX2
    GB / T4942.2-1993



    Parameters:.

    apply to the product IPX1, IPX2 test



    drip tank

    1000 × 1000 × 50mm (length × width × height)

    dripping area

    0.64m2

    precipitation

    IPX1 (1 ± 0.5mm / min), IPX2 (3 ± 0.5mm / min), the user set their own drop (error: ± 0.5mm / min)

    water tank material

    stainless steel

    drip aperture

    φ0.4mm

    drip hole spacing

    20 * 20mm

    drip tank height

    200mm ~ 2000mm (equipment automatic control adjustment)

    set the range

    0s-999s (can set their own time)

    the test completed automatic discharge water tank water



    rack materials

    industrial alloy aluminum

    water tank type

    closed water tank (L800mm * W800mm), SUS304

    the machine installation

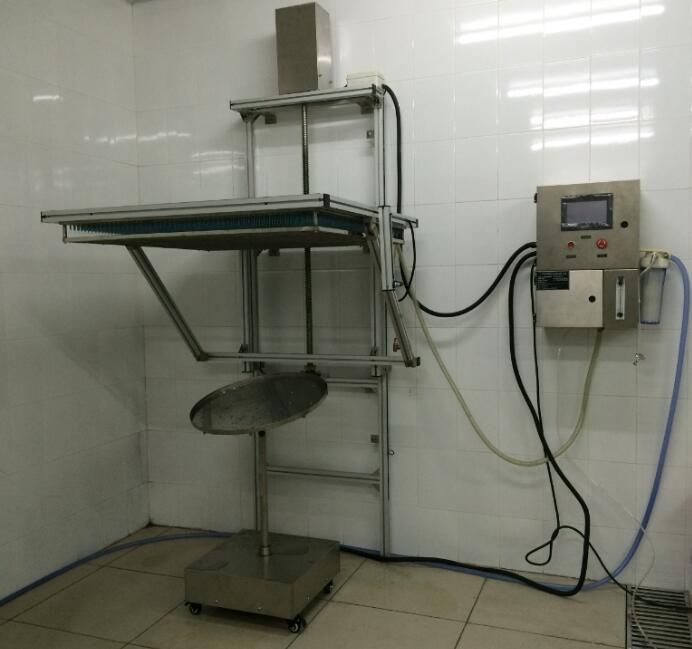

    the use of four pillar-type structure bracket fixed on the wall

    Dimensions

    L950mm * W1000mmn * H2300mm

    power

    220V, 1phase



    The main configuration:

    Rack aluminum profiles
    Rail SU304 # stainless steel
    Electric hoist AC220V
    Vacuum drip board SU304 # stainless steel made

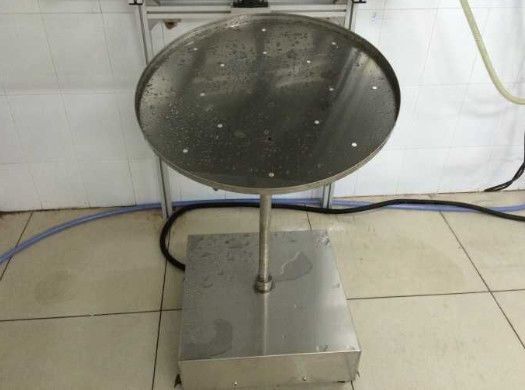

    Turntable SU304 # stainless steel made
    Drip needle holder brass material
    Drip needle Φ0.4mmSU304 # stainless steel
    PLC controller
    7-inch touch screen color
    Turntable stepper motor
    Leakage switch 20A, 2P
    Low voltage electrical /
    Relay DC24V
    Switching power supply 24V, 50W
    Glass panel flowmeter LZT-15
    Filter 10-inch single-stage water purifier
    Pipe fittings PVC + SU304 # stainless steel
    Needle nozzle needle SU304 # stainless steel
