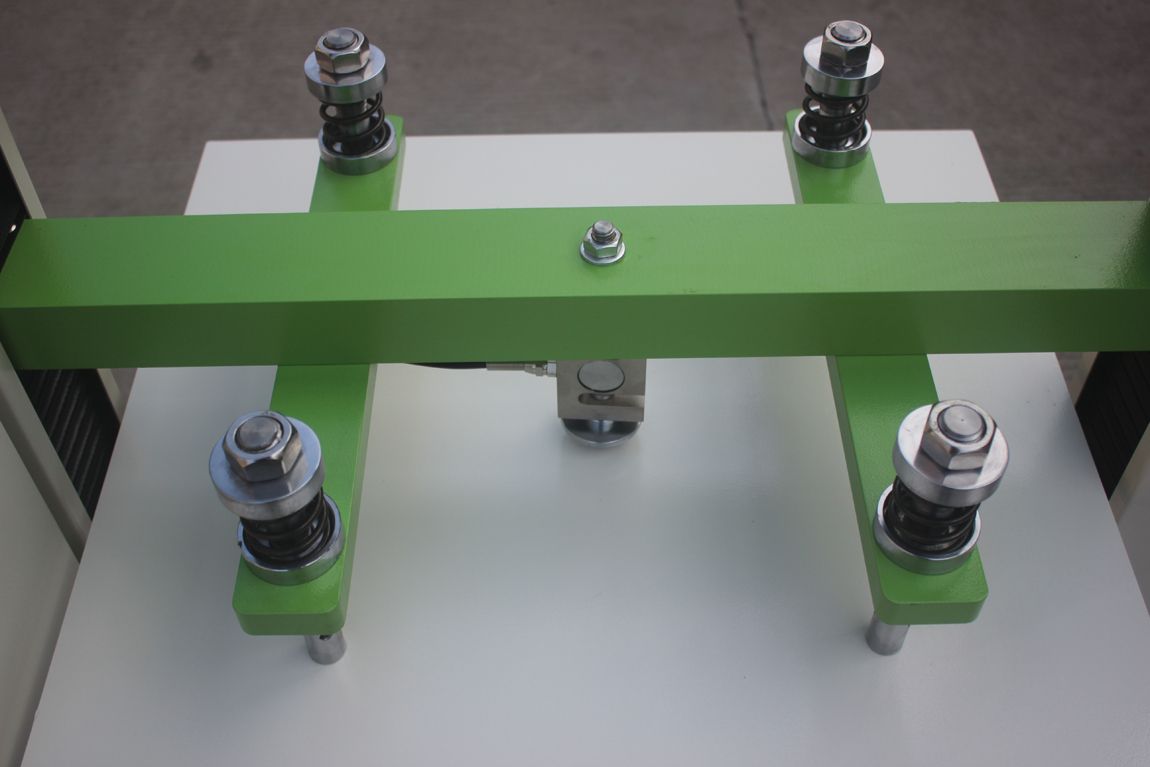

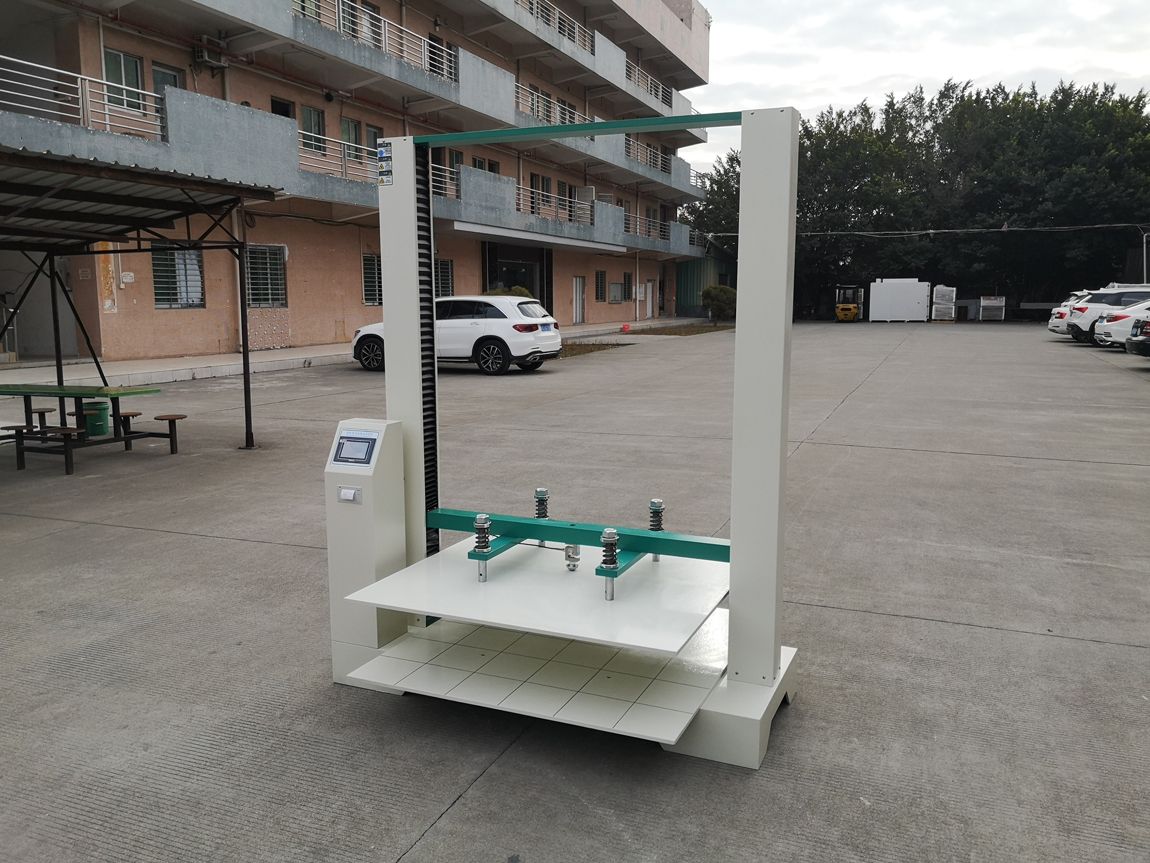

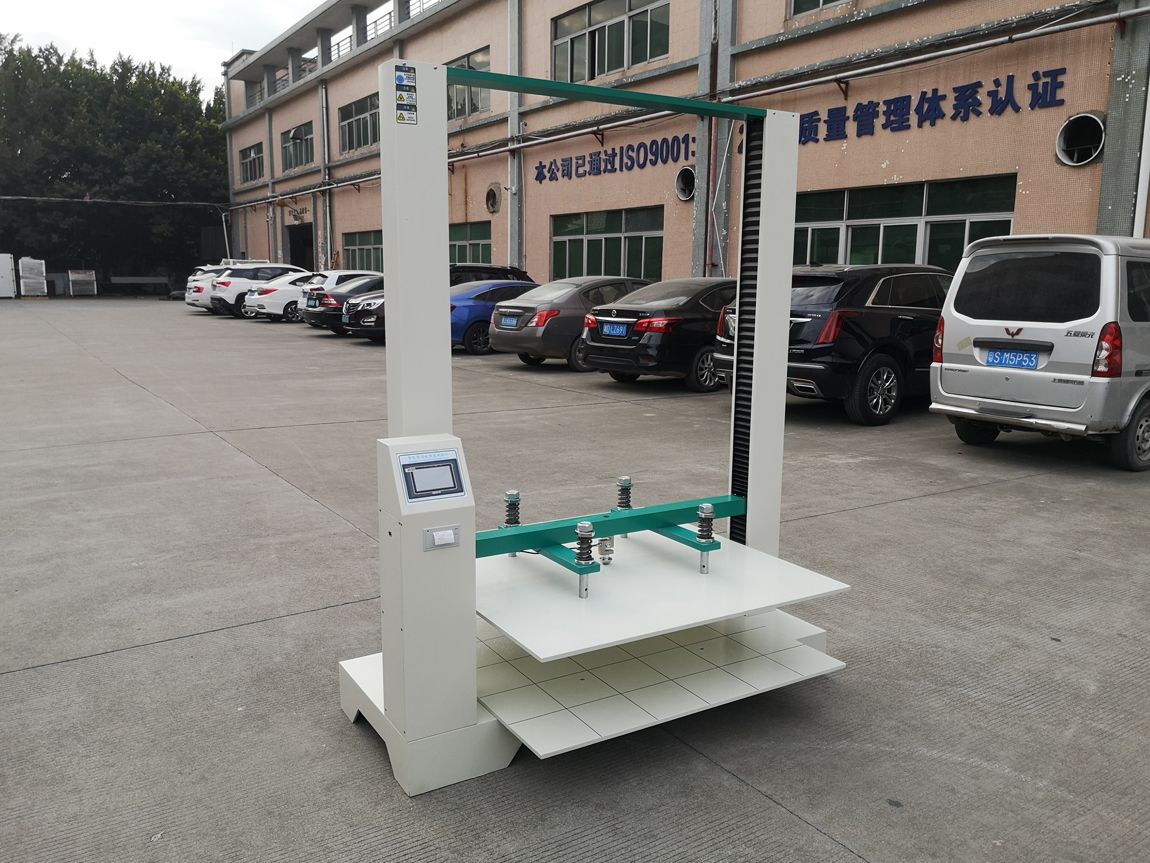

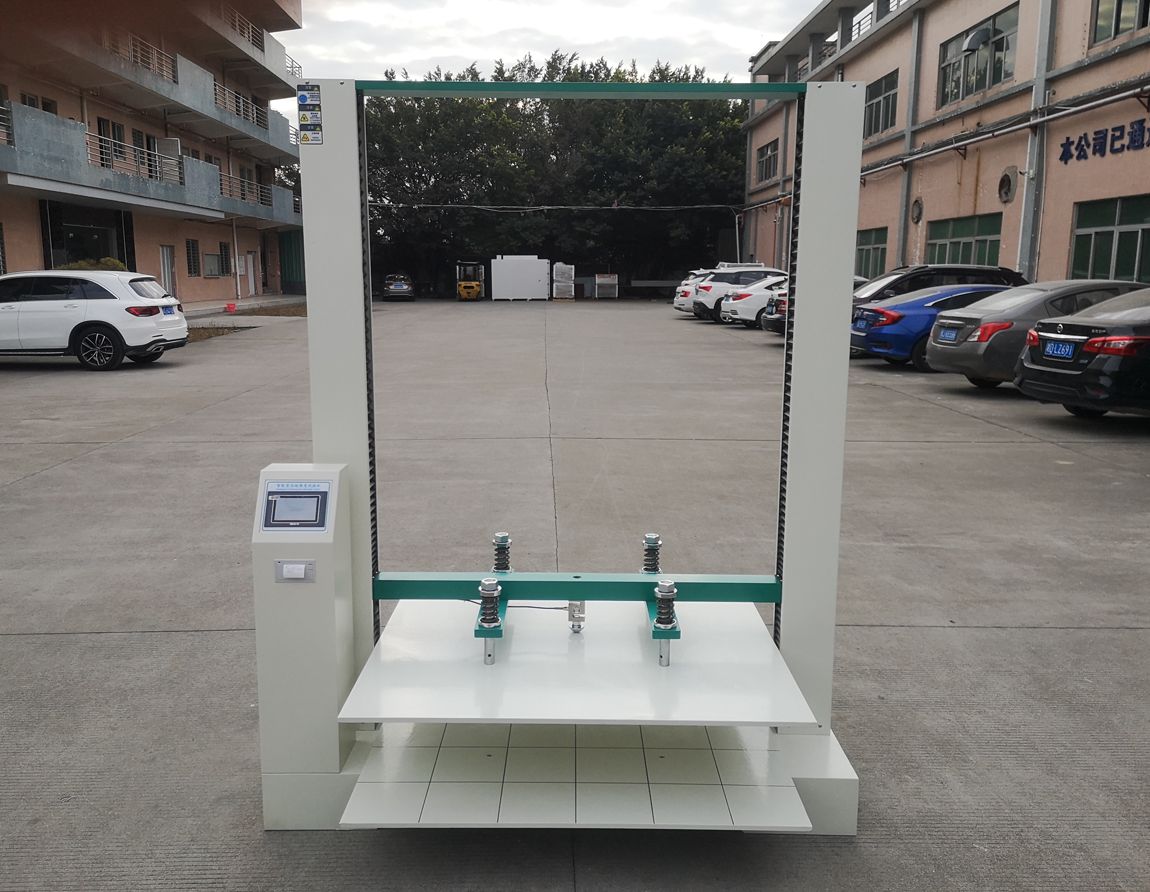

  • Intelligent Compressive Strength Testing Machine

    Intelligent Compressive Strength Testing Machine

    Intelligent Compressive Strength Testing Machine

    Intelligent Compressive Strength Testing Machine

  • detailed description
  • Intelligent Compressive Strength Testing Machine



    Product Description:

    It is the basic instrument for testing the compressive strength of corrugated boxes (i.e., packaging testing equipment), which is suitable for the compressive strength test, compliance test and stacking strength test of all kinds of corrugated boxes.



    Product features:

    1. After the test is completed, there is an automatic return function to automatically judge the crushing force and automatically save the test data.

    2. Three settable speeds, all-Chinese LCD display interface, and various units to choose from.

    3. Relevant data can be input and the compressive strength can be automatically converted, with the packaging stacking test function; The power and time can be set directly, and the machine will stop automatically after the test is completed.

    4. Three working modes:

    Strength test: It can measure the maximum pressure resistance of the box;

    Fixed value test: the overall performance of the box can be tested according to the set pressure;

    Stacking test: Stacking tests under different conditions such as 12 hours and 24 hours can be carried out according to the requirements of national standards.



    Conform to the standard:

    GB/T 4857.4-92 pressure test method for packaging and transportation packages

    GB/T 4857.3-92 static load stacking test method for packaging and transportation packages



    Technical parameters:

     Capacity selection  0~2T (can be customized according to customer requirements)
     Accurate grade  Level 1
     Control mode  Microcomputer control (optional computer operating system)
     Display mode  Electronic LCD display (or computer display)
     Unit switching  kgf,gf ,N,kN,lbf
     Unit stress switching  MPa,kPa,kgf/cm2,lbf/in2
     Displacement unit  mm, cm, in
     Force resolution  1/100000
     Display resolution  0.001N
     Machine schedule  1000mm
     Pressure plate size  1000*1000*1000mm
     Test speed  12.5mm/min
     Software function  Chinese-English language exchange
     Shutdown mode  Overload stop, emergency stop button, automatic stop for specimen damage, automatic stop for upper and lower limit setting.
     Security equipment  Overload protection, limit element protection device
     Power machine  AC variable frequency motor drive controller
     Mechanical system  High precision ball screw
     Power Supply  AC220V/50HZ~60HZ 4A
     Machine weight  About 350KG
     Performance characteristics  You can set the percentage fracture value, automatically stop the machine, enter the menu to select 4 different speeds, and get 20 results. You can view the average value of all test results and single results.



    GB/T 4857.4-92 Intelligent Compressive Strength Testing Machine 0
