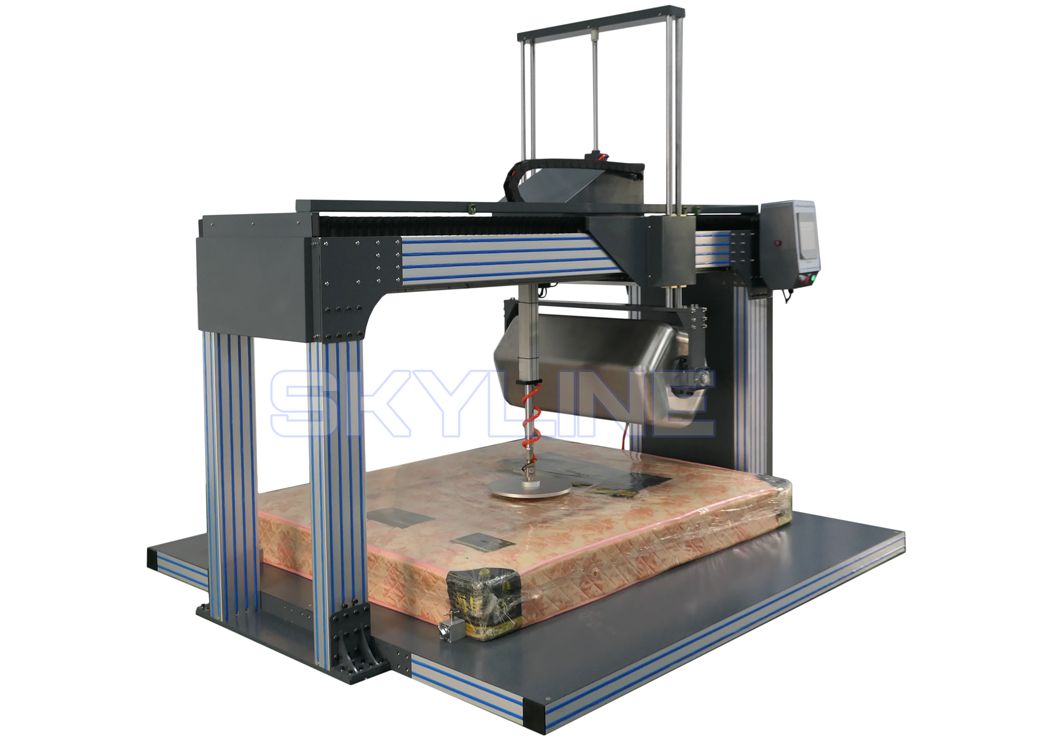

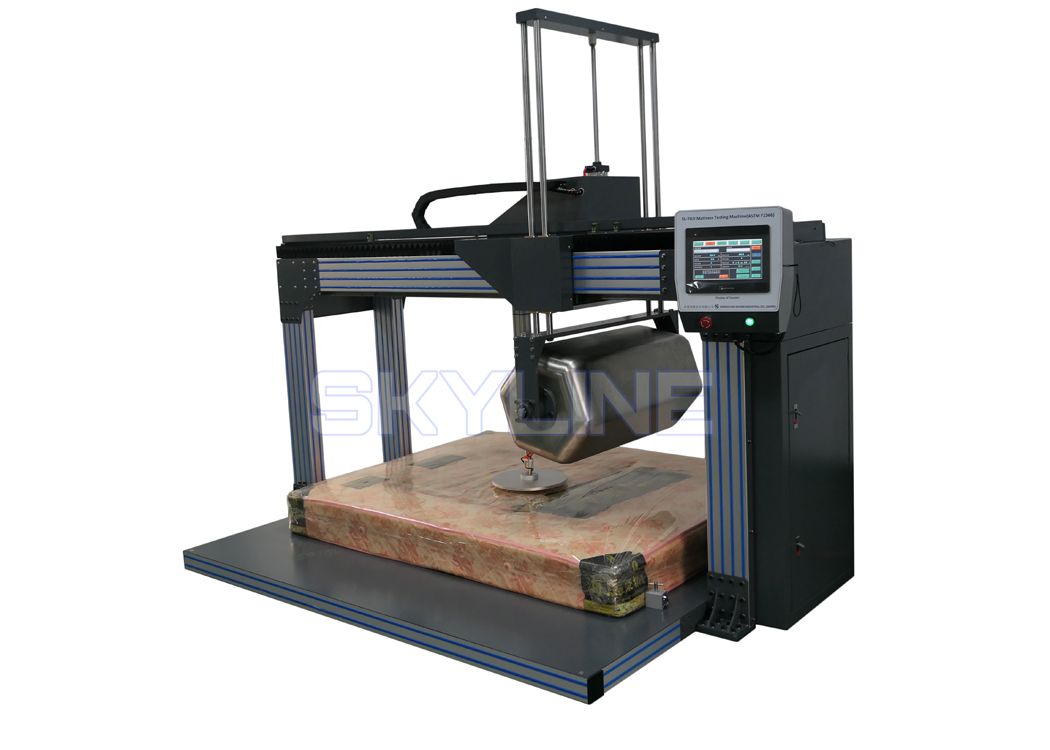

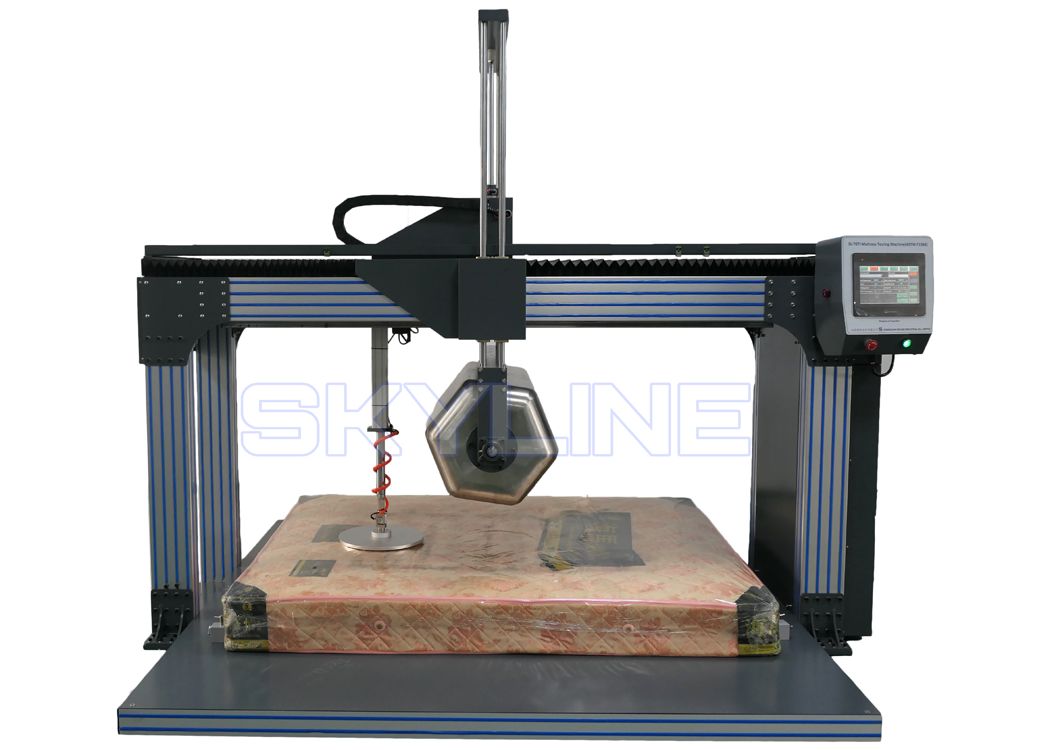

  • ASTM F1566 Integrated Mattress Testing Machine

    ASTM F1566 Integrated Mattress Testing Machine

    ASTM F1566 Integrated Mattress Testing Machine

    ASTM F1566 Integrated Mattress Testing Machine

  • detailed description
  • ASTM F1566 Servo Motor Mattress Integrated Testing Machine



    Product information

    To determine the durability of any type of mattress and boxspring unit (regardless of the materials) by simulating long term use condition.



    The Rollator type mattress durability tester determines the quality of support of mattress and box spring unit after repeatedly impacts and cyclic movement applied on the surface, Using the cylinder or hexagon to simulate the body of human continuously roll on the mattress.



    Technical parameters

    Product Information
    To determine the durability of any type of mattress and boxspring unit (regardless

    of the materials) by simulating long term use condition.



    The Rollator type mattress durability tester determines the quality of support of mattress and box spring unit after repeatedly impacts and cyclic movement applied on the surface, Using the cylinder or hexagon to simulate the body of human continuously roll on the mattress.



    Feature



    1. The whole machine frame made of high quality aluminum, with smart and elegant shape

    2. Delta brand PLC and Servo Motors

    3. Machine configuration two motors, one for the vertical direction of the roller, and the other is responsible for the horizontal direction of the drum drive, the two motors are used in DELTA servo motor

    4. Machine configuration alarm device, indicating the safe operation

    5. Electric lifts the Roller, easy to operate.





    Technical parameters



    6. Firmness Rating



    The loading platen 344 +/-5 mm diameter, 1mm radius bottom edge
    The loading speed 20 ~ 300mm/min
    Test run 500mm
    Capacity 200kg
    The loading wheel position adjustment About 300mm



    7. Durability Test

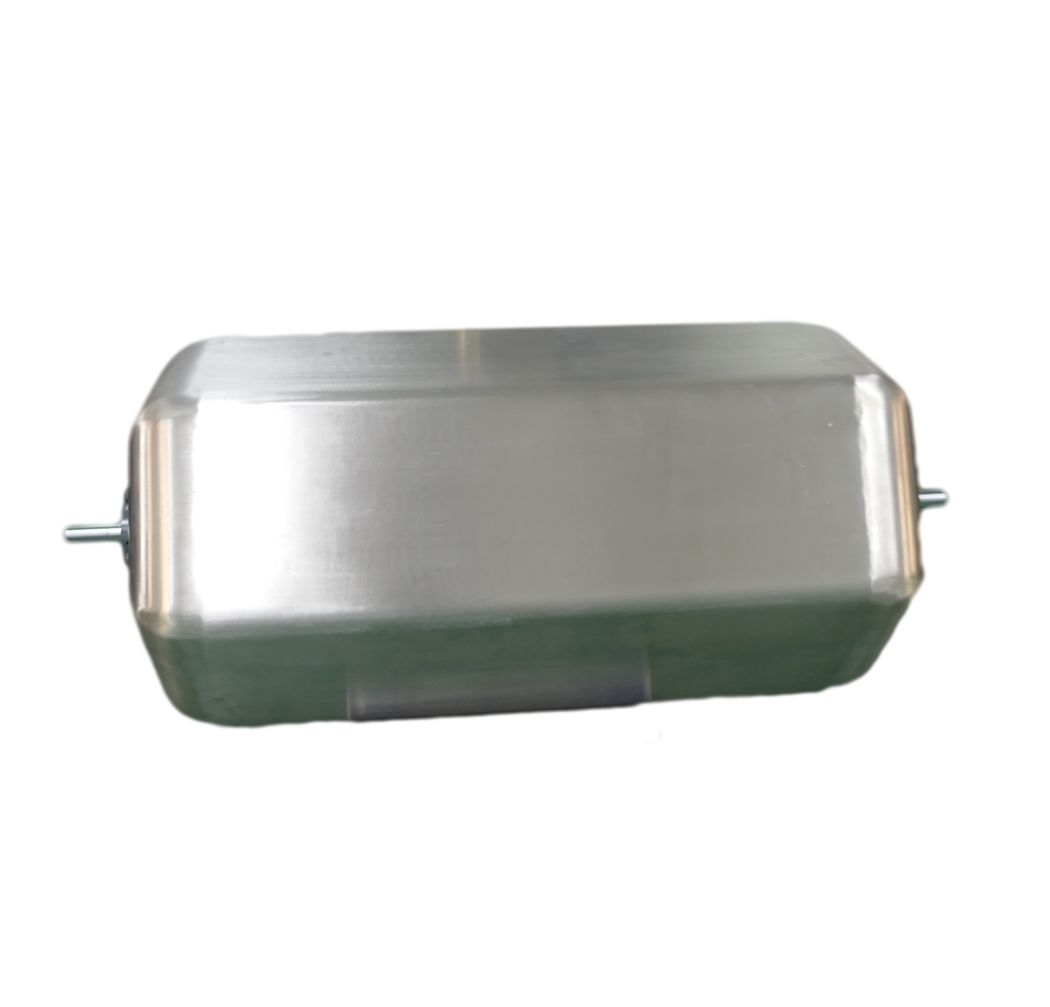

    Hexagonal wood barrel (ASTM F1566) 109kg, Length 36±3in(915±75mm)
    Maximum size of mattress 2.2m×2.5m
    Test speed 0-20r/min
    Control method PLC+ touch screen
    Dimension 3000mm×1510mm×2010mm
    Power AC220V±10%, 50/60Hz, single phase
    Accessory One Hexagonal barrel, Cylinder weight
    According to different mattress to adjust the rolling stroke (adjust the limit switch position)
    Low coefficient of friction guide, ensure full drum weight on the mattress.
    LCD Touch Screen display provides easy control and setting



    Height measurement

    1) Accuracy: ±0.5mm;

    2) Height measuring pad: measuring the surface is a smooth and rigid rigid cylinder;

    3) Measuring the diameter of the block: 100mm, chamfer R10;

    4) The force application speed of the pad: 100±20mm/min;

    5) Vertical downward force: Apply 4N force, at this time, the circular pad measures the distance between the lower surface of the surface and the flat surface as the mat surface height of the mattress;

    Measuring height: the height of the initial mat surface of the mattress is 100 times, and after 29,900 endurance tests, the height of the mat surface is measured separately;

    Altimeter system: Set the force value through software, apply the speed vertically downward, and directly link with the PLC touch screen.



    Testing Standards
    ASTM F1566



    Features

    PLC controller with large 7 in colorful touch panel

    Motor: servo motor, precise force control

    Test procedure can be programmed on the panel

    Automatically stops after preset cycles completed

    Emergency stop buttons

    Over moving limit protection

    Roller softly contacts the surface of the mattress



    The mattress durability tester is used for

    Boxspring Mattresses

    Innerspring Mattresses

    Polyurethane Mattresses
