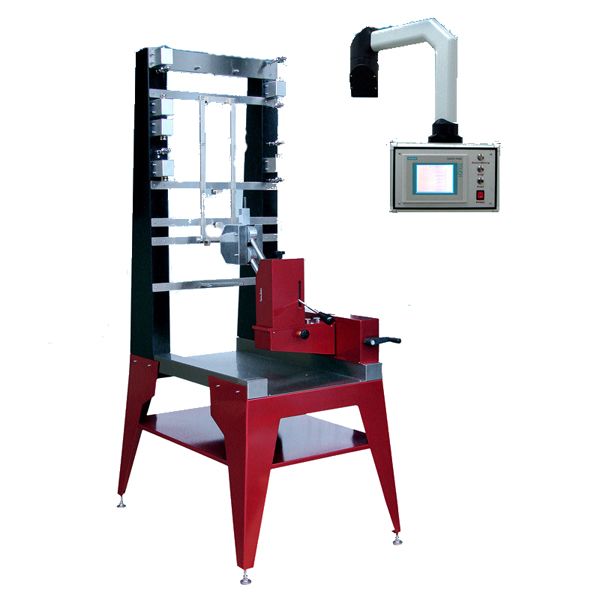

  • Multi-function Combustion Tester

  • detailed description
  • Touch Screen Multi-function Combustion Tester for Detecting Flammability

    Product introduction

    The multi-functional combustion tester is mainly used to detect the flammability of vertical vertical textiles and components at the edge and bottom edge, and also to detect the fabric and fabric combination of pajamas, the flame retardant performance of curtains and curtains, protective clothing fabrics; Many domestic and international testing standards.

    Technical parameters

    1.Floor-standing base, no need to be placed on the console, convenient for operators to use;
    2.Large combustion frame for hanging a variety of test pin frames to meet different test standards;
    3.Equipped with 7 test needle frames and 1 set of stainless steel sample holders to meet national testing standards;
    4.The roller screw adjusts the burner forward and backward, and the burner height can be adjusted by the knob;
    5.One-button ignition method, using spark ignition;
    6.Butane and propane combustion gases can be programmed;
    7.The flame angle indicator disc can display the operating angle;

    Product Feature and Application

    1.The host comes with a flame height gauge to detect the vertical flame height;
    2.Stepper motor drive mode, which can drive the burner movement;
    3.The ignition device has an angular accuracy of 0.18 degrees and is accurately positioned;
    4.The host adopts an outdoor operation mode to protect testers' safety;
    5.Support arm system, which can rotate and adjust the control box for easy operation;
    6.The touch screen operation mode is convenient for the operator to use;
    7.1 Human-machine interface and PLC control mode, pre-made national test standards.
    Application:The multi-functional combustion tester is mainly used to detect the flammability of vertical vertical textiles and components at the edge and bottom edge

    Product Details

    Standards:
    Other test standards: 95/28/EC European automotive interior fire test
    BS British Standards Association: BS 5438: 1976, BS 5438: 1989
    ISO International Organization for Standardization: ISO 6940:2004, ISO 6941:2003, ISO 10047:1993
    EN European Standard: CSN EN 1101:1995, CSN EN 1102:2016, CSN EN 1103:2005, CSN EN 13772:2011, CSN EN 14878:2007
    GB China Standard: GB/T 5456:2009, GB/T 8745:2001, GB/T 8746:2009
    Dimension:650mm (W) x 1200mm x (H) x 900mm (D)

    Weight:67kg


    Installation requirements

    Power requirements: 220 V, 5 Amps
    Ambient temperature: 10 ° C to 35 ° C
    Working gas: butane or propane
