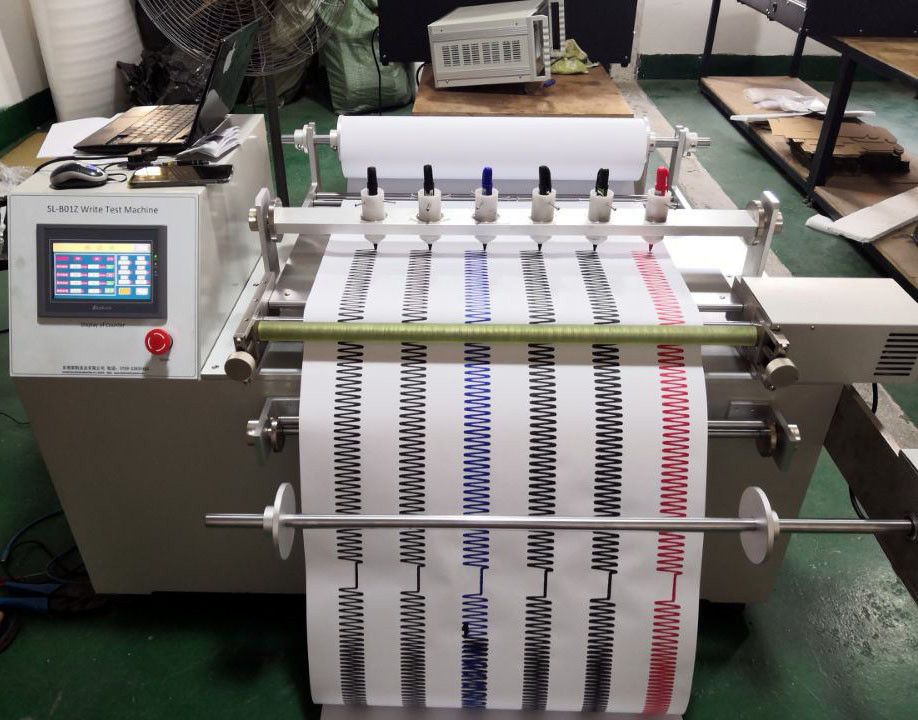

Lab Testing Equipmen Zig Zag Writing Testing Machine

Product introduction

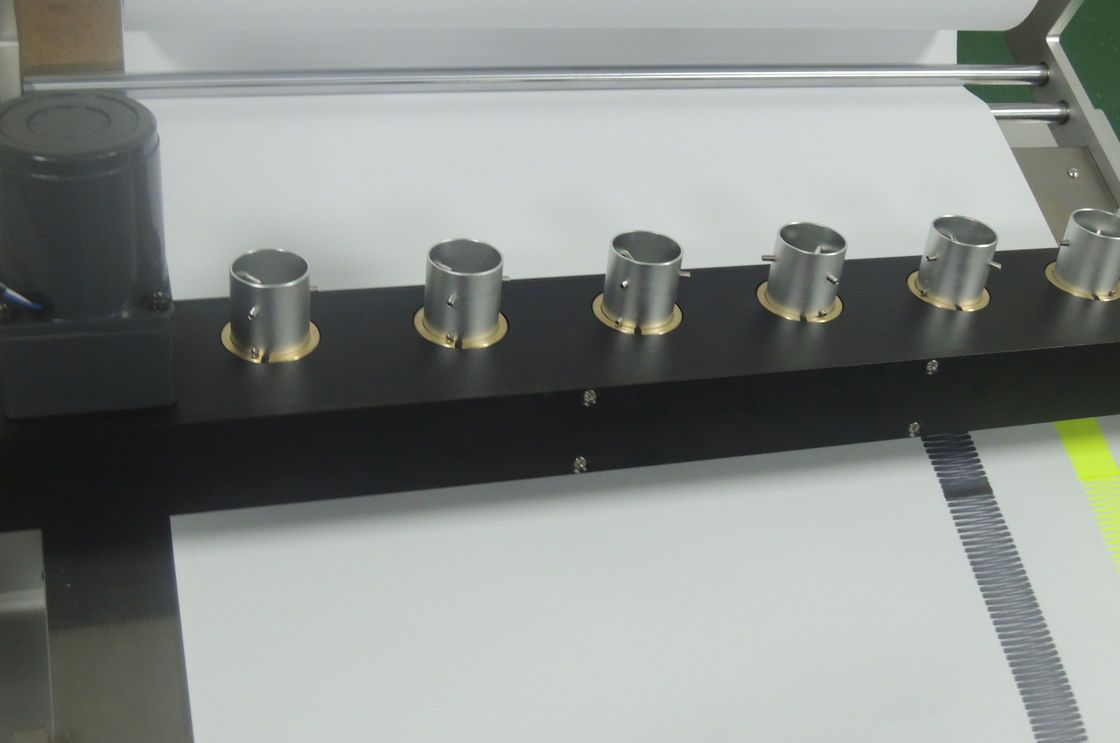

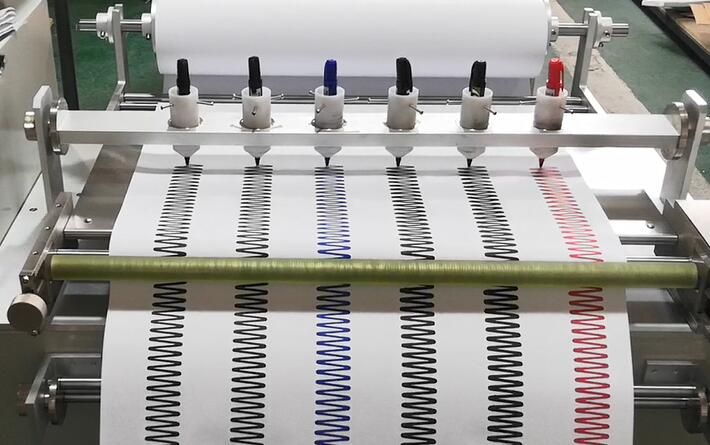

Load weight on the refill/pen,Make pen and writing paper face up to 60 and 90 tilt angle with a certain speed to write Z. Can test the refill, test bulk pen just replace the fixture can test 6 pcs pens one time, with the function of automatic withdraw the test paper.


Technical parameters
Paper movement Speed:adjustable 0-140 cm/min revolutions per minute
Writing Plate Speed: Adjustable
1m/min -10m/min
Writing Angle: 60°- 90°
Collet weight :50+/-0.5 grams
Refill Rotation In ON Condition - Refill rotation at 1-3 rpm
Marker Diameter : 35mm Max
Zig Zag/Holder Bar speed :1.375 inches Wide (1cycle=2.75inches)
Sample Size 6 Nos

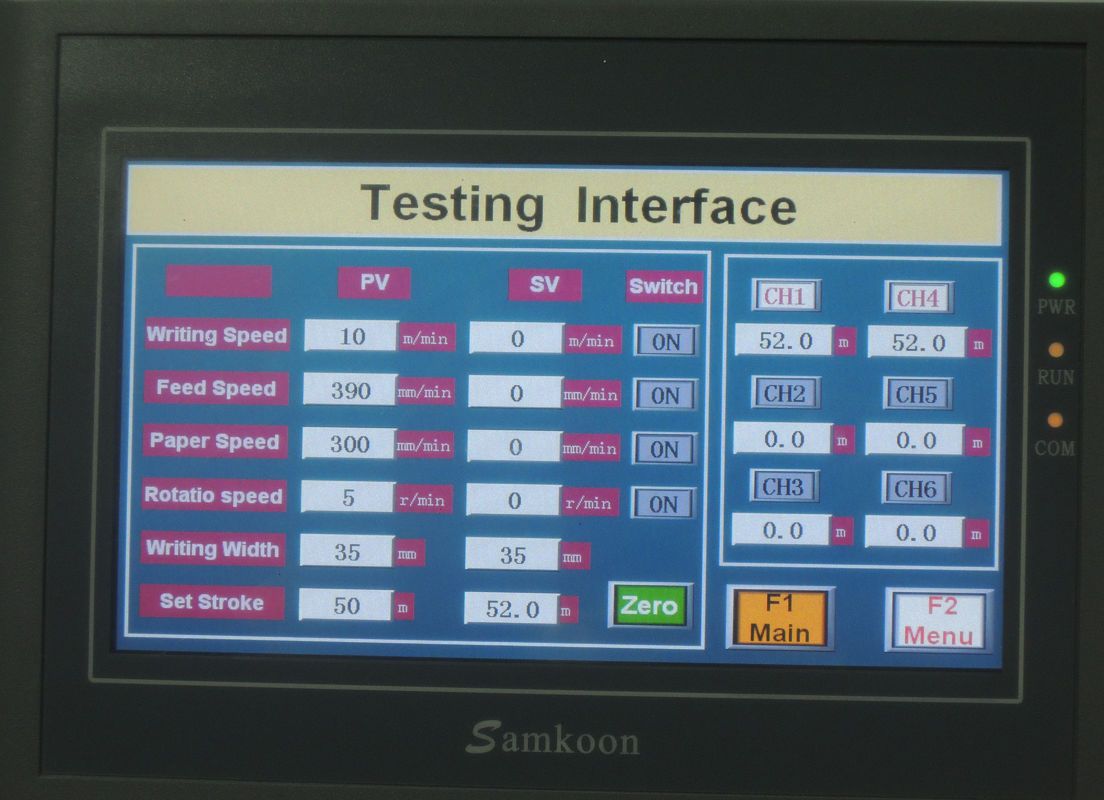

Motor:Servo motor with programmable
Test paper:two rolls
Power:AC220V,50HZ or 110V 60HZ
