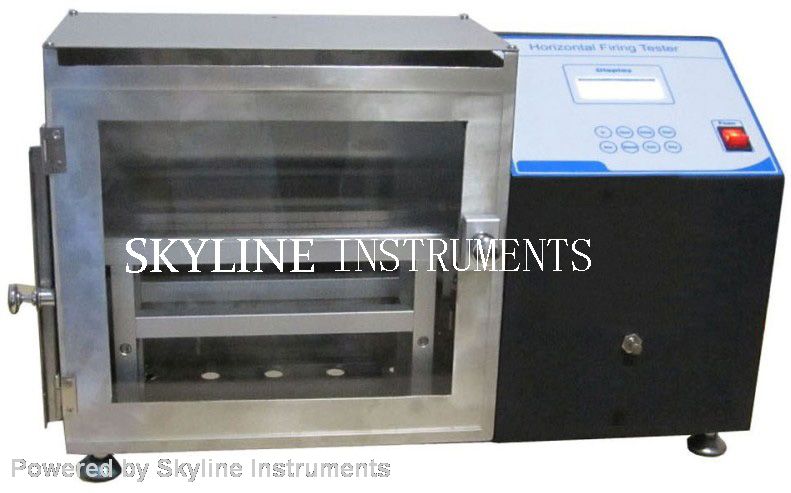

- Horizontal Flammability Tester
Horizontal Flammability Tester, to determine the flammability of textiles and automotive interior. Horizontal flammability tester complies with ISO 3795, ASTM D5132, FMVSS 302, etc.
Application
Horizontal Flammability Tester, to determine the comparative burn rates and burn resistance of textiles, particularly those for automotive interior use. Horizontal flammability tester is safe and easy to operate, Comprises draft free stainless steel cabinet with observation window, sample holder and door mounted burner.
Automatic gas and timing control system including solenoid control gas valve and automatic ignition timer and controls.
Specifications
Fire nozzle diameter: 9.5mm
Fire height: 38mm+/-2
Sample clamp: 360x100mm
Interior Dimension: 330x50mm
The sample below: 25mm Pitch between metal wire is 25mm
Marked line: Starting point 38mm/End point 292mm from Igniting point
Distance from Nozzle to Sample: 19mm
Standards
ISO 3795,FMVSS 302,DIN 75200,SAE J369, ASTM D5132,JIS D1201,BSAU 1690

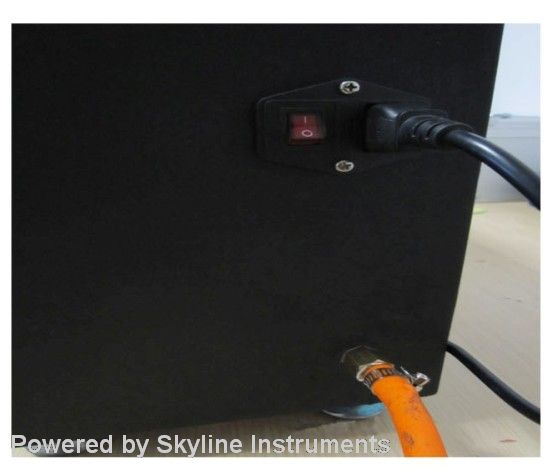

Power 220 /110 V 50/60 Hz 2 A
Weight 18 Kg
Dimension for the flammability chamber 381mm×203mm×356mm
Dimensions 460×200×400 mm(LxWxH)
