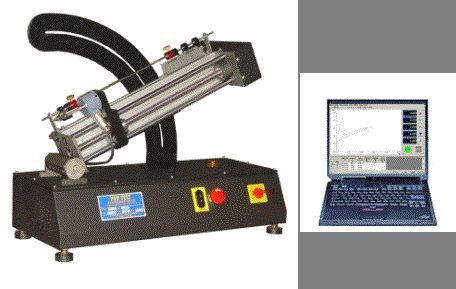

SL-T809 Adjustable Angle Servo Tensile Testing Machine
Description
Angle adjustable 0-90 degrees, for 1 kg / 2 kg / 5 kg / 10 kg / 20 kg / 50 kg tensile, peel strength and extension of test.
Technical parameters
Power units
KG, N, LB, g
Capacity to choose
1 kg / 2 kg / 5 kg / 10 kg / 20 kg / 50 kg
Loading precision
less than 0.5%
Power analytic
1/10000; Test range: 200 mm (excluding fixture distance)
Effective space
120 mm diameter scope; Motivation: servo motor
Test speed
5.1-500 - mm/minute
Set the computer; Fast automatic return button
automatically, the computer set speed
Outage way
upper and lower limit security setting, the emergency stop button, strength and elongation set program and specimen breakpoint sensor
Size
65 * * 28 and 56 cm
Weight
40 kg
Power supply
1 p, AC200 ~ 240 v, 50 ~ 60 hz
The machine structure
ball screw, when gauge belt, linear slider, fine aluminum alloy bar; Clamp (and in accordance with the contract) of choose and buy: equipped with basic jig 1 set (can choose and buy other clamp or pneumatic); Computer online (to buy) : computer online equipment (line 1, decryption card 1, 1 program CD) (P4, please bring your own computer, Windows XP)
