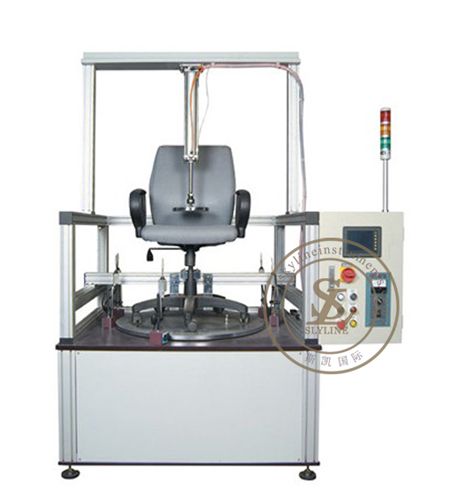

  • SL-T03 Chair Swivel Testing Machine

  • detailed description
  • Product Information
    Chair Swivel Testing Machine
    Application
    This test applies to all types of chairs with a swivel seat.
    Purpose of Test: This machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling.
    Specifications
    According to test Standard: BIFMA X5.1-2002, Test No. 9
    1. Applicability: This test applies to all types of chairs with a swivel seat.
    Purpose of Test: this machine is designed to evaluate the ability of a chair to withstand stresses and wear caused by repeated swiveling.
    2. Machine Mechanism:
    * Loading weight : 102kg (225lb)
    * Cycle rate: 5 ~ 15 rotations per minute.
    * Test cycle: 120,000 times.
    * Counter: 999,999
    * Loading weight is adjustable.
    3. Features:
    . Safety protection – automatic detection of breakdown point while the test specimen breaks.
    . Testing frequency can be pre-set. Once the pre-set level is reached, the machine stops automatically .
    Equipped with safety cover.
    High Precision – Forces are measured with a precision proportion valve via a pneumatic valve driver. The pneumatic output range is within 1kg/cm2 ~ 8kg/cm2 being able to maintain high precise constant force. Adopt high accuracy and precision pneumatic proportion valve to ensure test stabilities and low error.
    Selectable units of system – kg, N, lb
    Easy to Operate – The machine is operated via the corresponding POD(programmable operation display) system. One touch operation functions are easy for test. A test result will show as soon as the test is complete.
    Testing Standards
    DIN 4551, EN 1335, NEN 1812, BIFMA X5.1, BSI/BS 5459, EN 581-2
