  • Site:Home > Toys Safety Testing Equipment > Flammability Testing > SL-S17 Surface Flammability Tester
  • Product Images
  • SL-S17 Surface Flammability Tester

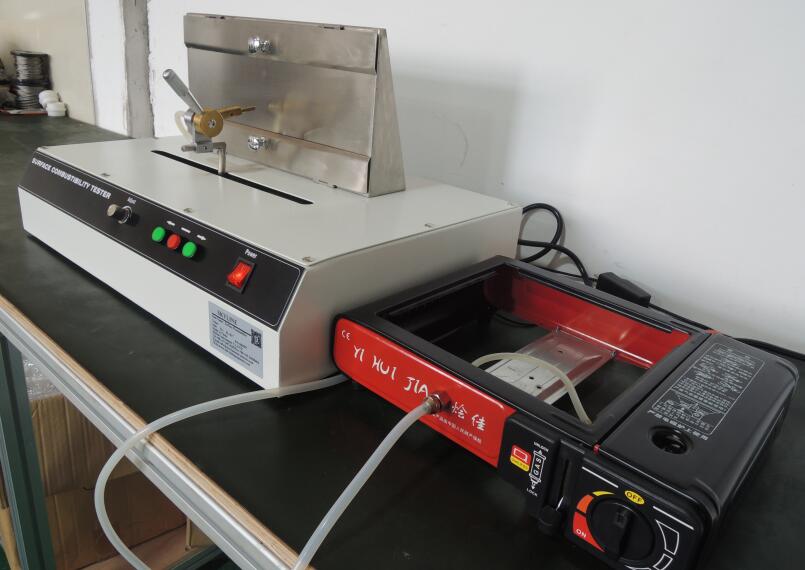

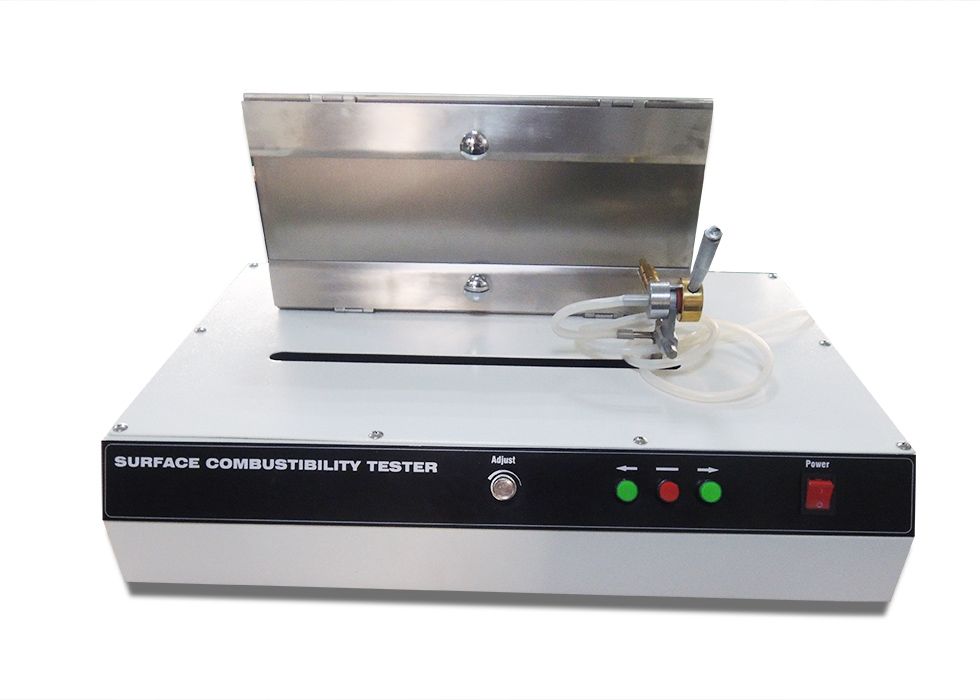

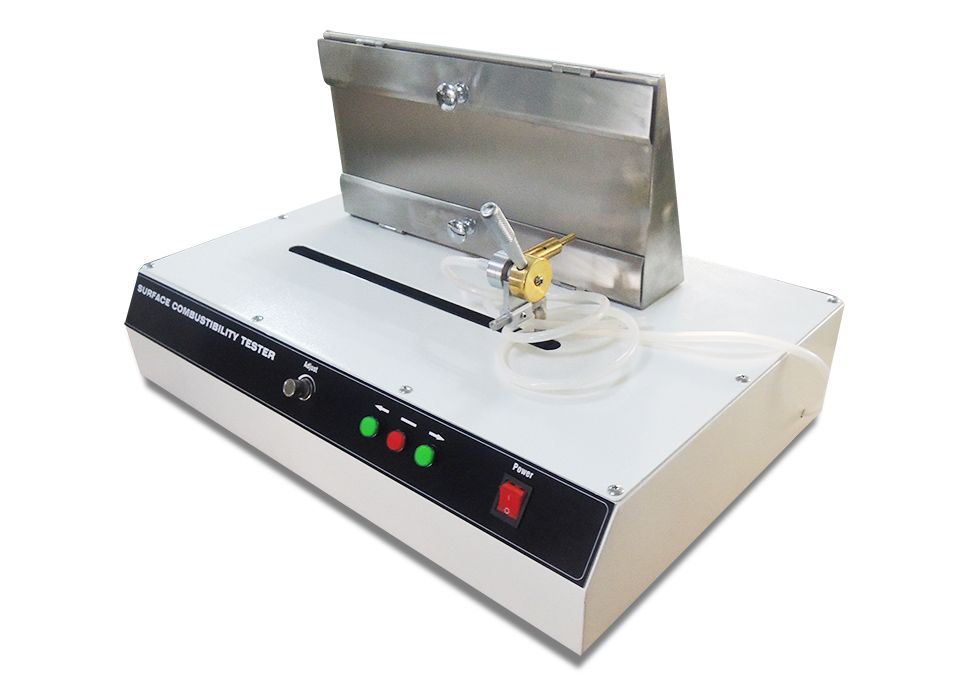

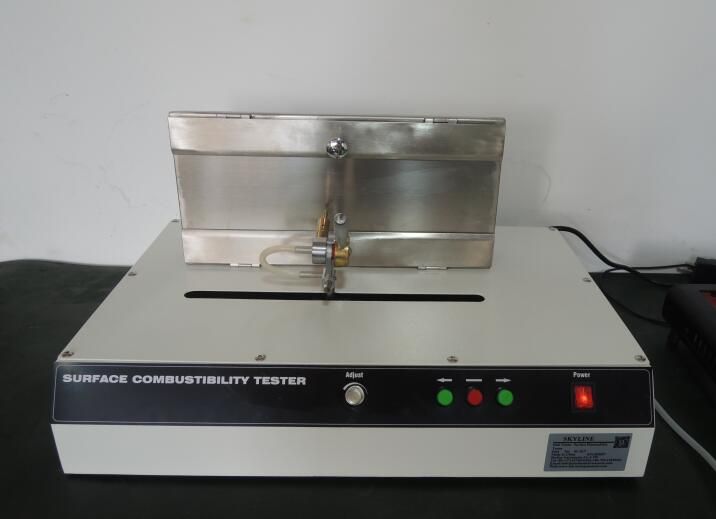

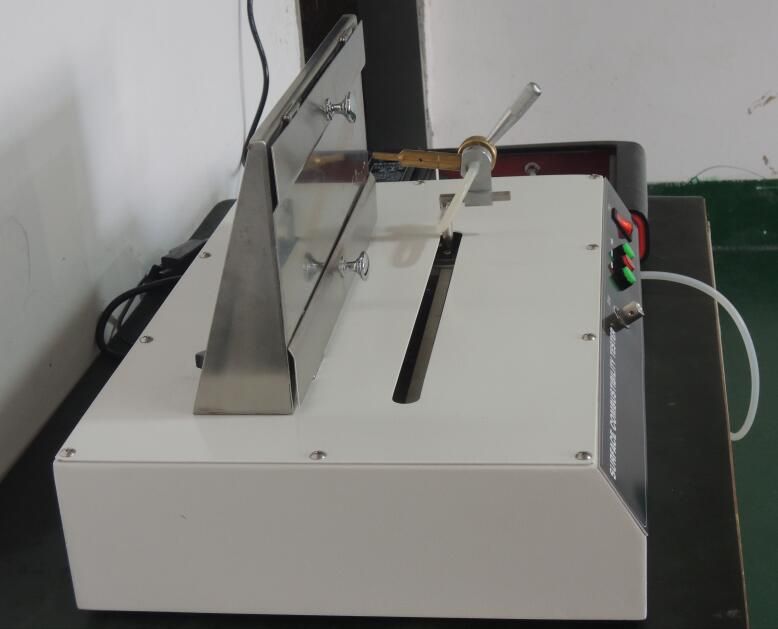

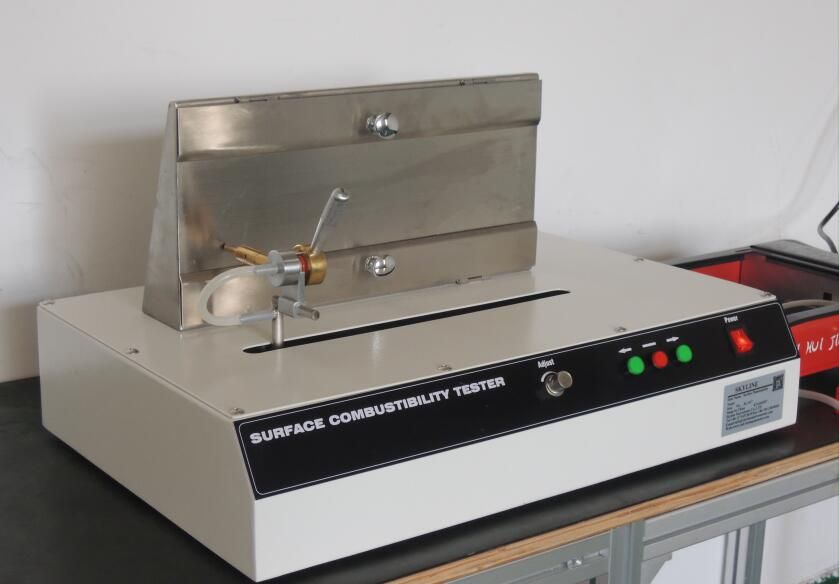

    SL-S17 Surface Flammability Tester

    SL-S17 Surface Flammability Tester

    SL-S17 Surface Flammability Tester

    SL-S17 Surface Flammability Tester

    SL-S17 Surface Flammability Tester

  • detailed description
  • Surface Flammability Tester


    Application

    The surface flammability Tester commonly used in the examination down or the superficial knowledge fabric's flammability, the flame spreads fast in the fabric surface, but the fabric Kieb structure is incombustible.



    Technical parameters

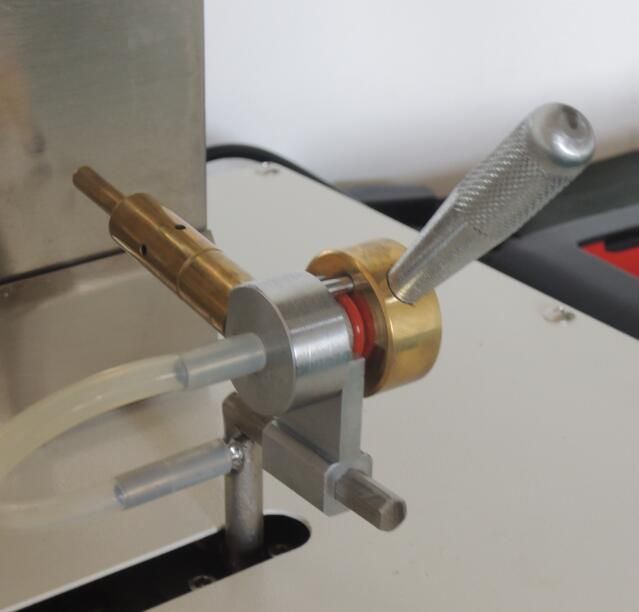

     Nozzle movement speed  150 millimeters/second ±5 millimeter/seconds (bidirectional), the nozzle moves
     The distance  ≥300 millimeter
     May test the fabric plush altitude   0-70mm; Flame altitude: 0-60mm continuously adjustable
     Dimension  600mm×400mm×370mm;
     Weight  20kg
     Power supply  AC220V±10%    50Hz; 50W



    Testing Standards

    BS 4569,   EN71



    How do you test for flammability?

    The materials are placed over a Bunsen burner either vertically or horizontally, depending on the specification. During a vertical flammability test, a material is observed for the length of time it burns after the igniting flame is removed, how much of the specimen burns and whether or not it drips flaming particles.



    What is the purpose of flammability test?

    Flammability testing determines how easily a material or finished product will ignite or burn when exposed to or used near fire or heat.
