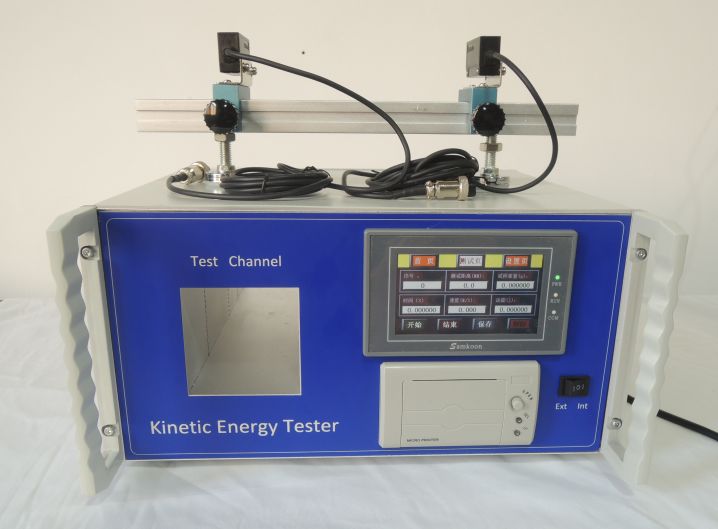

ISO 8124-1 Toys Test Equipment Toy Kinetic Energy Tester



Product Introduction Kinetic Energt Tester

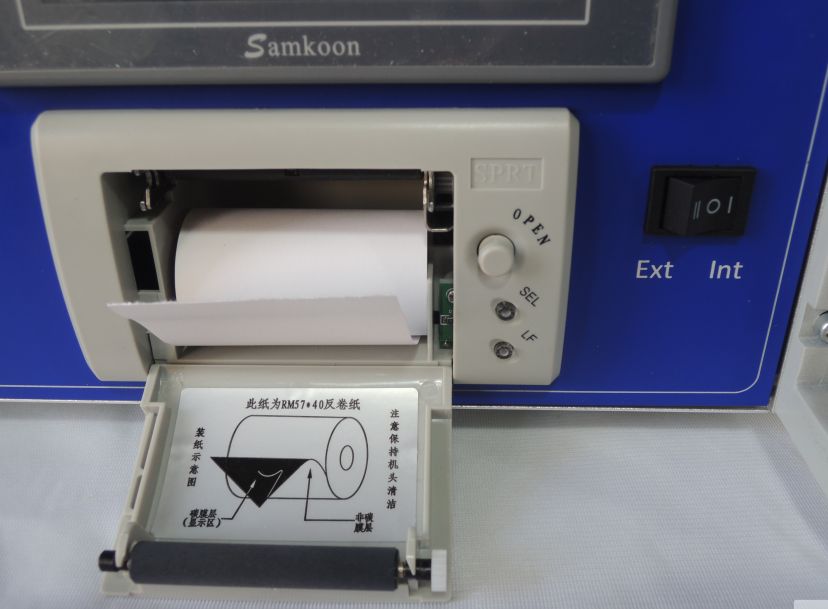

This device comes with a printer.

The Kinetic Energy Tester is used to test related materials from the launch of the toys and toys from the launch of a non-exclusive material that may be caused by the ejection of some, but not all of the potential risk of accidents.

To determine the size catapults kinetic energy of toys, the ejection of parts of the test apparatus through the tube or external testing of the components of the two sensors detect the ejection toy parts used away after a certain period of time, it has calculated the move Energy. The main instruments used for this test launch of baby toys or children's safety.


Principle
The sample is injected from the front of the test channel, and the instrument automatically captures the velocity of the object and automatically records the time difference between the front and back positions of the test. Based on the measured time value and the weight of the sample, the kinetic energy value of the sample and its hazard can be calculated.

 Standard

 EN71-1-2011

Technical Parameters

Sample test range	0.001g~1000,000.000g
Response time	10uS.
Speedometer time	1uS-15.000000S
Projectile size	maximum 50mm diameter Minimum 2mm diameter
Internal testing channel size	76mmx76mm
Sensors distance	100mm/152.4mm( internal sensor )
Adjustable	40mm - 400mm ( external sensor)
Direct-reading	Induction time, Test speed, Test power
Screen control	Touch Screen
Dimensions	350 x 420 x 210mm (L x W x H)
Weight	19kg
Standards	ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8

Special Selling point
1. Touch Screen
2. With print
3. The machine will automatically calculate the kinetic energy
4.Test save, can save data
5. Calibration function
6. Price concessions
7. Independent packaging
8. In stock, can be shipped immediately

The packing details is as below :
Dimension: 41cm*41cm*26cm(L×W×H)
Weight:8.6kg

Features
With the detection capability of bullets above 0.5mm diameter, no sensitivity adjustment is required, and it is fully automated. Enter the weight of the bullet,
Automatic calculation of bullet velocity, kinetic energy, number of times, average

Please review video of the  Kinetic Energy Tester operation as below link:

https://youtu.be/Rv64fly1kNI

Product analysis


Calibration
Calibration procedure,the simulator output signal port is well connected with the instrument signal interface.
Simulator time input Dial the dial to set the time. Input power connection +5V/1A.
Need to press in the touch screen
Start the test button. After everything is installed, press the simulator output switch.
The result will be Display the touch screen to see if the input time is the same as the displayed result. (+/-0.0001 second error)
