  • SL-BST013 Baby Stroller Test Machine

    SL-BST013 Baby Stroller Test Machine

    SL-BST013 Baby Stroller Test Machine

  • detailed description
  • EN1888 ​100 Degree Baby Stroller Turn Over Table Conforms



    Applications

    100 degree Baby Stroller Turn Over Test Table Testing purposes: the dynamic, the infant carrier or seat fixed on the frame of the device must not break down, loose or may not have any damage in the test or test.



    Test status

    Basket or seat mounted on the frame. Operation basket or seat fixed on the frame 200 fixtures. Load block A on the basket at the bottom of the class 0 car seat, or the B load block on the seat inside or F load block on the 0 + class car seat and fasten it to the center. If the car bed design can carry more than one child using multiple test load placed on each one in each child take a regional. Wheel or axle wagon is fixed in a rigid platform, this platform around the axis parallel to the ground. Slowly accompanied by the test load car clockwise and counterclockwise rotation of 100 degrees to enable the fixtures to test load transferred to the frame.



    Techncial parameters

     Standard  EN 1888/2012
     Adjustable angle  ±180 0
     Angle accuracy  0.50
     Time frequency  0 – 10 times / min
     Bench size  1500mm x 1500 mm
     Test duration  adjustable
     Controller  PLC program controller
     Bench load  > 100 Kg

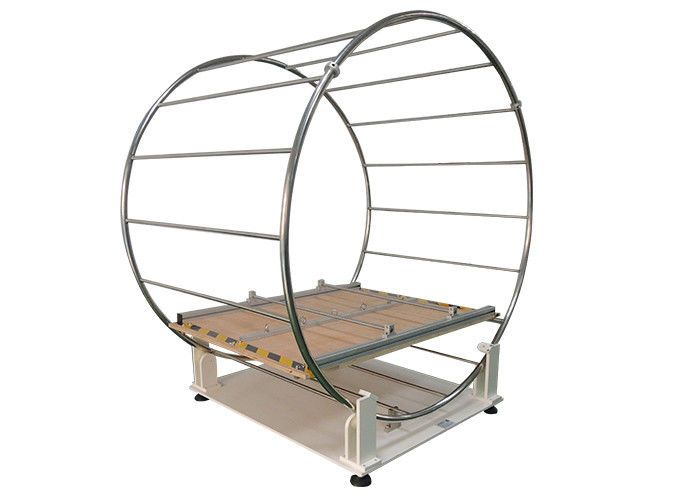

    Stainless Steel 100 Degree Baby Stroller Turn Over Table Conforms with EN1888 Standard
