Product information

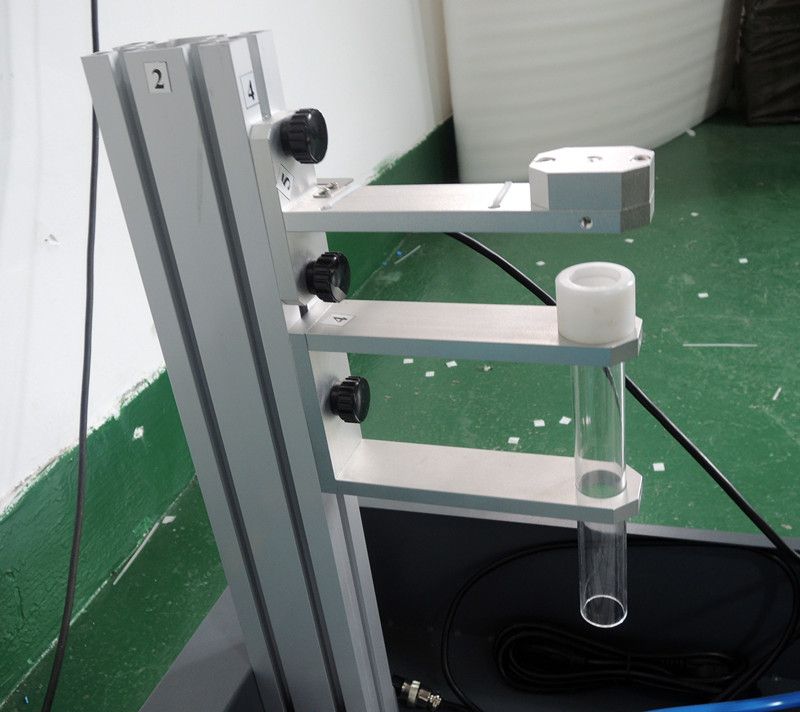

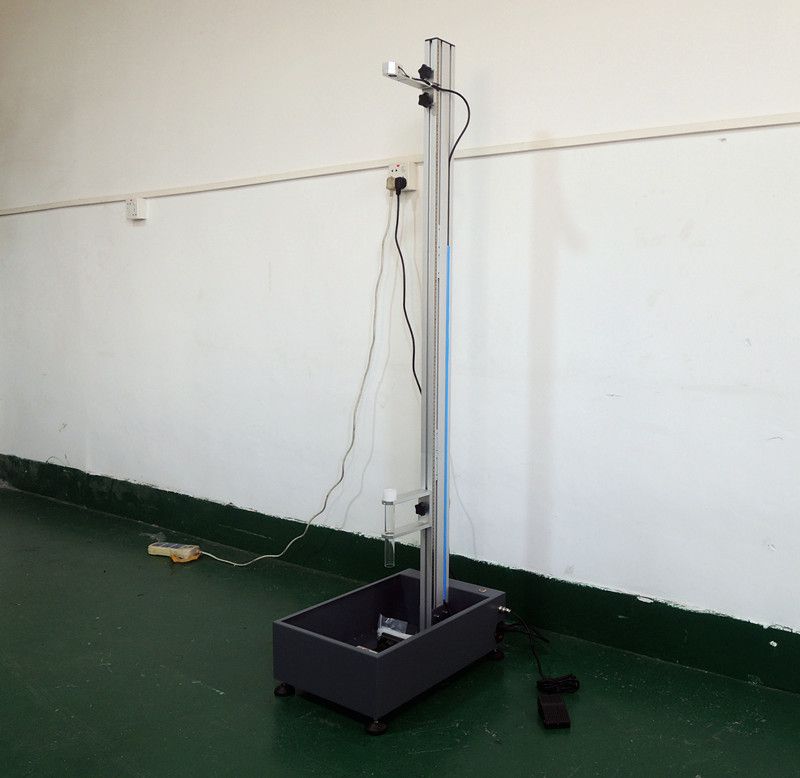

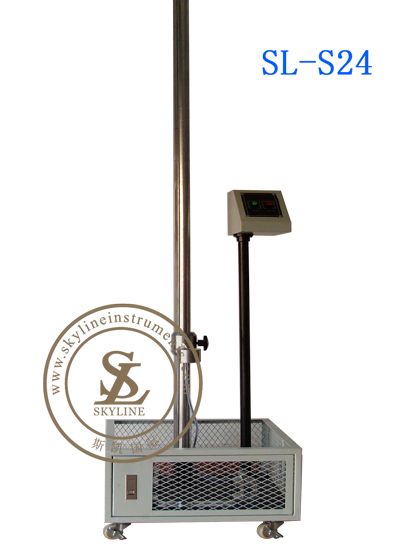

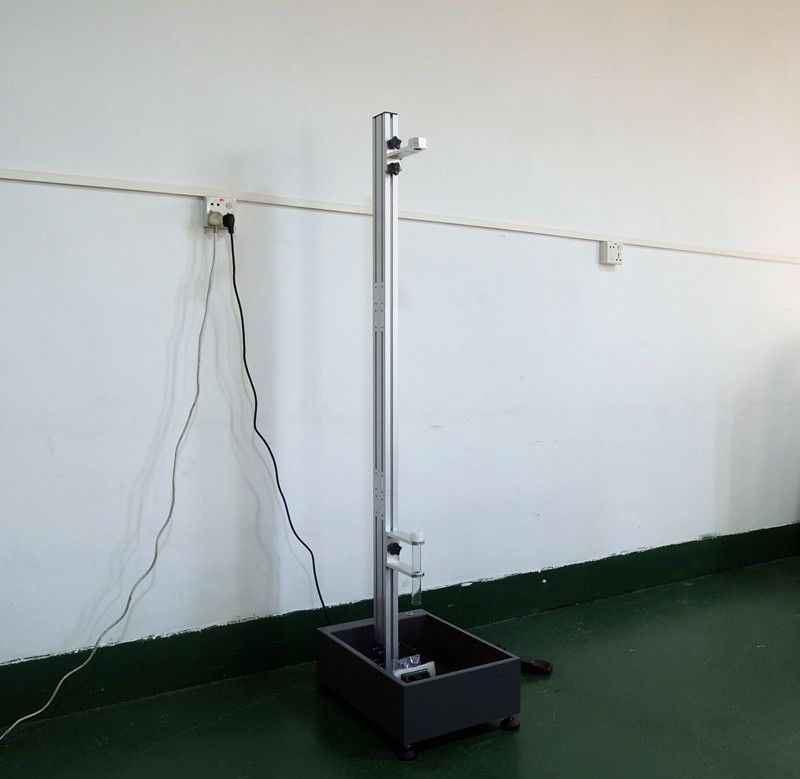

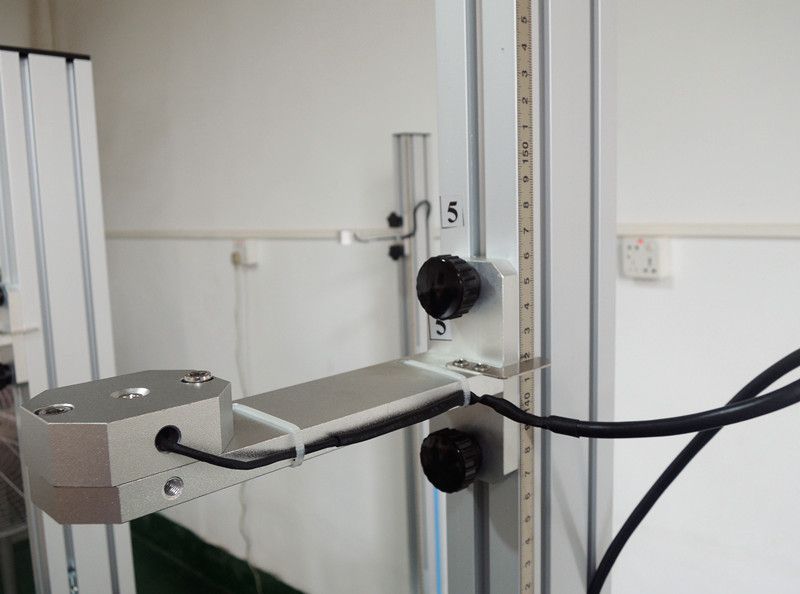

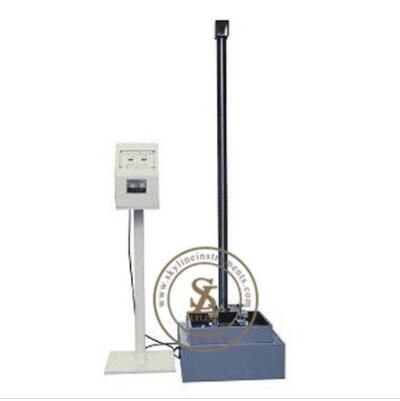

Drop ball impact tester is to test the impact endurance of brittle material like Plastic, Ceramic, Acrylic, and glass.Drop ball impact testing machines provides a standard steel ball which be adsorbed by magnetic force, and when cut off the power supply to magnetism, the steel ball would free dropping from a certain height to hit the specimen and then consider visually the quality after damage, to determine the grade of its impacting endurance.The weight and dropping height can be changed according to the material of specimen
Technical parameters
Highest hight | 2m |
Tup control method | DC electromagnetic control |
Weight of steel ball | 357,533,1042,2280g |
Size | 50×50×210cm |
Weight | About30kg |
Power Supply | 220V/50HZ |
Testing Standards
ISO 8124-1,EN71-1
NOTE:
1. Independent carton packaging
2. In stock
What equipment is needed for impact testing?
The impact test equipment can be provided with several options: Optical encoder for velocity and energy measurement (pendulum machines only) Instrumented striker system. Automatic pendulum return system (pendulum machines)
What is ball impact test?
The instrumented ball impact test, shown below, is designed to measure the viscoplastic response of a material. In the test, a stiff sphere (typically steel) of known mass and diameter is dropped from a known height onto a sample of the material.
