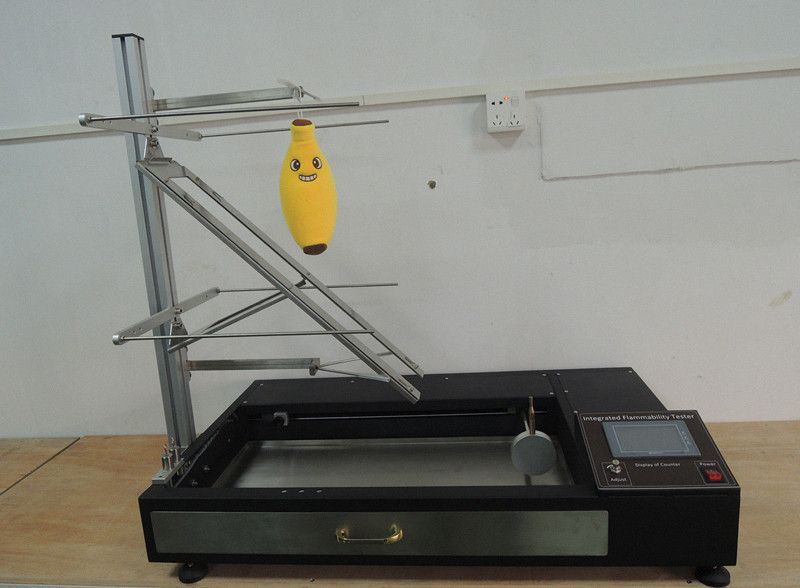

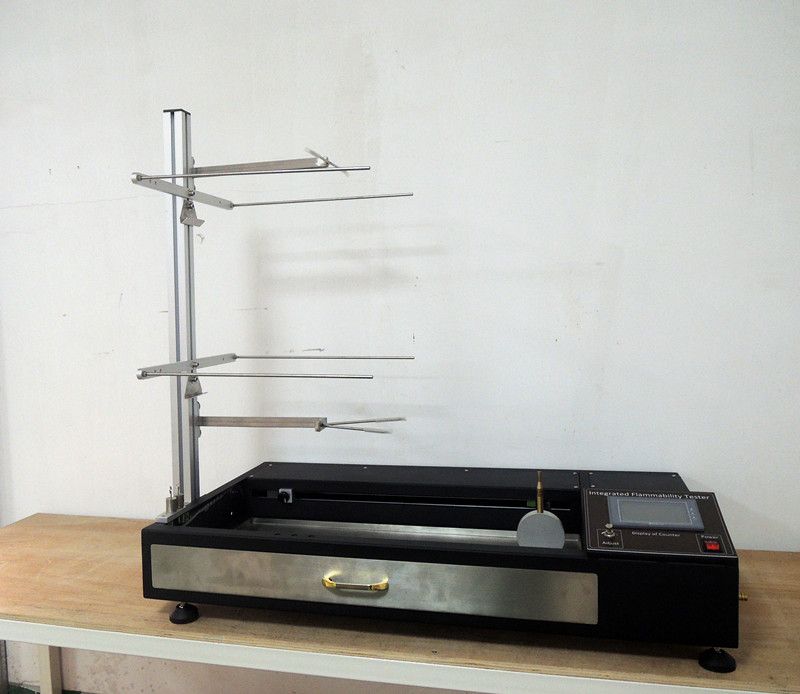

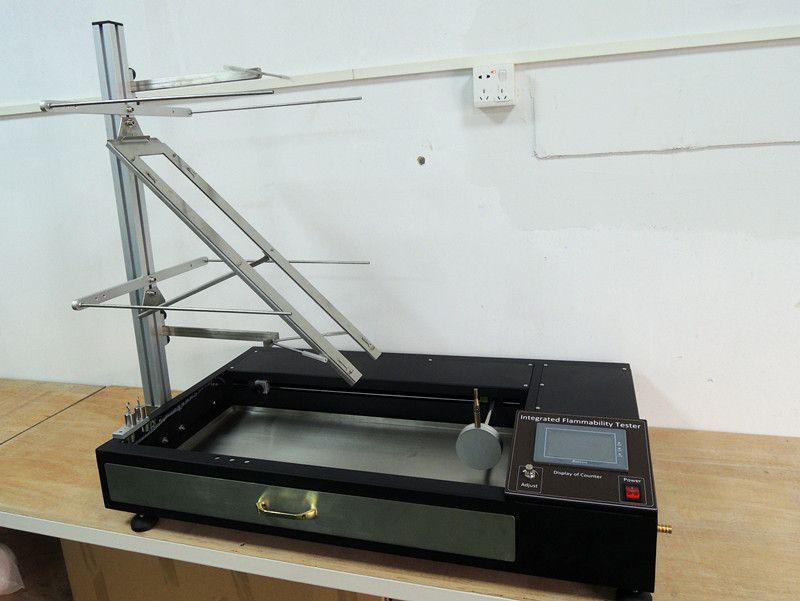

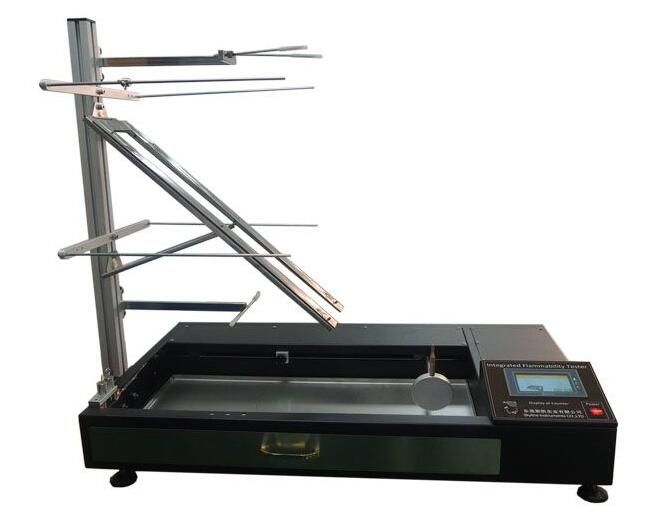

EN71 Toy Integrated Flammability Tester
Product information
It is used for testing the flammability of toys, children clothes, evaluates the following toys flammability speed time.
Testing the child clothing or the toy and accessories’ flammability, appraises the following toy type the rapidity of the flammability and time
The PLC control, the time is accurate, Chinese man-machine contact surface
The different test method provides different sample jig
Clamps are easy to operated
The jig may adjust willfully, suits different sample
Comply with standard EN71-2 2020
Technical parameters
Ignition of the Time Range 0-99.9S Precision 0.1S Continued burning time 0-999.9S Ignition Fire Mouth Dimension According to ISO6941 Standard Dimensions 1030 x 600 x 900mm (LxWxH) Weight 40kg Standards EN71-2 ISO8124-2 Accessories U-Type Fixture pack of 1
45 degree Clamp pack of 1
T-Type Fixture pack of 1
Thread Clamp pack of 2
U-Type Fork pack of 2
Cotton Thread pack of 1
Hammer pack of 2
Tag line guide ring pack of 4
Pinchcock pack of 4
Air feed device pack of 1
Burner pack of 1
How do you test if something is flammable?
The materials are placed over a Bunsen burner either vertically or horizontally, depending on the specification. During a vertical flammability test, a material is observed for the length of time it burns after the igniting flame is removed, how much of the specimen burns and whether or not it drips flaming particles.
Why is flammability testing important?
Why is flammability testing important? Flammability testing covers several different testing protocols and methods intended to measure a material's vulnerability, including its susceptibility to an ignition source, its propensity to combust, and the rate at which it will burn when ignited.
