  • Nail Penetration Test Apparatus

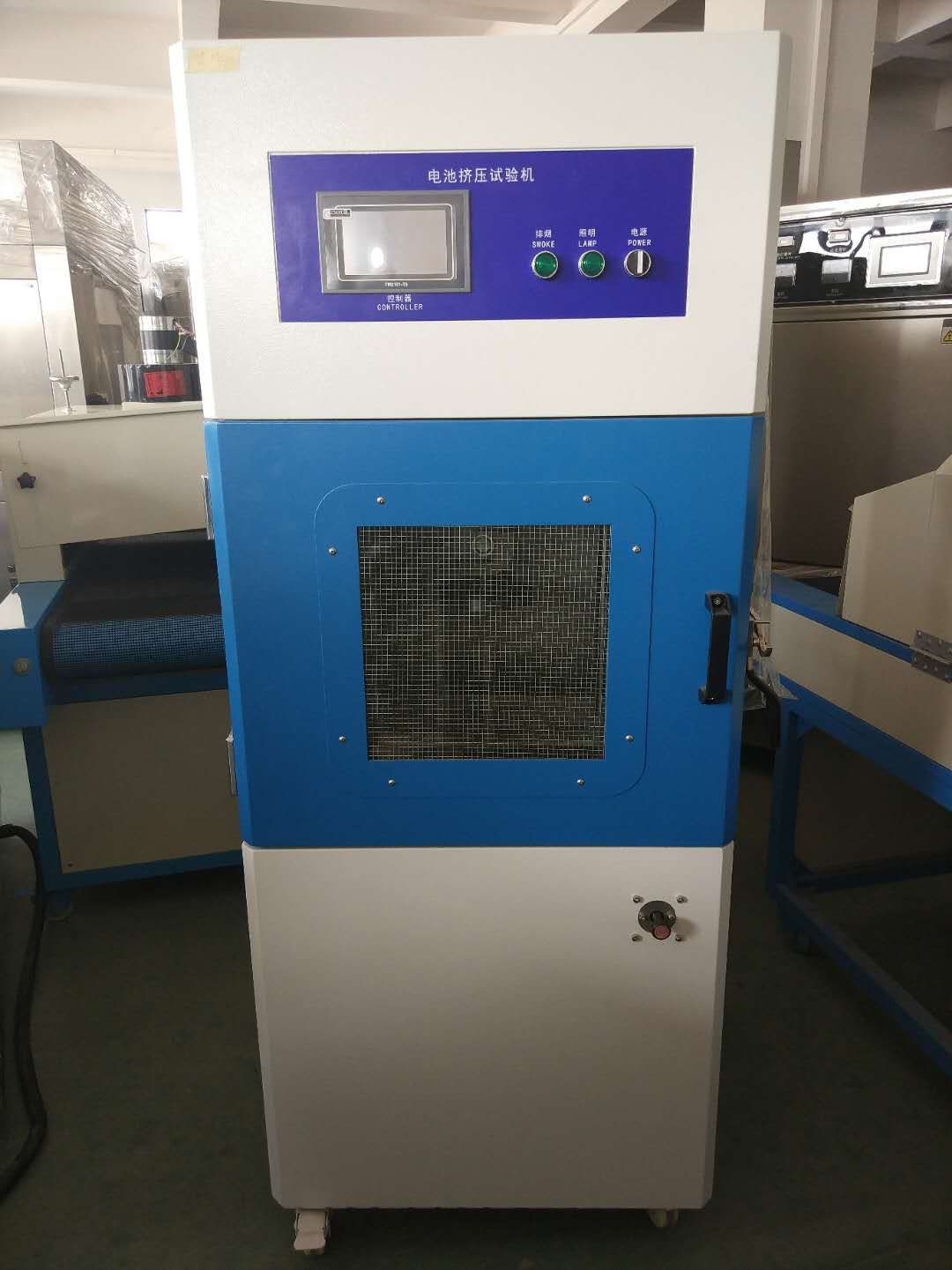

    Nail Penetration Test Apparatus

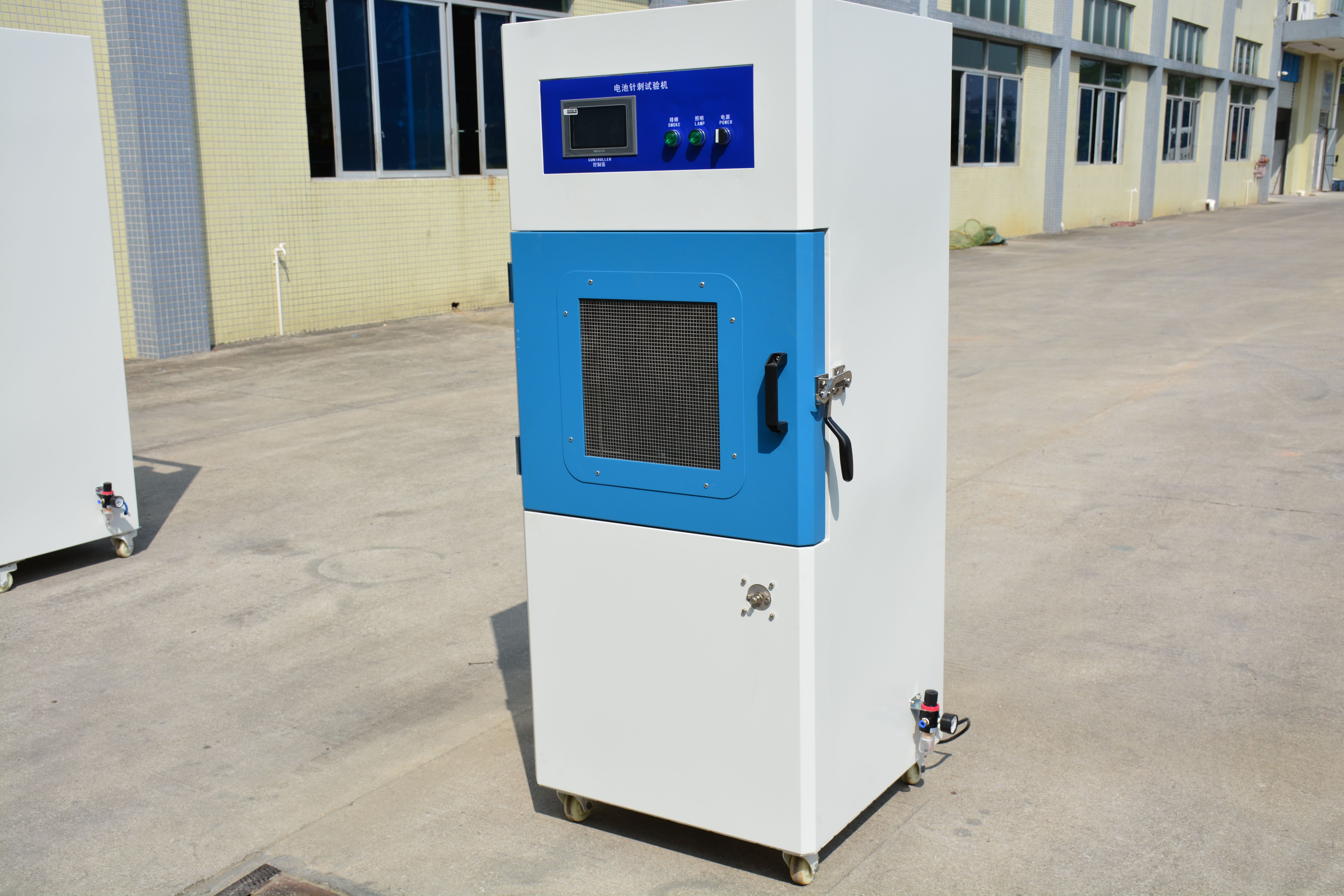

    Nail Penetration Test Apparatus

  • detailed description
  • Description:

    The test should be carried out under the ambient temperature coupler with a thermocouple battery (the contact of thermoelectric is fixed on the large surface of the battery) is placed in a fume hood. Use a ф2-ф8mm non-corrosion steel needle to pierce the center of the largest surface of the battery at a speed of 10mm/s-40mm/s, and keep it for random time.


    High temperature resistant steel needle

    ф2mm—ф8mm, Length 100mm

    Tip distance from bottom

    The battery plane is 200mm

    Clip distance



    10—40mm/s,from the direction perpendicular to the battery plate (the pin stays in the battery)

    penetrating power



    Pressure sensing LCD display




    Hydraulic drive


    Made into box-type equipment device explosion-proof, fire prevention, corrosion resistance, easy to clean

    Puncture space


    Inner box material

    Stainless steel and in the box 1/3 place with teflon sol cloth, high temperature resistance, corrosion resistance, insulation and easy to clean.


    About 100kg

    Power supply

    1ф220V , 50HZ


    IS 16805: 2018, MT/T 1051 SAE ,QC/T473/744

    What happens when you puncture a bloated battery?

    Yes. A swollen lithium-ion battery can be extremely dangerous if left in your device. It could become punctured, causing hazardous gases to escape.

     A swollen cell phone battery could even catch fire or explode while you're holding it, leading to serious injury.

    What is the nail penetration test?

    Explanation. Nail penetration test is a method of forced internal short circuit testing, simulating a short circuit that causes the battery to generate heat or fire.

    In the test, a nail is inserted from outside into the battery charged to a charge depth of 100%, to forcefully generate a short circuit within the battery.
