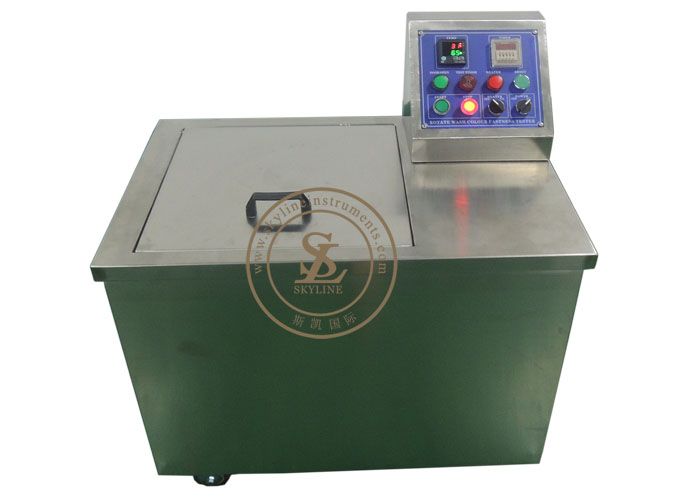

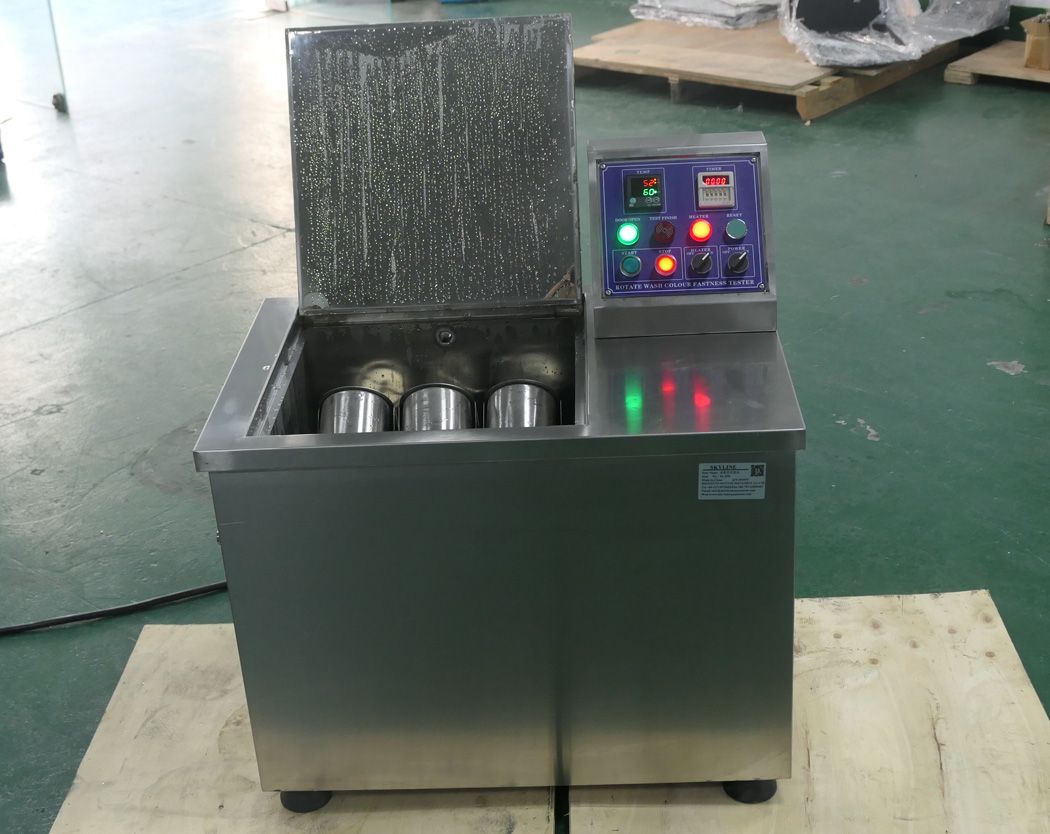

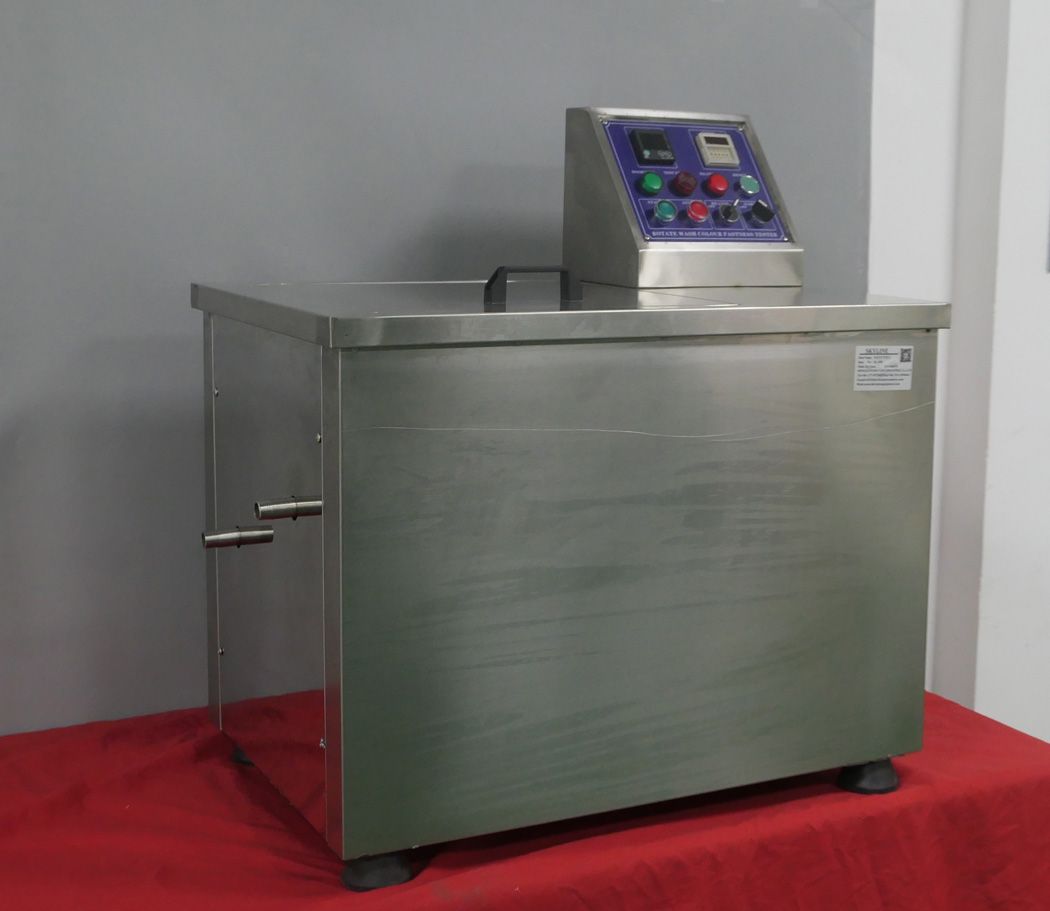

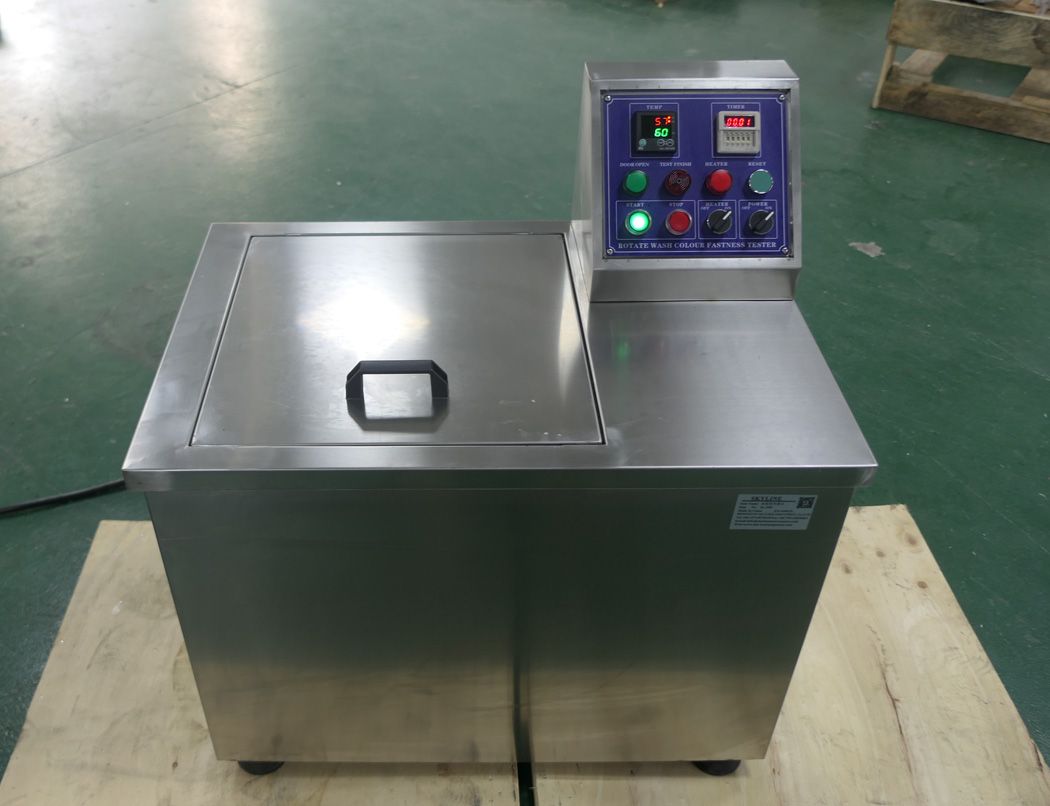

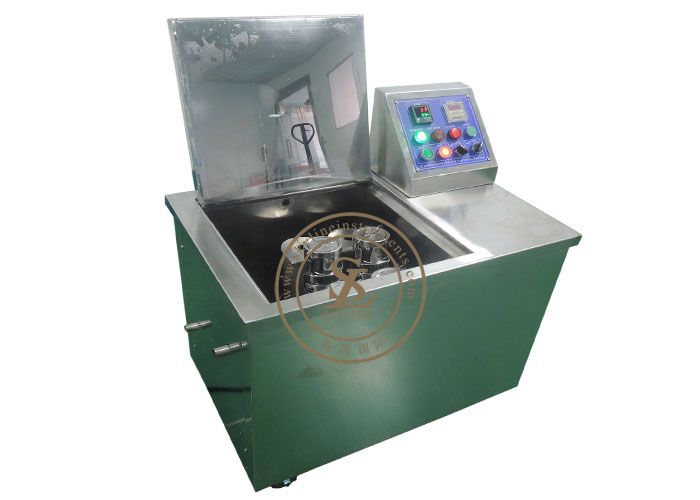

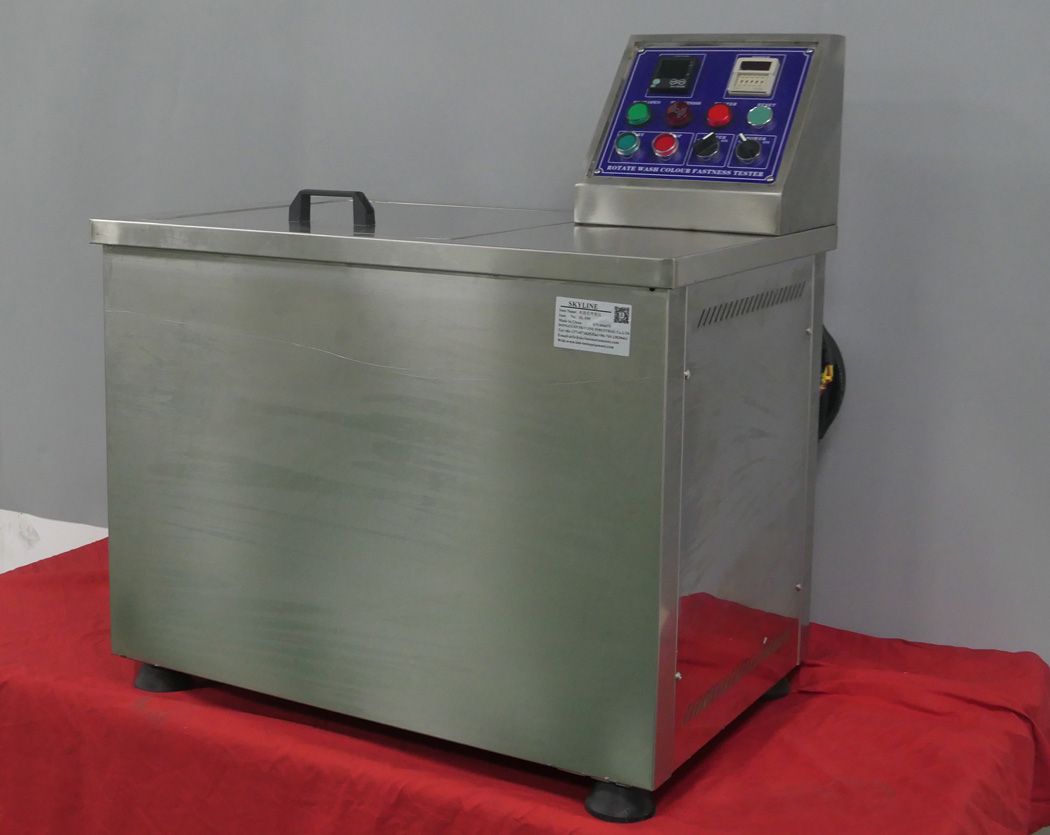

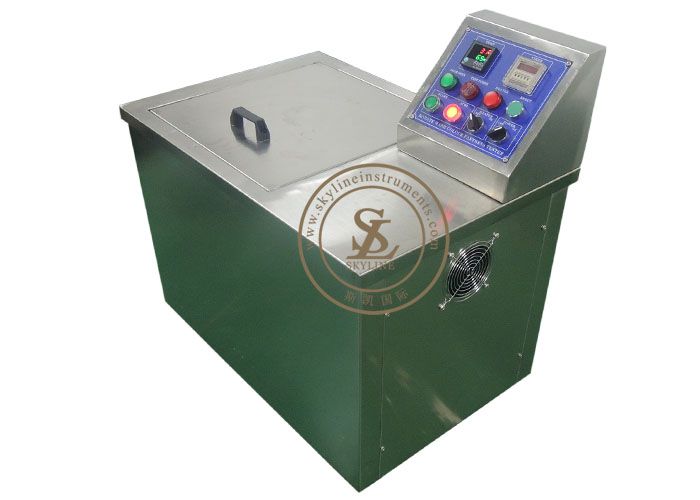

    SL-F09 Rotawash Washing Fastness Tester

    SL-F09 Rotawash Washing Fastness Tester

    SL-F09 Rotawash Washing Fastness Tester

    SL-F09 Rotawash Washing Fastness Tester

    SL-F09 Rotawash Washing Fastness Tester

    SL-F09 Rotawash Washing Fastness Tester

    SL-F09 Rotawash Washing Fastness Tester

  • detailed description
  • Rotawash Washing Fastness Tester


    Product Introduction
    Rotawash Washing Fastness Tester is used for determining color fastness of textile materials to washings. This is attained by mechanically agitating a specimen of textile in contact with pieces of specified adjacent fabrics in soap – soda solution. Before being rinsing and dried. The change in color of specimen and stains of the adjacent fabrics are assessed with standard Grey Scale.

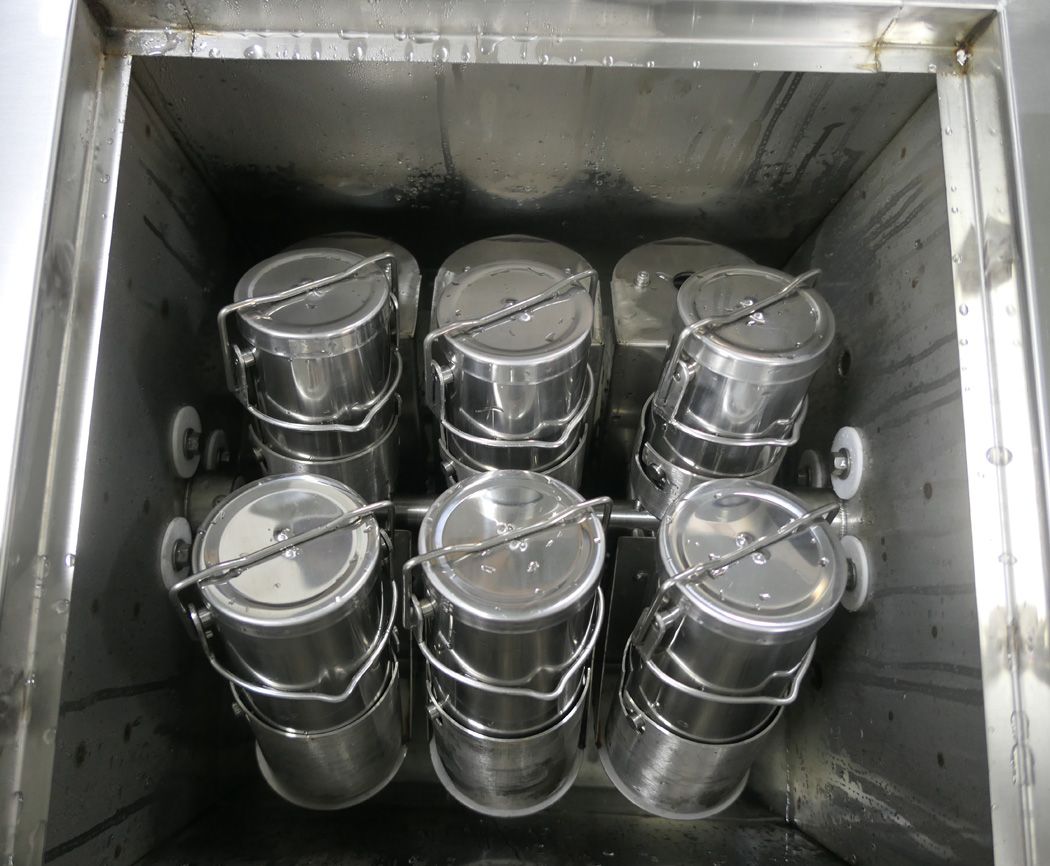

    Number of Jars Eight
    Volume of each Jar 550 cc (Approx)
    Distance of base jars from the axis of rotation 50 mm
    Speed of rotation 40 to 45 rpm.
    Temperature of Water Bath Ambient of 980 C
    Motor ¼ HP 230 V AC.


    Testing Standards

    IS 687 – 1979, 764 - 1979, 765 – 1979, 3417 – 179, 3417 – 179, Method of determination of Color fastness of textile materials to washing: Test1, Test2, Test 3, Test 4 and Test 5 respectively.


    Technical parameters

     Cup capacity  550ml, 1200ml (optional)
     Spin speed  40±2r/min
     Time control range  99.9min
     Time control error  <±5s
     Temperature control range  0~100℃
     Temperature control error  <±2℃
     Heating method  Electric heating
     Power supply  AC 380V, 50Hz


    Product Features

    1. This wash fastness tester design parameter conform to ISO, BS, AATCC, JIS, and SDC those standards.
    2. This washing fastness tester's box and its test cup adopt stainless steel material, it has anti-high temperature,
    acid-base, and corrosion functions.
    3. Equip with door safety switch, can protect from burning or injured.
    4. Equip with procedure time counter, digital temperature controller, auto temperature, and time control, it has alarm
    hint while experiment ending.
    5. Can customize cup compound mode according to customers' requirements.
