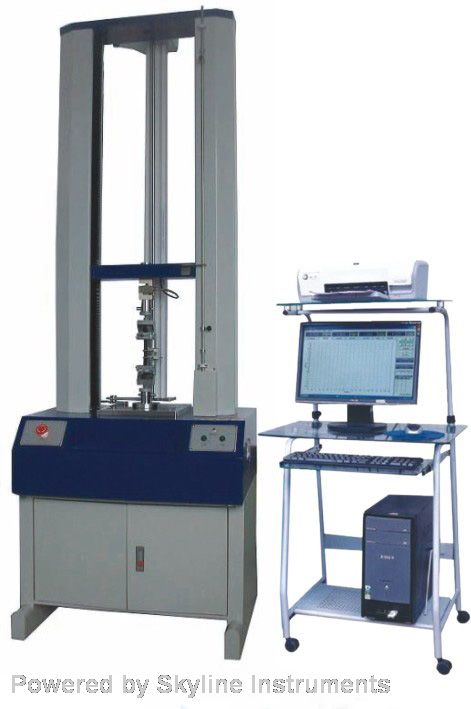

  • SL-T802 Servo Controlled Universal Tensile Testing Machine

  • detailed description
  • Servo Controlled Universal Tensile Testing Machine


    Applicable industry

    It is widely used in wire and cable, hardware, electronic and electrical equipment, packaging, printing, medical equipment, auto parts, textiles and leather, clothing, shoes, rubber and plastic products, colleges and universities; research laboratories; inspection arbitration, technical supervision departments and many other industries, it is the basic equipment for quality management and physical tested.


    Technical parameters

     Capacity       100, 200, 500, 1000, 2000kg, 5000kg, 10000kg
     Display  Computer display mode
     Force      Resolution  1/120, 000
     Force Accuracy ≤ ± 0.5%
     Stroke Resolution  0.005mm
    Control Mode  All computerized operation mode
     Test Stroke  800mm
     Test Width  550mm
     Test Speed  0.01~500mm/min, can set by computer, with up & downfast adjustment button of grips
    Force Unit Switch  Kgf, N, Ibf, g, ton, Mpa
     Stop Mode  Overload stop, emergency stop button, specimen damage automatic stop, upper & lower limit set automatic stop, automatic reset function
     Machine Dimension  115*60*220cm(W× D× H)
     Machine Drive  Servo motor drive, synchronous wheel and precision ball screw drive
     Power  1000W
     Machine Weight  Approx 800kg
    Power Supply  220V 50/60HZ 10A
     Standard Device  1 set of grips, computer software, USB computer connection wire
    Optional  Personal computer


    What is universal tensile testing machine?

    A universal testing machine (UTM), also known as a universal tester, materials testing machine or materials test frame, is used to test the tensile strength and compressive strength of materials. An earlier name for a tensile testing machine is a tensometer.


    What is extensometer in UTM?

    UTM-515, Extensometer

    Extensometer is the essential equipment for measuring the elongation of specimen. It used in tensile test and sense the elongation when testing is processing. Extensometer is helpful to analysis test data at the same time, including force, elongation, time and so on.
