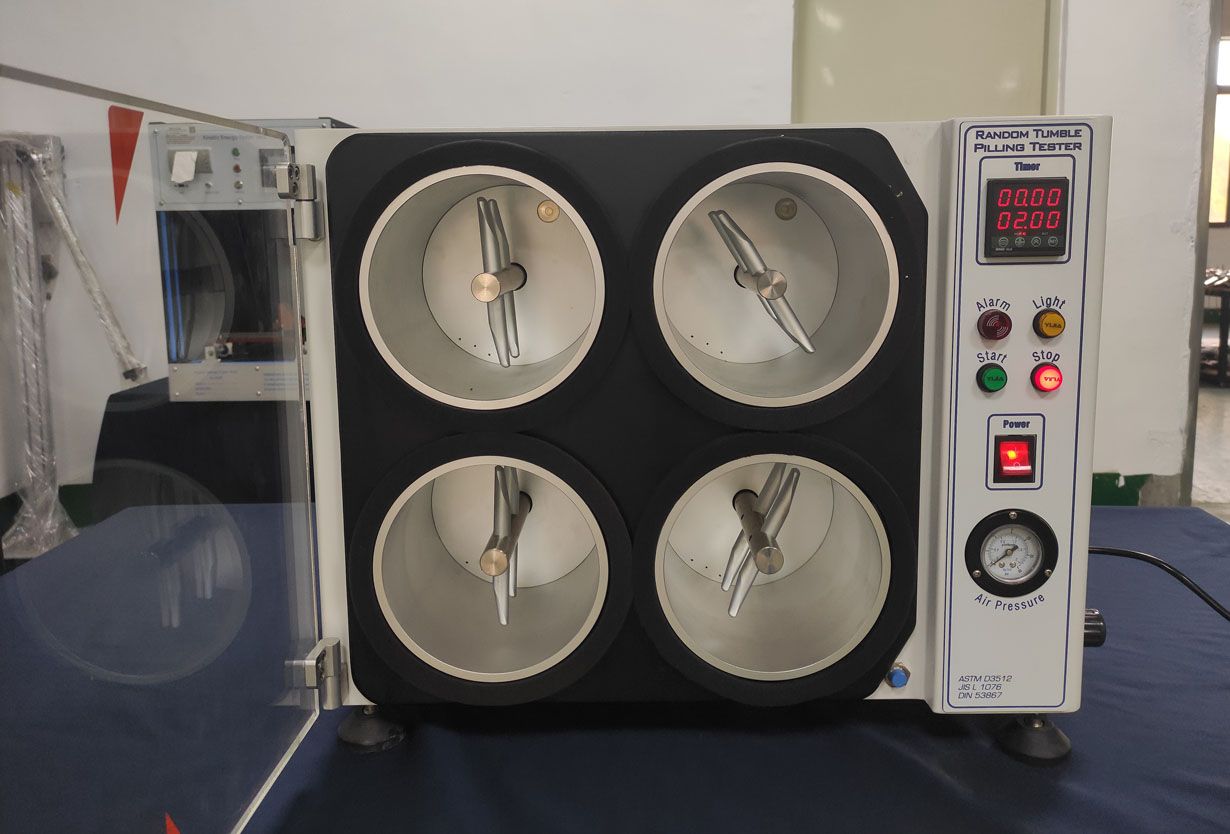

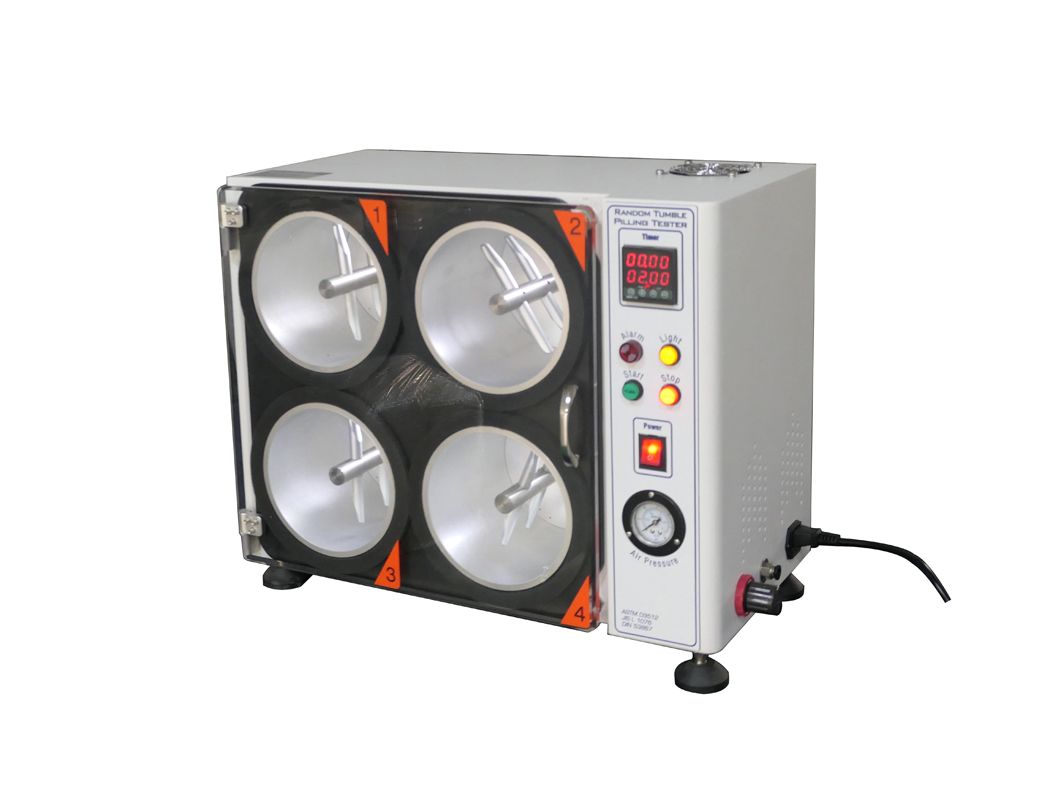

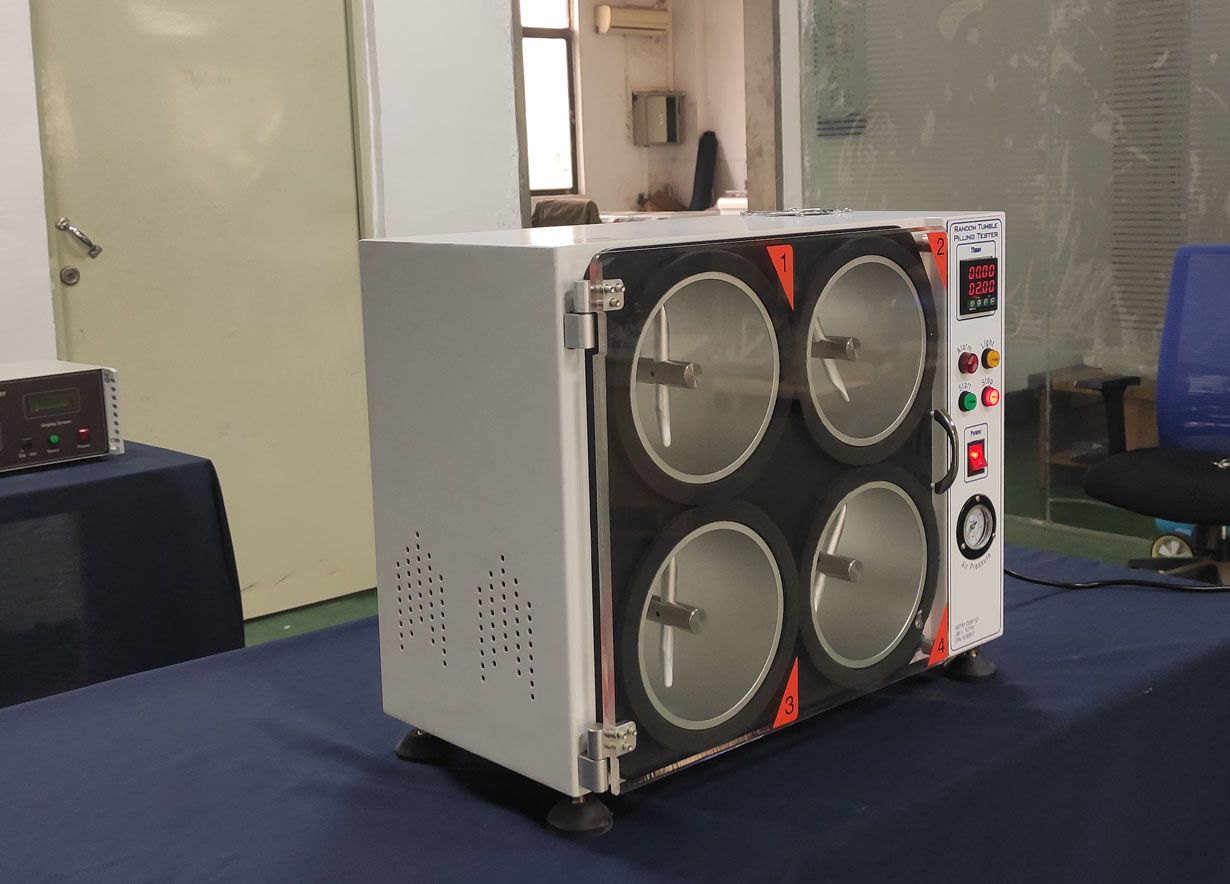

  • ASTM D3512 Random Tumble Pilling Tester



    Purpose

    This instrument is suitable for judging the resistance of fabrics to pilling and other surface defects, such as hairiness. It is suitable for various types of clothing fabrics. This instrument is not suitable for testing fabrics with silicone resin finishing (such as durable rainproof and soft finishing), because silicone will transfer to the cork liner and affect the test results



    Principle

     In order to imitate the friction effect during wearing, the sample and a small amount of gray short cotton fiber are added to the cylindrical test box and the cork liner is rubbed against each other. The test results are compared with the standard samples for subjective rating. Check the pilling on the surface of the sample to evaluate the pilling resistance of the sample, as a reference for improving the fabric technology.



    Standards

    This instrument is manufactured according to ASTM D3512 and JIS L1076.



    Technical parameters

     Number of test tubes  4 pcs
     Test tube  Diameter 146mm,depth 152mm
     Test Speed  1200r/min
     Specimen  105mmx105mm,3pcs/tube
     Liner  452x146x1.5mm
     Dimension (WxDxH)  58x32x42cm
     Weight(Kg)  ≈60Kg
     Power Supply  1∮ AC 220V 5A



    ASTM D3512 Random Tumble Pilling Tester 0
