  • SL-T24 Automatical Paperboard Burst Strength Testing Equipment

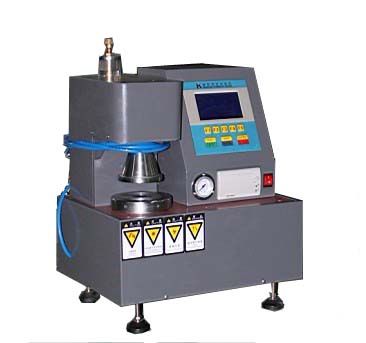

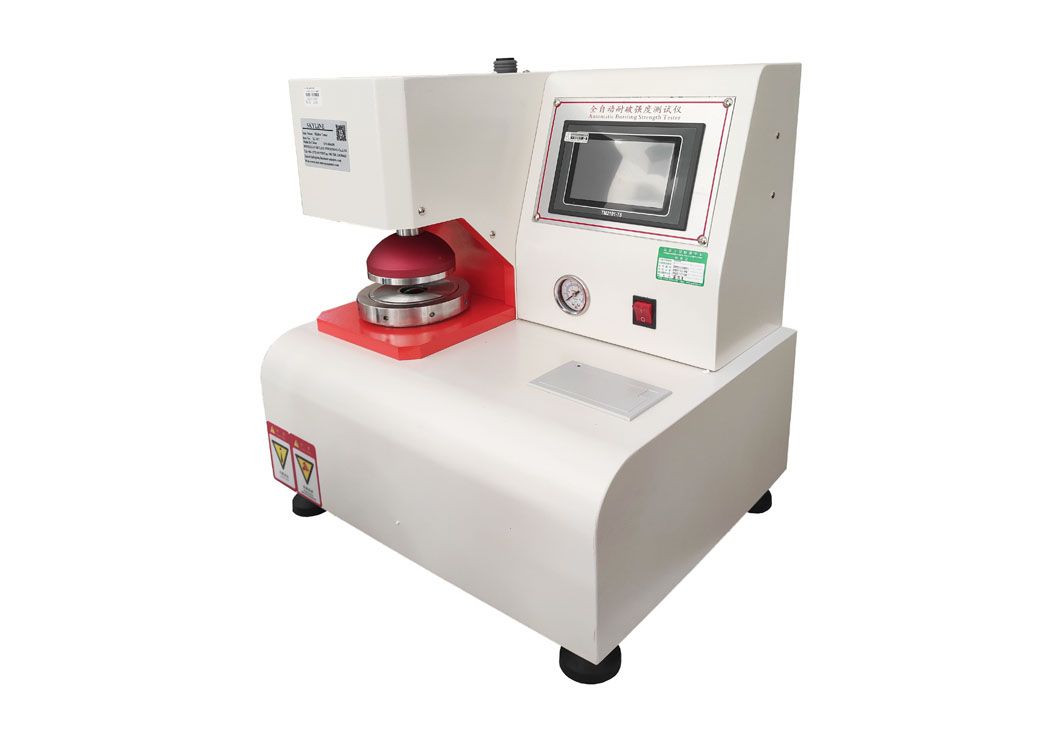

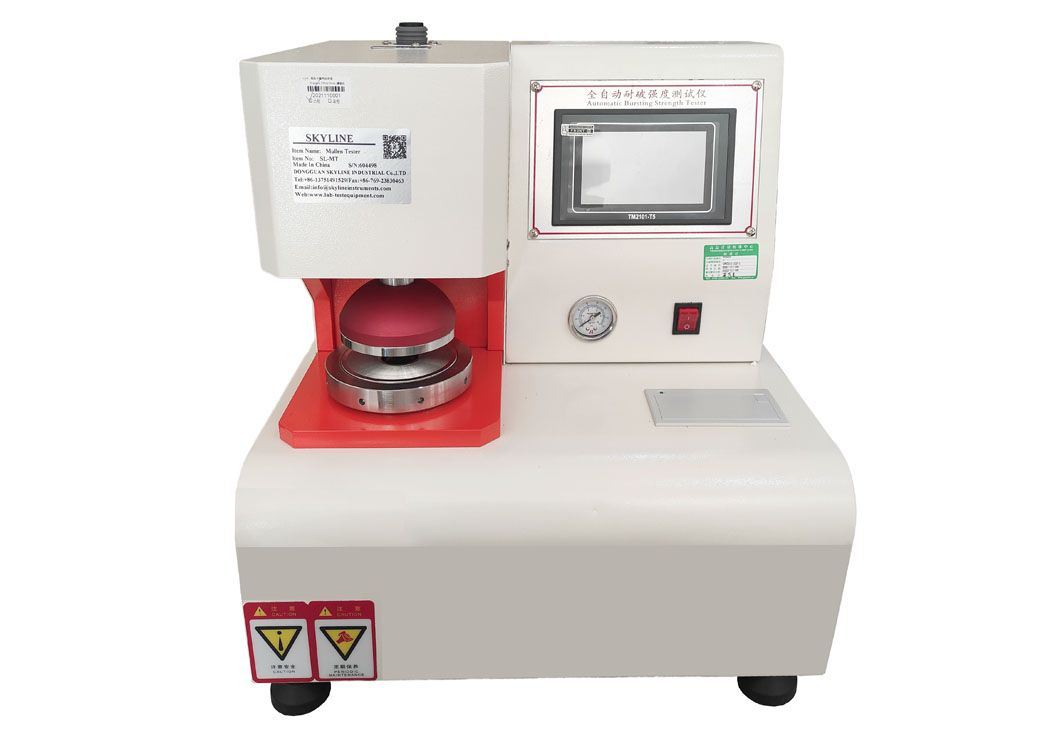

    SL-T24 Automatical Paperboard Burst Strength Testing Equipment

    SL-T24 Automatical Paperboard Burst Strength Testing Equipment

  • detailed description
  • Automatical Paperboard Burst Strength Testing Equipment


    Product introduction

    Automatical Paperboard Burst Strength Tester is a kind of international Mullen equipment, and is widely used on packing material, such as all kinds of paperboards and single layer & multi-layer corrugated boards, as well as silk, cotton and other non-paper materials.


    Standards

    JIS-L1004、L1018、L1031、K6328、P8131、P8112 and ASTM-D2210、TAPPI T403、ISO2759-2001


    Technical parameters

     Display

     LCD

     View area

     121*93mm

     Unit

     kg, N, LB(swithchable)

     Test capacity

     100kg/cm 2

     Internal diameter of upper clamp

     φ 31.5± 0.05mm

     Internal diameter of down clamp

     φ 31.5± 0.05mm

     Film thickness

     2.5mm(Middle embossed area)

     Resolution

     0.1kg, 0.98N, 0.22LB

     Accuracy

     ± 0.5%

     Clamp force

     > 690kpa

     Dimensions

     (L×W×H)430×530×520mm

     Weight

     64kg

     Accessories

     A rubber film, a wrench, 10 aluminum pieces for adjusting, a bottle of glycerol

     Power Supply

     AC220± 10%, 50Hz





    How do you test the bursting strength of paper?

    In a burst test according to the Mullen principle , the paper sample is placed between two ring-like clamps, and a hydraulic pressure is used to inflate a rubber diaphragm, which expands against the sample stretching it.



    Which instrument is used for internal bursting pressure test?

    GBBT-1 Glass Bottle Burst Tester (Explosion tester for glass bottles) The GBBT-1 is an instrument for testing the internal pressure resistance of glass containers. It has been widely used by the glass container manufacturers and users.
