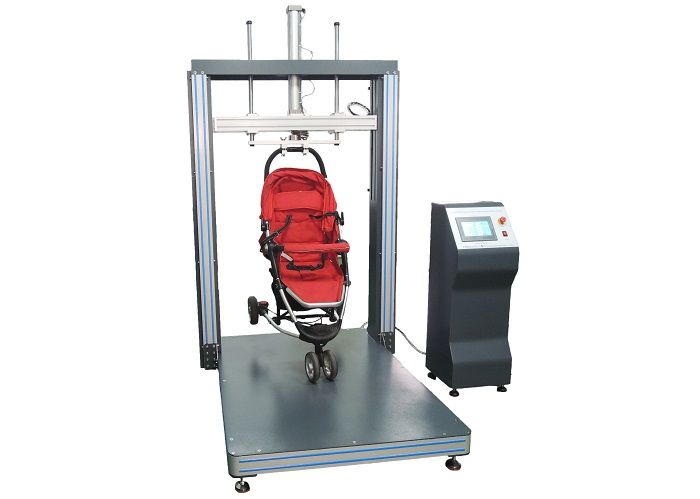

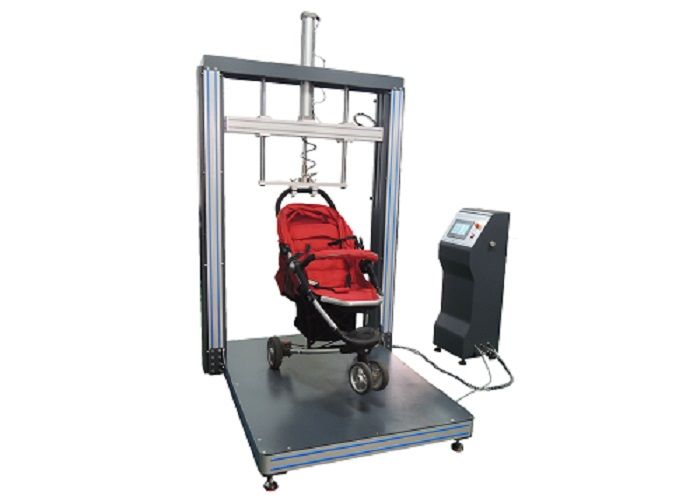

EN1888-2018 Baby Stroller Handle Durability Tester
Use
This tester is suitable for the durability test of the push-pull stroller when simulating over obstacles.
Principle
Put the model baby in the platform, when lifting: make the rear wheel of the platform 120mm +/- 10mm away from the area, when pressing down: make the front wheel of the platform 120mm +/- 10mm off the ground, at a speed of 15 ± 1 times / MIN After the continuous reciprocating test 10,000 times, visually inspect the car for damage.
According to the standard
This tester is made according to the requirements of section 8.10.6.2.2 of EN-1888-2012.
Technical parameters
Sample Stroller Number of samples 1 / times Loading force value 450N Front and rear wheels off the ground 120mm+/-10mm Adjustable Volume (WxDxH) Host :140x122x185cm Weight (approx.) ≈280Kg Gas source 7kgf/cm^2 Stable air supply Power Supply 1∮ AC 220V 50Hz 5A
