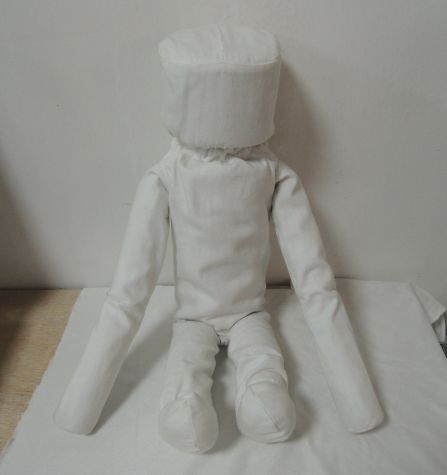

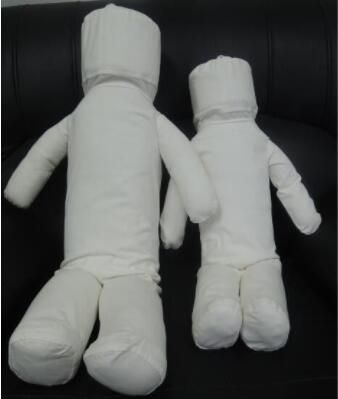

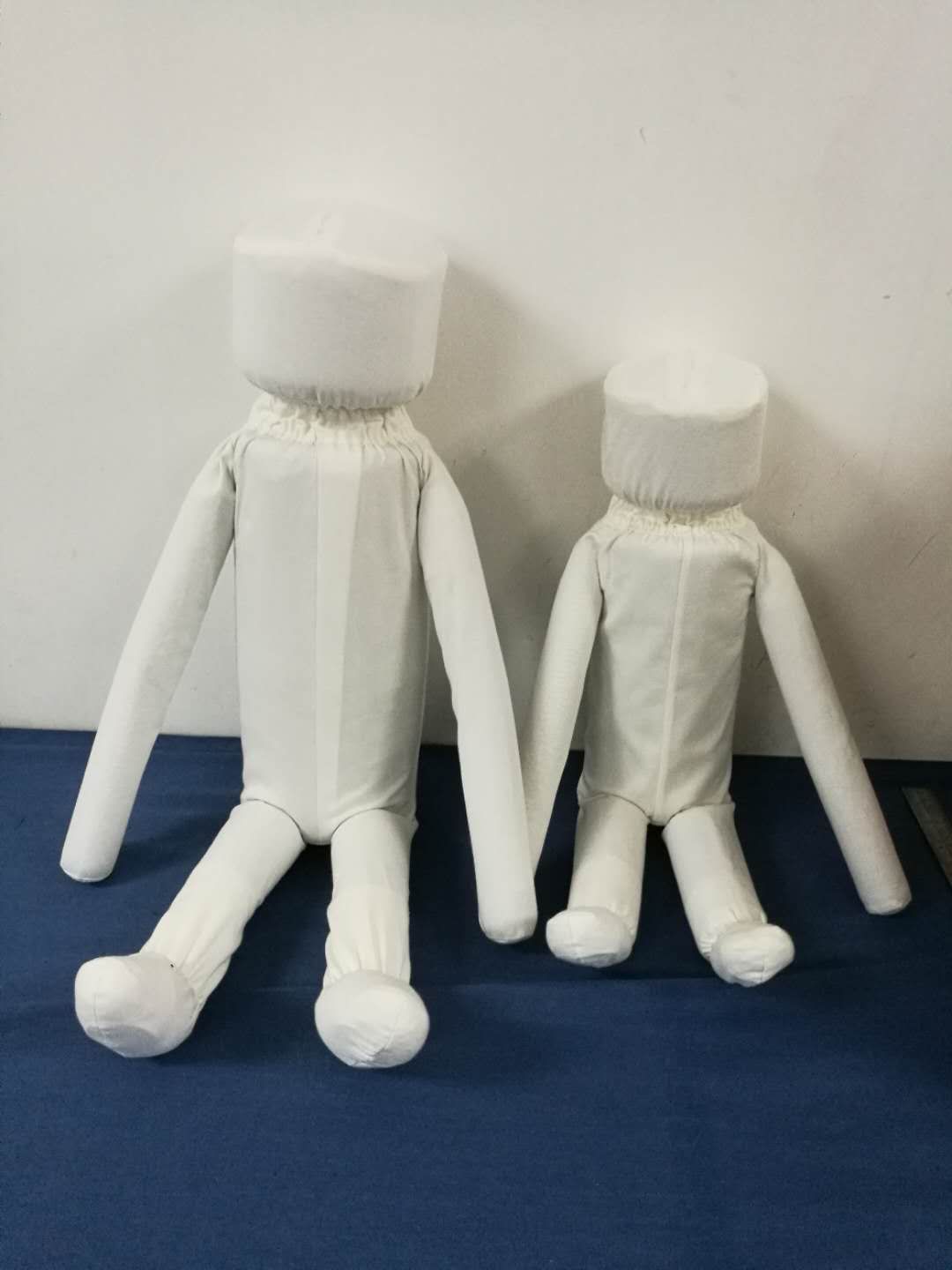

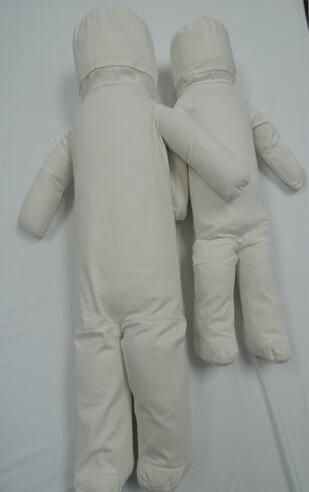

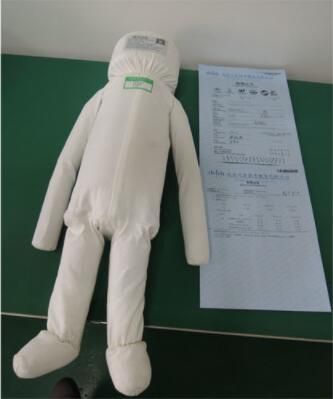

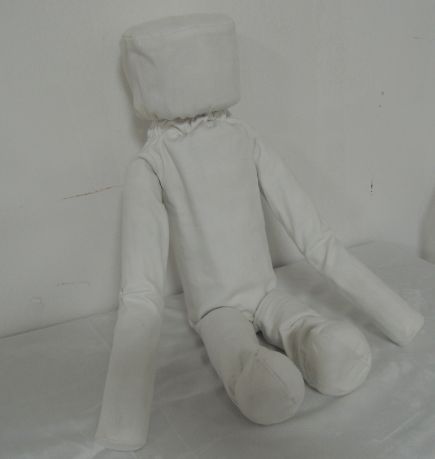

Infant Dummy-Mark II

Product information

This dummy is based upon a leather skeleton, which has approximately the external shape of the dummy when viewed frontally. Cast lead or aluminum blocks are attached to the head, upper and lower arms, upper and lower parts of the torso and upper and lower legs to approximate the mass distribution of the corresponding infant. The aluminum blocks are used on arms and legs to prevent reverse motion at elbows and knees. These weights are riveted to the skeleton.

Application

Used to test the safety of baby toys and other baby products

Principle: Use dummy to simulate the scenario where children use toys and other baby products, and evaluate the potential dangers of baby products through simulated test data

Function: According to the test needs, simulate the size and weight of each part of the child's body

Weight

17.5 lb or 8.0 kg

Standards

ASTM-F2012-07,ASTM-F404-07,ASTM-F2088-03,ASTM-F2167-05,ASTM-F833-03A

NOTE:This CAMI 6 Month Old  Dummy Mark II is in stock.
