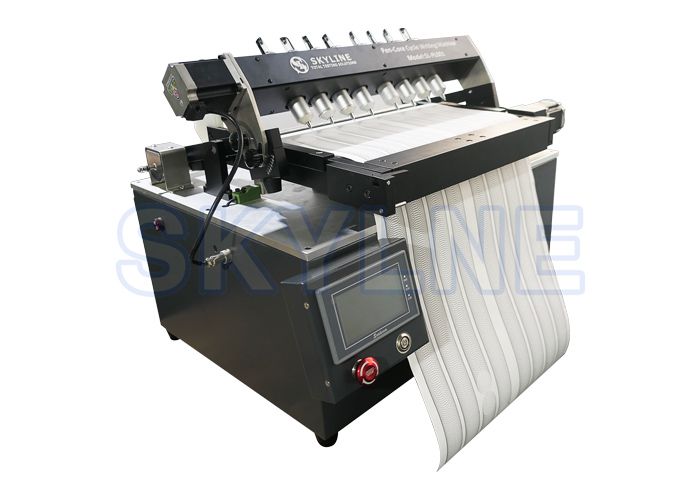

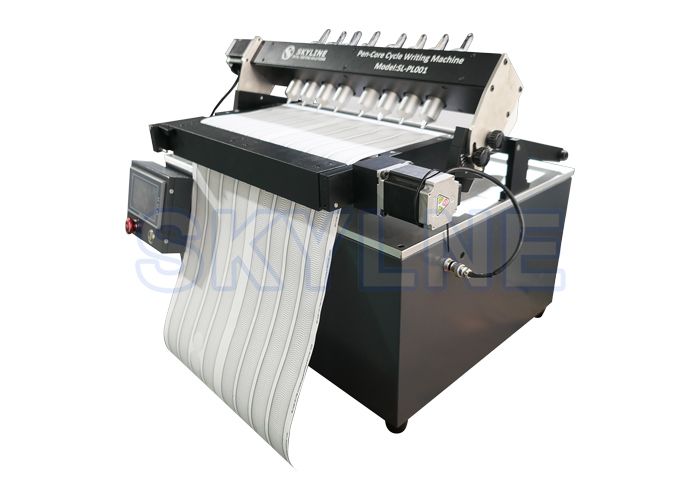

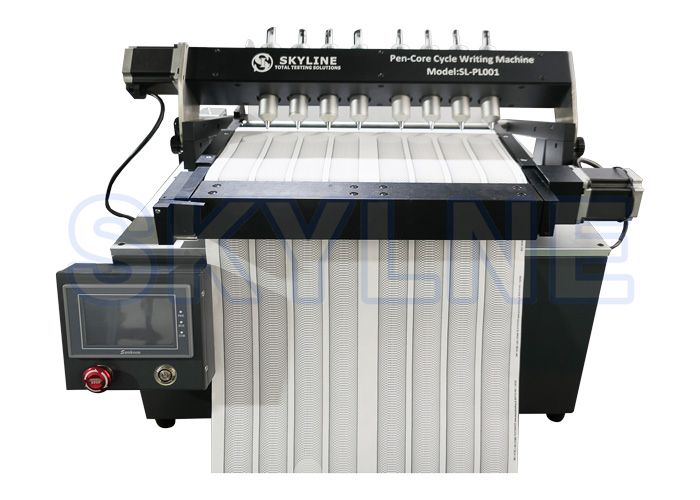

ISO 27668-1 Pen-Core Circle Writing Tester
Please review video of Pen-Core Circle Writing Testing Machine as below link:
Application
This machine is used to test the refill.Draw a circle at a certain speed to check whether the stitch meets the performance requirements of Clause 3.6 of ISO27668-1.
Principle:
This machine simulates the state of writing with a pen. After placing a certain load on the sample, it writes circular marks at a certain speed to check whether the structure and performance of the sample are in good condition.
Parameters:
Test sample |
Pen |
Road weight |
50g+/-0.5g |
The maximum diameter |
≤φ23mm |
Sample number |
8pcs/time |
Single rang/Full rang |
1.375 inches /2.75 inches |
Writing speed |
1.0m/min-15.0m/min Adjustable(Input the number on touch screen) |
Pencil autobiography speed |
0.5-3.0 Turn/min Adjustable(Input the number on touch screen) |
Line distance |
2.0mm-15.0mm(Input the number on touch screen) |
Writing angle |
60°~90°Adjustable(with hands) |
Finish testing |
Alarm and sample bounce off paper |
Languages |
English and Chinese |
Control |
7- inch display touch screen |
Motor |
Three sets of Raiser servo motors |
PCL control |
Japanese original Mitsubishi PCL |
Power supply |
Diphasic 220V,20A |
Standard:
This writing tester is made with reference to the requirements of Clause 3.6 of ISO27668-1
Note:
Please review video of the writing tester operation as below link:
