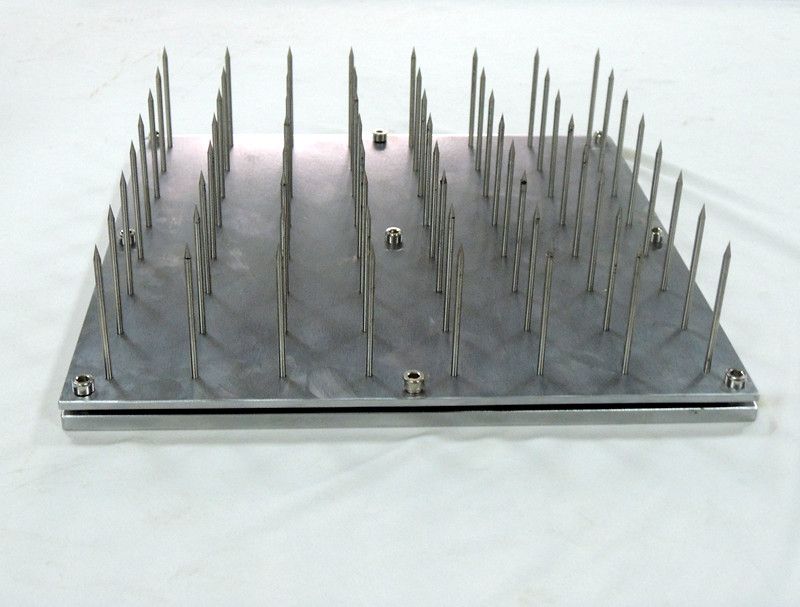

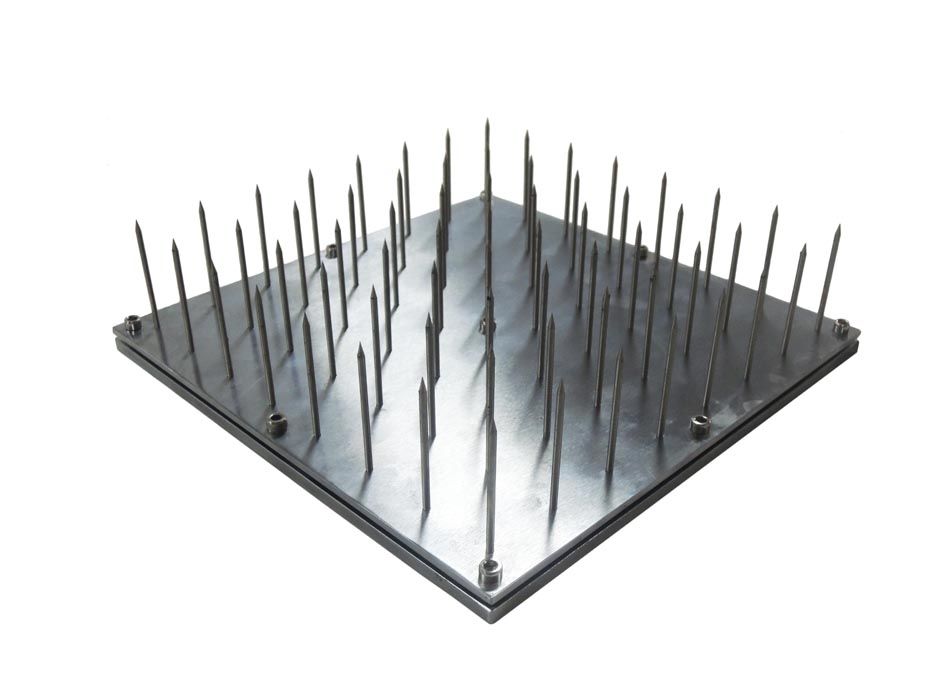

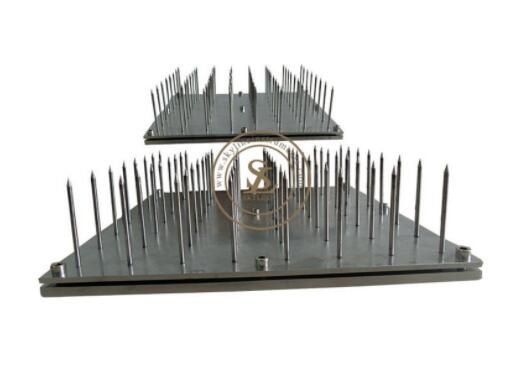

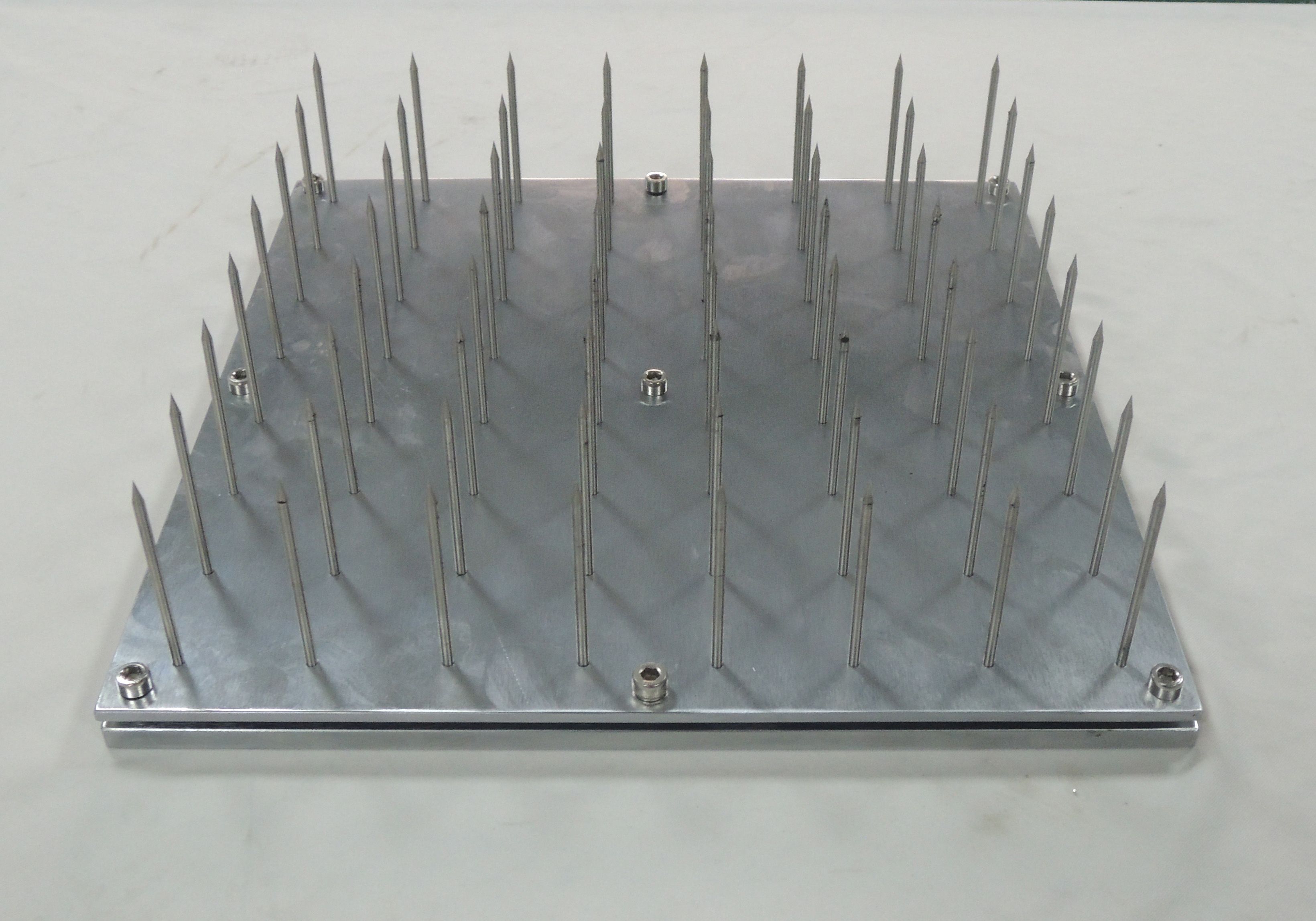

  • SL-S25 Nail Bed Flammable Testing Equipment

    SL-S25 Nail Bed Flammable Testing Equipment

    SL-S25 Nail Bed Flammable Testing Equipment

    SL-S25 Nail Bed Flammable Testing Equipment

  • detailed description
  • ASTM F963 ​Nail Bed Flammable Tester



    Product description of ASTM F963 ​Nail Bed Flammable Tester:

    Nail Bed Flamable Tester is designed for determining the flammability of cloth toys and plush toys, used in the detection of flammability of flammable hair, and recording the burning time, to make a assessment whether the flammability of the burning part meet the requirement of standards.


    Nail Bed Flammable Tester Application:

    • The tester is used as test fixture in the flammability test of solid and soft toys;
    • Place the prepared sample in a draft-free area that can be ventilated and cleared after each test;
    • A specified ignition source is acted on the sample until ignition occurs. Observe the combustion state of sample and assess its flammability.



    Technical parameters

    Items Parameters
    Socket Wrench Screw 1 Material Stainless Steel
    Dimension # 10-32x0.38inches (LG)
    Quantity 9
    Apart from the edge 0.31inches (7.8mm)
    Screw Spacing 1.25inches (31.75mm)
    Nail 2 Material Stainless Steel
    Dimension # 8d×2.50 inches (LG)
    Quantity 64
    Apart from the edge 0.62inches (15.7mm)
    Screw Spacing 4.69 inches (119mm)
    Up plate-stainless steel plate 3 0.12×10.12×10.12inches (3×257×257mm) (LG)
    Bottom plate-stainless steel plate 4 0.25×10.00×10.06inches (6.35×254×255.5mm) (LG)
    Outside dimension Approx. 254×254mm (1×1inches)



    Experiment method

    1. Place the sample on the device and measure the length.

    2. A candle with a flame height of 16 mm, so that the top of the flame ignites the sample for 5 s, removes the flame and burns for 5 s or burns to the other end of the spindle.



    Standard configurations

    Nail Bed Flammable Tester

    Burning Paraffin Candle.


    NOTE

    1. Independent carton packaging

    2. In stock


    How does a bed of nails tester work?

    A bed of nails tester is a traditional electronic test fixture which has numerous pins inserted into holes in an Epoxy phenolic glass cloth laminated sheet (G-10) which are aligned using tooling pins to make contact with test points on a printed circuit board and are also connected to a measuring unit by wires.


    What does ASTM F963 mean?

    The Standard Consumer Safety Specification for Toy Safety

    ASTM F963-17, The Standard Consumer Safety Specification for Toy Safety, is a comprehensive standard addressing numerous hazards that have been identified with toys.
