  • Site:Home > Toys Safety Testing Equipment > Flammability Testing > SL-S29 UL94 Horizontal-Vertical Flame Chamber
  • Product Images
  • SL-S29 UL94 Horizontal-Vertical Flame Chamber

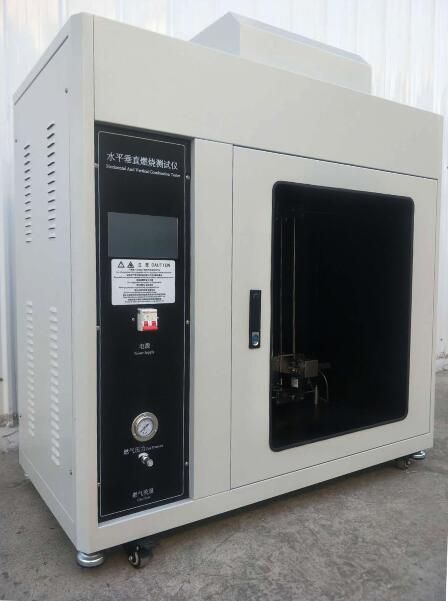

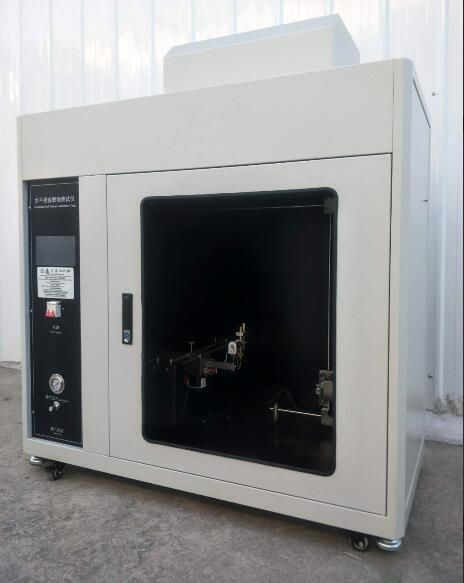

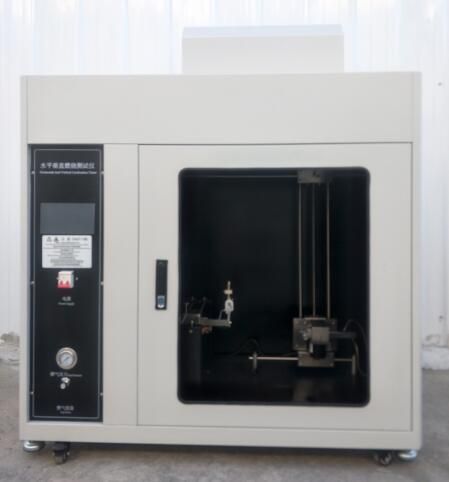

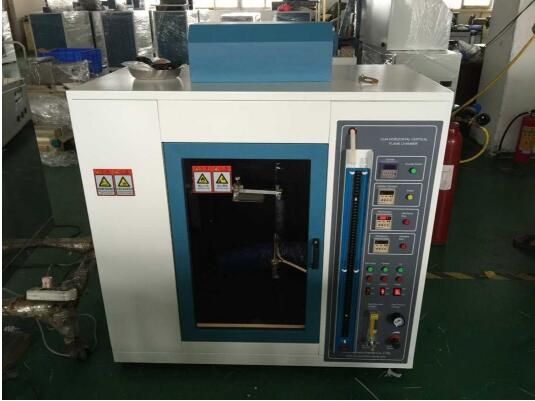

    SL-S29 UL94 Horizontal-Vertical Flame Chamber

    SL-S29 UL94 Horizontal-Vertical Flame Chamber

    SL-S29 UL94 Horizontal-Vertical Flame Chamber

    SL-S29 UL94 Horizontal-Vertical Flame Chamber

    SL-S29 UL94 Horizontal-Vertical Flame Chamber

  • detailed description
  • Horizontal and Vertical Flammability Testing Machine


    Product information

    UL 94 flame chamber. Horizontal flame chamber, vertical flame chamber

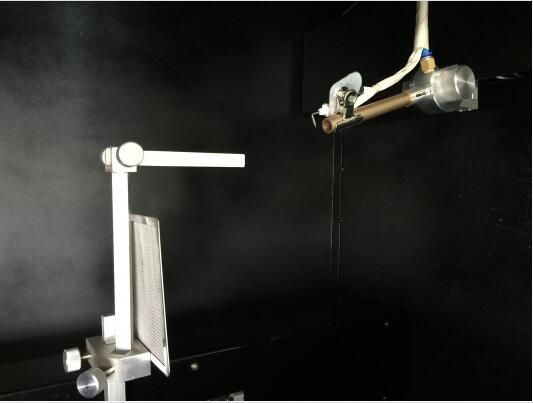

    For the flammability testing of plastic materials used in consumer electric devices and appliances. Stainless steel construction with black interior and large sliding window for easy viewing. Includes a fully adjustable specimen support and precision gas flow controls.



    Technical parameters

     Timer  0-999.9s+/-0.1s (adjustable)
     Flame Height  20mm+/-2mm to 180mm+/-10mm(adjustable)
     Gas  98% methane
     Temperature testing range  0-1000degree
     Dimensions(L*W*H)  1100 x 700 x 1300mm
     Weight  128kg
     Standards  UL 94-2006 IEC 60695-11-3 IEC 60695-11-4

    How do you test for flammability?
    The various flammability tests are all similar in that they (1) orient a test sample either horizontally or vertically and place it in the test chamber; (2) apply a flame from a Bunsen Burner for a specified time; and (3) measure the time or distance that the flame propagates
