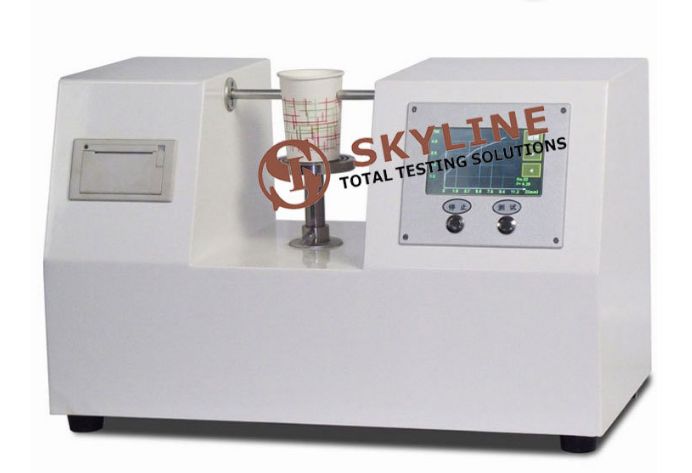

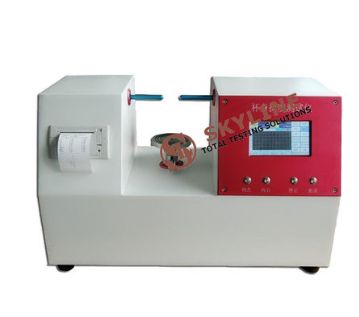

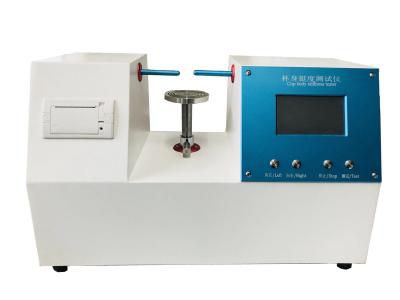

Cup Stiffness Tester
Application
The cup body stiffness measurement for various volume cups is an ideal measuring instrument for the cup body stiffness. It is a necessary paper cup physical property testing instrument for paper cup production plants and related scientific research and quality inspection departments.
Technical parameters
Measurement range | (0-20)N, resolution 0.01N |
Display value accuracy indication error | ±1% indication variability ≤1% |
Measurable paper cup diameter | 20-150mm |
Paper cup height | 15≤L≤120 |
Test speed | 50±2.5mm/min (1-200 continuously adjustable) |
Force distance | 9.5±0.5mm |
Dimensions | (length × width × height) 380mm × 260mm × 290mm |
Modular integrated thermal printer; | |
Net weight | 18 kg |
