  • Site:Home > Leather and Footwear Testing Instruments > SL-LC68 Deformation Tester
  • Product Images
  • SL-LC68 Deformation Tester

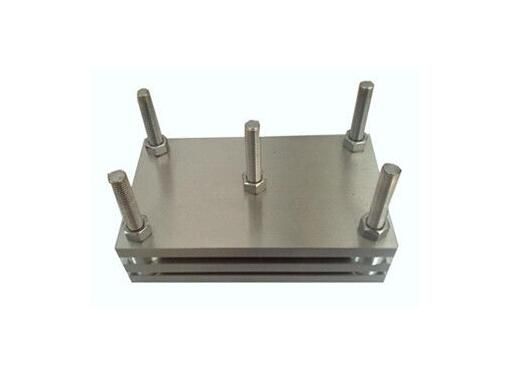

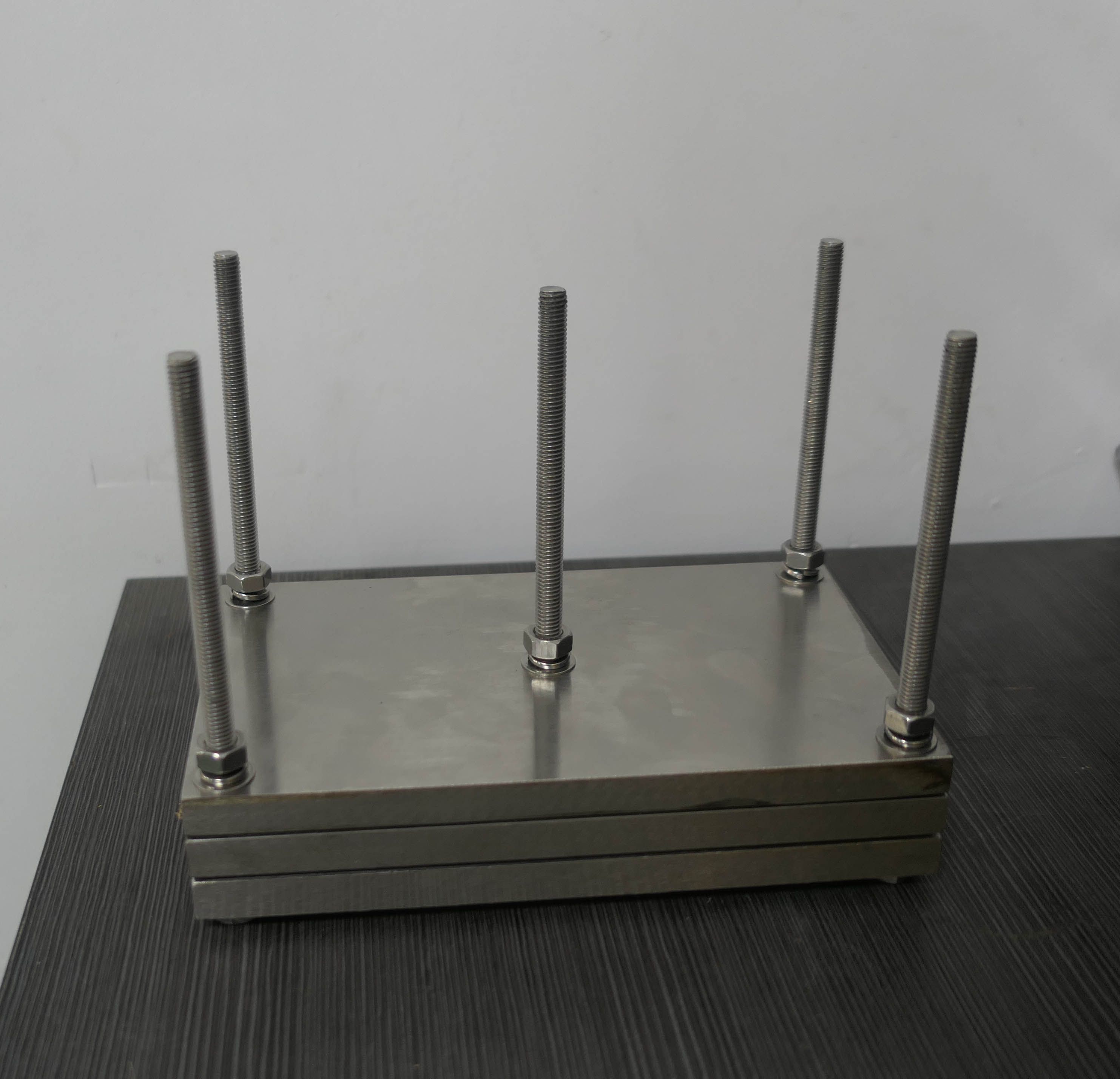

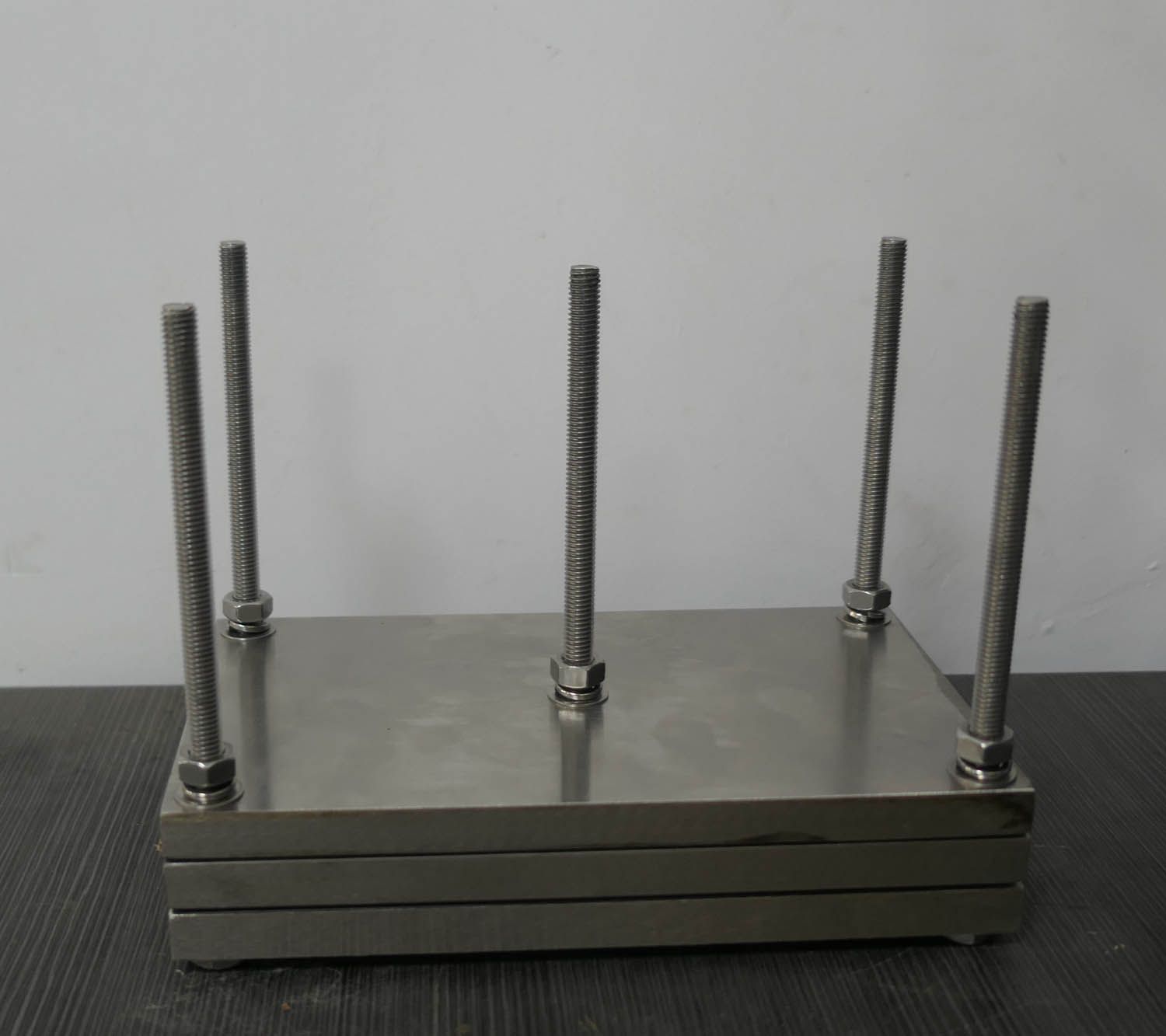

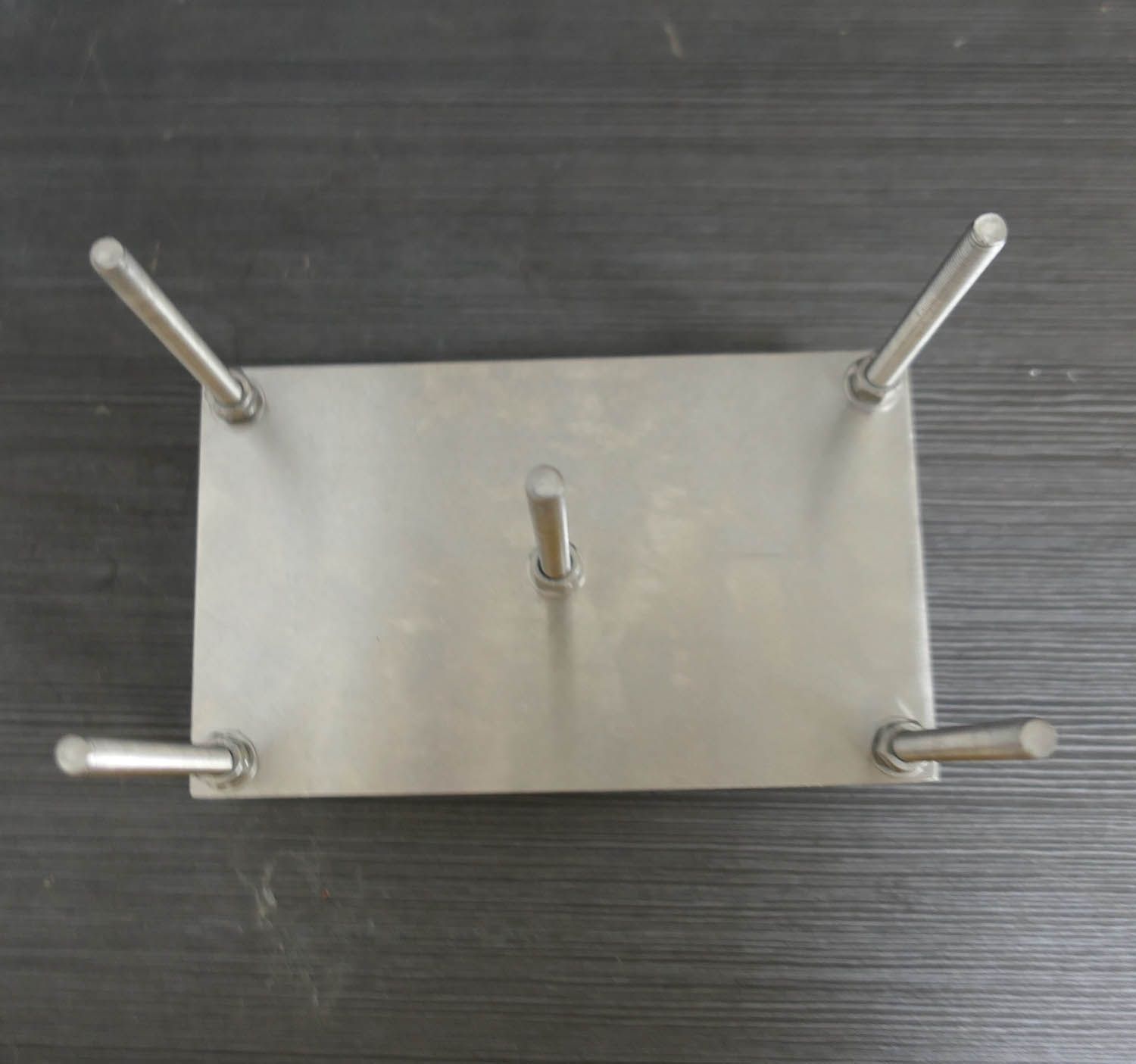

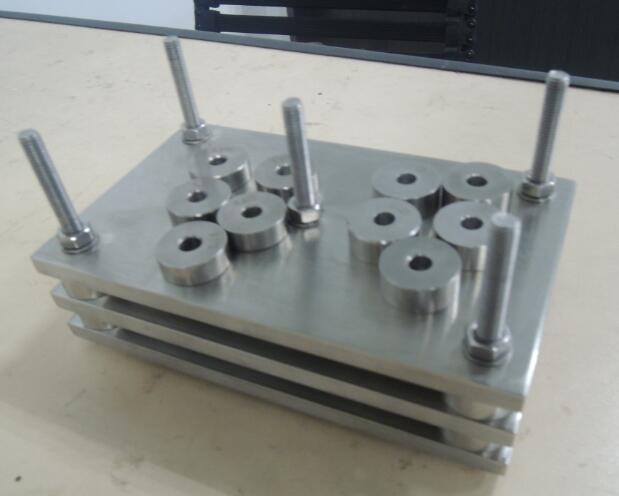

    SL-LC68 Deformation Tester

    SL-LC68 Deformation Tester

    SL-LC68 Deformation Tester

  • detailed description
  • Deformation Tester


    Product introduction

    Deformation Tester is a static way to test the rubber compression under heat. Place the specimen between plates and screw the bolts to a fix position. Put the specimen into the over for a certain period of time. After finishing the test, take out the specimen and cool for 30minutes. Measure the post-test thickness.

    Permanent Compression Tester is for Rubber Static Compression Test.

    Permanent compression of the degree of distortion tester to take the standard test pieces, sandwiched between the flat panel, the screw rotation, compression to a certain rate, and then into a certain temperature of the oven (optional), after the specified time to remove, remove Test pieces, cooling for 30 minutes, measuring the thickness, into the formula for compression distortion.

    Clamp specimens between metal plates by tighten nuts to apply a certain pressure for a required period,
    place the device with specimen in a oven with required temperature for a required period, specimens were taken out and cooled for 30 minutes,
    the final thickness is measured for calculating the recovery performance of specimen.

    Specification

     Test pieces  rubber φ28.68, 12.7mm (D) foam plastic 50 × 50 × 25mm
     Volume  20 × 12 × 10cm
     Weight  11kg



    Standards

    CNS-3560,10487, JIS-K6301, ASTM-D395
