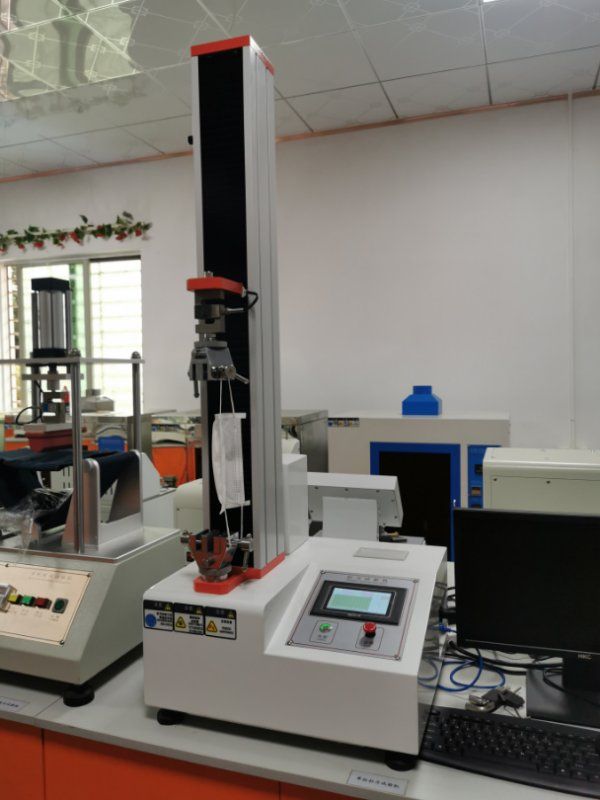

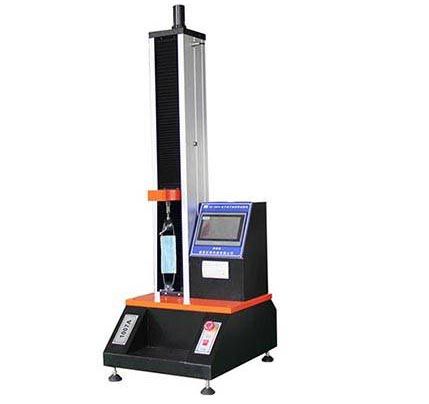

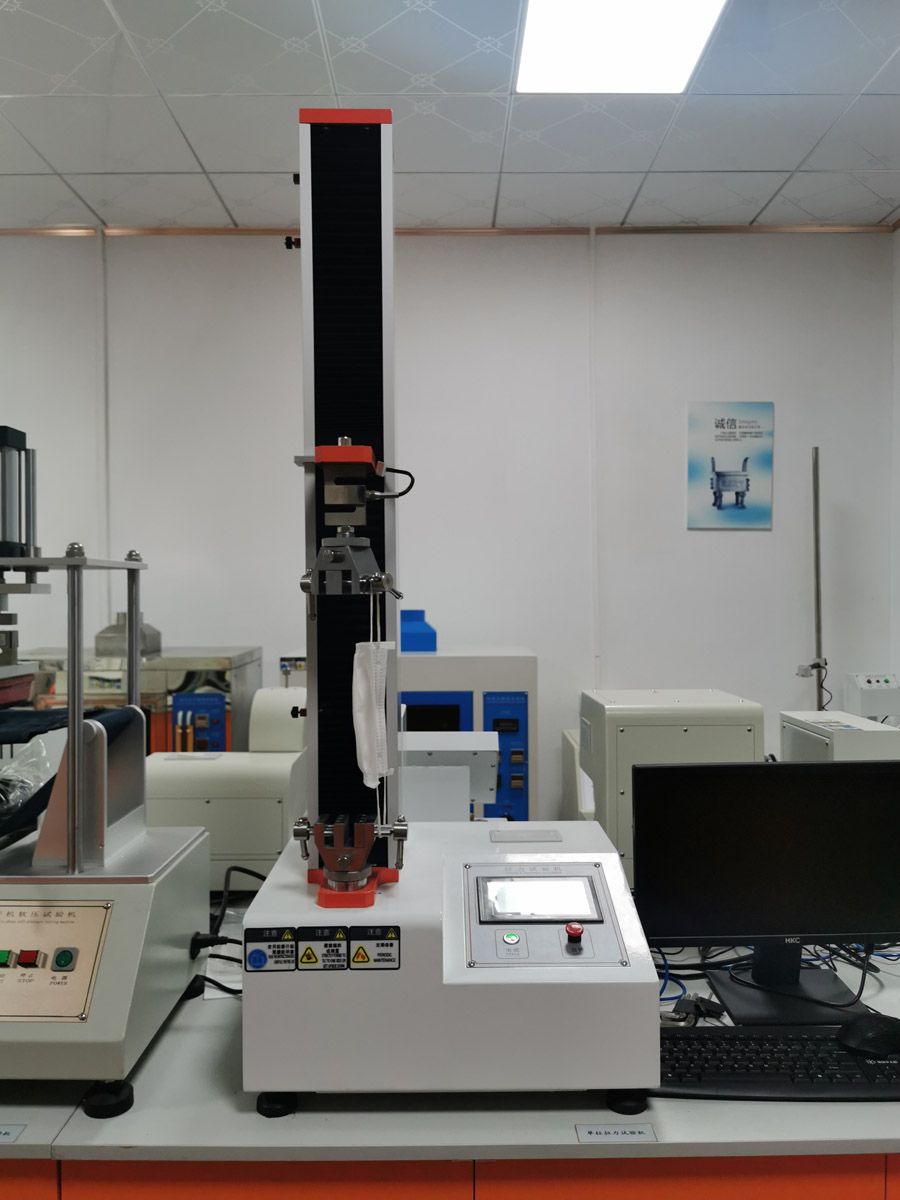

- Mask Tensile Testing Machine
Product description
The mask tensile testing machine is a simple tensile testing machine with a simple structure and convenient operation. It can be placed on a workbench for testing. It uses an electronic control system to control the rotation of the speed control motor through a speed governor, and then drives the T-shaped screw rod to drive the load sensor up and down after decelerating through the speed-change mechanical mechanism to complete the tensile or compression test of the sample. The force value is output by the sensor, the feedback display, and the test speed is displayed in real time.
With simple and convenient operation, it is especially suitable for testing products on the production line to control product quality. This series of models are mainly suitable for testing non-metal and metallic materials with a test load below 1000N.
Main features
1.The core components of this measurement and control system adopt the latest imported ultra-high precision 24-bit AD
2. When the sampling rate is 400 times per second, the resolution is 300,000 divisions without binning, and the 6-point calibration technology is used to further improve the accuracy, so that the force collection accuracy reaches the national standard.
3. Three measurement units: N-Kgf-Lbf is optional and can be interchanged automatically;
4, 7-inch TFT color touch screen, directly input test parameters, Chinese and English operation interface prompts, the user can easily operate without an operation manual. In addition, it can communicate with the PC through the RJ45 network interface, coupled with the dedicated TM2100Pro professional luxury version of measurement and control software, real-time display of force-displacement, force-time, displacement-time, stress-strain curves, etc. , Average force, maximum deformation, yield point, elastic modulus and other parameters, and has flexible report editing and printing functions.
5. Single measurement, can read the peak value in both directions of pulling and pressing, can be manually cleared;
6. With travel limit and overload stop function.
7. The table type single column structure is beautiful and exquisite.)
Main functions
This machine is suitable for stretching, compressing, bending, shearing and peeling of masks, various textiles, rubber, plastics, synthetic leather, tapes, adhesive products, plastic films, composite materials, electronics, metal and other industries and products. (90 degrees and 180 degrees), tearing, two-point extension (requires additional extensometer) and other tests to determine the quality of the product.
Technical Parameters
1. Screen: 7-inch TFT color touch screen, directly input test parameters, and Chinese and English operation interface prompts.
2. Power system: AC motor + Hailip inverter
3. Maximum load: 100KG American high precision sensor
4. Capacity selection: 1kg, 5KG, 10KG, 20KG, 50KG, 100kg
5. Unit switching: Kg, lb, N
6. Measurement system: load element + HZ-2000
7. Load measurement accuracy: load element + HZ-2000 display ± 0.5% (5% -100% of full scale)
8. Resolution: 1/50000
9. Maximum test space (excluding fixture): about 500mm (excluding gripper, special test space can also be customized according to customer needs)
10. Effective test width: the distance between the test column and the center of the sensor is 60mm.
11. Test speed: 50-300mm / min stepless speed regulation and 5-speed fixed speed (special test speed can also be customized according to customer needs)
12. Data sampling frequency: 200times / sec
13. The machine contains a thermal printer, which can automatically output the test results.
14. It can store the results of 10 test reference points, automatically calculate the average value, automatically capture the maximum value, and the force value at the time of breaking.
15. Breakpoint ratio setting range: 0 ~ 99%. It can be easily set according to the test needs of different test strips to achieve different positions of the shutdown state.
16. Safety device: overload, emergency stop device, up and down stroke limiting device.
17. The appearance is beautiful, and the column shell is made of aluminum alloy.
18. Power rate: 120W
19. Volume: 450 × 550 × 1430mm
20.. Weight: 75kg
21. Electricity source: 1Φ, 220V, 15A
22. Display mode: HZ-2000 dark blue LCD screen Chinese display, film touch key, with the following functions:
①.Single test, manual 10-point statistics, and automatically calculate the average value and fracture value;
②. Automatic switching of multiple units such as kgf, Lbf, N;
③. Free point access function;
④. With multi-function correction function;
⑤. Automatic print function;
⑥. Adopt 24-bit AD acquisition, resolution 1/200000;
⑦. Decimal point number of 0 to 4 arbitrarily selected;
⑧.Power-on password protection function can effectively prevent non-operators from starting;
⑨. The breakpoint ratio is from 0 to 99%. Users can set the appropriate break down time according to different materials.
⑩. Overload protection function can be set to effectively prevent machine overload;
