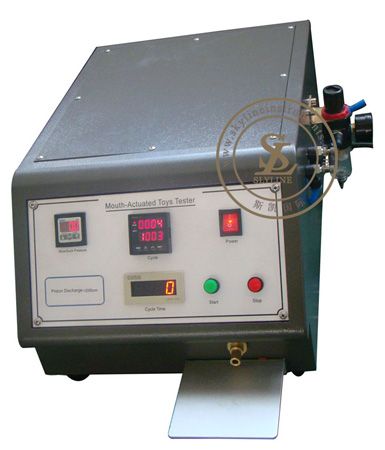

- Mouth Acted Toys Tester
This testing is suitable for testing the safety capability of Mouth Toys.
Satisfied conditions：create 295 ± 10cm3 gas volume within 5s at least，And can be alternately blowing and suction toys 10 times. Equipped with imported high-precision pressure gauge. Gas flow can control by the valve.
Mouth Actuated Tester Testing Safety requirements：
1. Mouth toys and toy in which to remove the mouthpiece and cannot be a Widget
2. The un-removed mouthpiece in the mouth moving toys, run soaking test, the torque test and tensile test shall not create small parts
3.The mouth toys if they contain loose parts, when running the durability test shall not create small parts ( alternately blow and suction toys using 295 ± 10cm3 gas volume within 5 seconds and repeat 10 times)
4. Removable or cannot remove the mouthpiece of the balloons must comply with the requirements of 1 and 2
Testing Standards
EN 71,GB/T 6675, ASTM F963,ISO8124-1
Item
Specifications
Gas Pressure
0-10kgf/cm2adjustable
Display mode
LCD display
Blow-suction flow
295±10cm3/s adjustable
Counter
9，999 times, can be specified
Gas Pressure
0~10kg/cm2 adjustable
Power supply
1∮，AC 220V，100W
Dimension
(650*400*260)mm
