  • Site:Home > Textile Testing Equipment > Textile Physical Test Instruments > SL -F34 Nail Hammer Hook Wire Performance Tester
  • Product Images
  • SL -F34 Nail Hammer Hook Wire Performance Tester

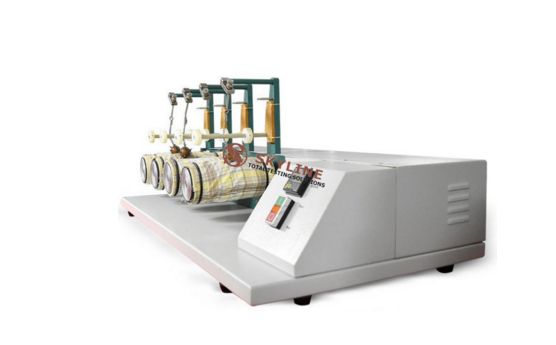

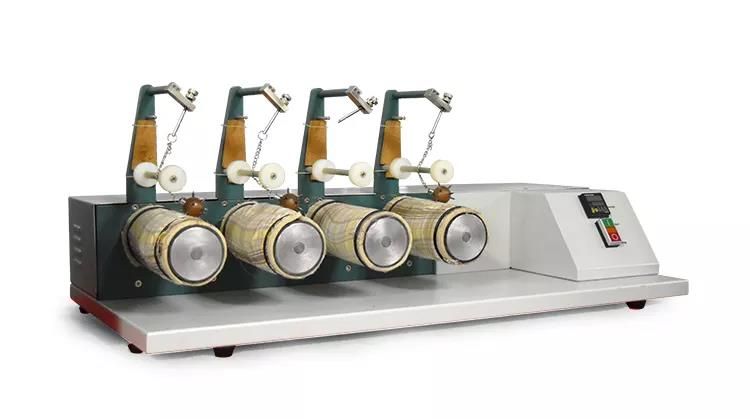

    SL -F34 Nail Hammer Hook Wire Performance Tester

    SL -F34 Nail Hammer Hook Wire Performance Tester

  • detailed description
  • SL-F34 Nail Hammer Hook Performance Tester


    Use
    It is used for the anti-hook performance test of knitted fabrics and other easy-to-hook fabrics.



    Standards compliant
    ASTM D3939


    Technical parameters

     Number of stations  4 stations
     Rotating speed  60±2r/min
     Counting range  0~99999
     The diameter of the drum  Φ82mm; width 210mm
     The quality of the hammer  160 ± 10g
     The number of nails implanted  11
     Needle nail exposed length  10mm; tip radius R0.13mm
     Felt thickness  3 ~ 3.2mm; width 165mm
     The working width of the guide rod  125mm
     Distance between nail hammer and guide rod  45mm
     Power Supply  AC220V, 50Hz, 200W
     The external dimensions  630 × 450 × 650 mm
     Weight  60kg
