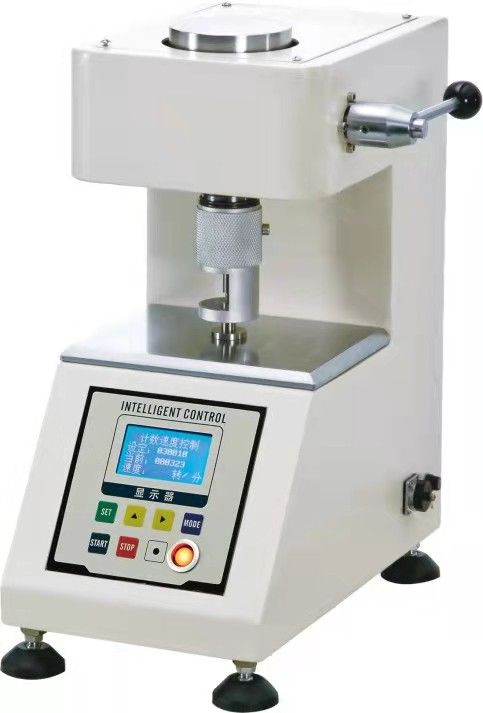

ISO 17700 Rotary Rubbing Color Fastness Tester

Product Introduction

This machine is suitable for the evaluation test of shoe upper materials, leather, plastics and special colored materials such as textiles after being rubbed by foreign objects. The materials are damaged and the surface color transfer degree evaluation test. It can complete five kinds of dry, wet, sweat, alcohol, and organic solutions. The test method is evaluated by rubbing the rotating wool blanket with the sample and then referring to the gray standard. With power-off memory function

Standards

QB/T2882, ISO 17700, SATRA TM8, SATRATM14, BS 1006, BS5131

Technical parameters
Specimen size: 60*60mm
Speed: 149±4.8cpm
Wool blanket pad: outer diameter: 25±1mm inner warp: 3±0.5mm
Test load: 7.1±0.2N, 24.5±0.5N
Volume: 30*45*50cm
Weight: 35kg
Power supply: AC220V50HZ
