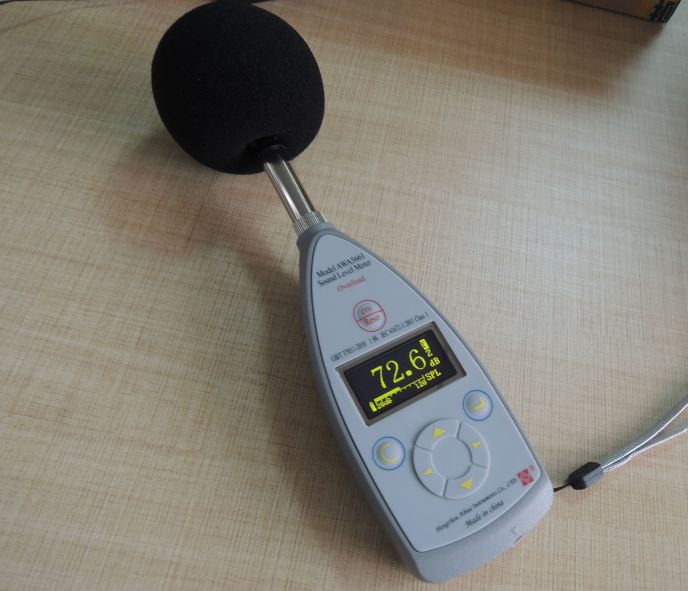

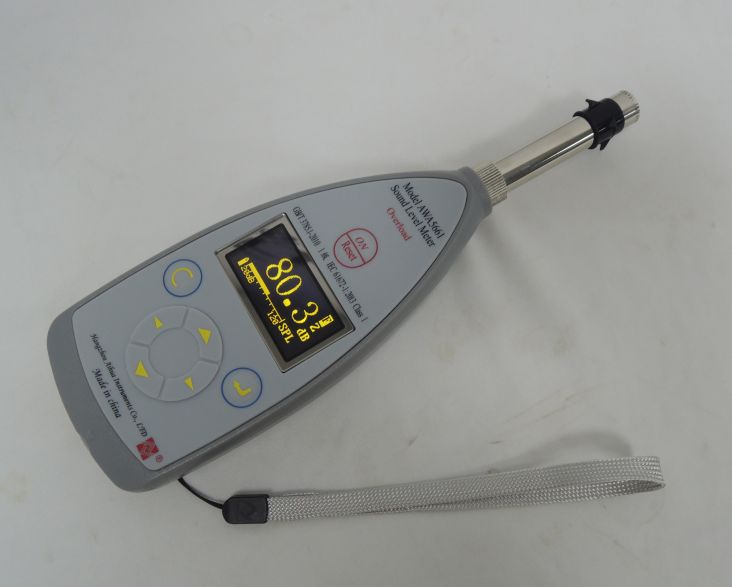

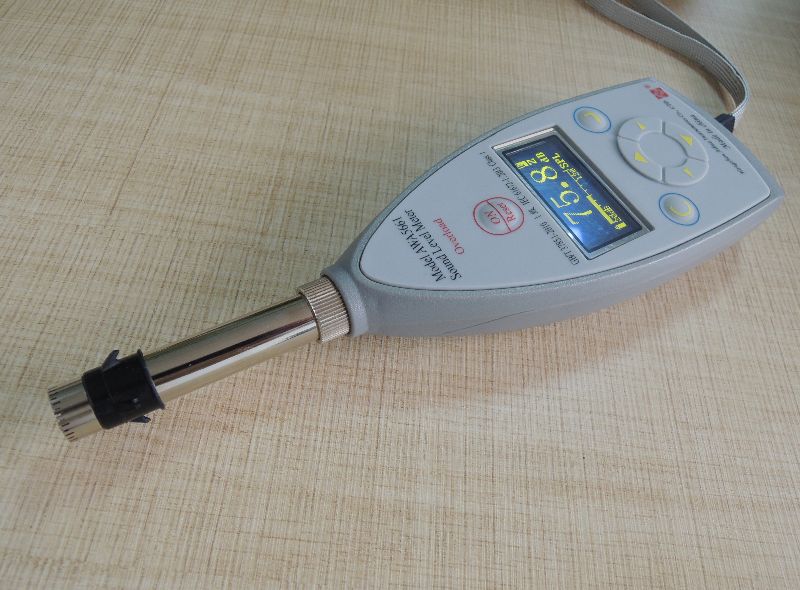

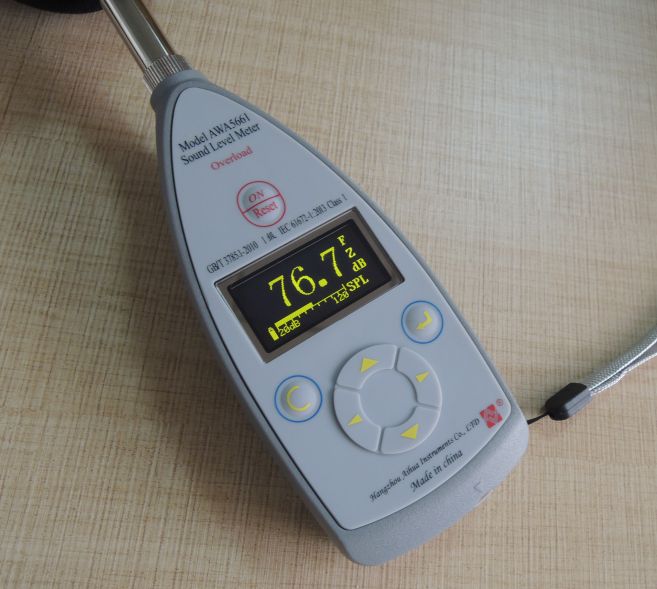

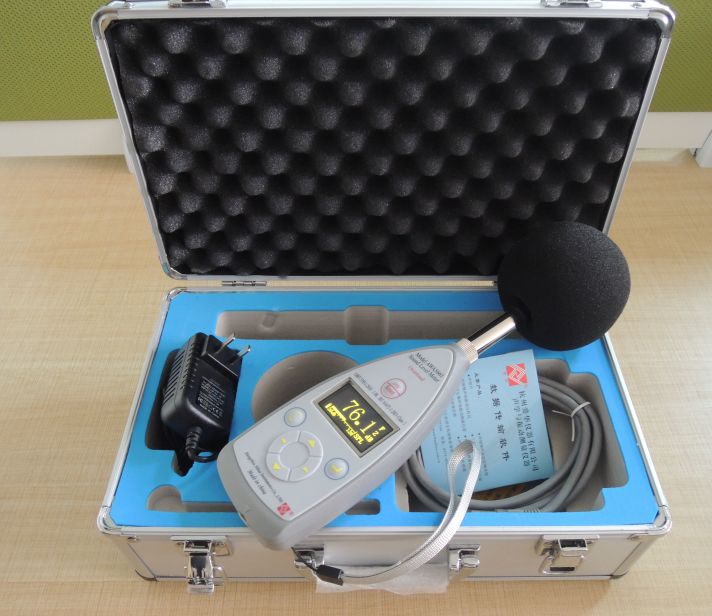

  • SL-S35 Sound Level Meter

    SL-S35 Sound Level Meter

    SL-S35 Sound Level Meter

    SL-S35 Sound Level Meter

    SL-S35 Sound Level Meter

    SL-S35 Sound Level Meter

  • detailed description
  • Sound Level Meter



    Use

    It is used to measure the sound pressure level, is suitable for detecting near-ear toys, rattle toys, squeeze toys, gunpowder cap toys, other hand-held toys, stationary or self-driven desktop and ground toys, dragging toys, hand-starting clockwork toys and hands The sound of a rocking toy is loud to prevent excessive sound from damaging the child's hearing.


    Technical parameter
    Frequency weighting characteristics A (simulated human ear) & C (mechanical self noise)
    Time characteristic selection fast/slow reaction rate
    Microphone 1/2" condenser microphone; AC/DC signal output; maximum lock
    Overload display OVER / UNDER symbol indication; low power display; automatic shutdown / cancel automatic shutdown
    Packing method PP box + color box
    Product net weight 308 grams (with battery)

     Measurement range  30~130 dBA, 35~130 dBC
     Accuracy  ±1.5 dB
     Digital & Resolution  5 Bit & 0.1 dB
     Frequency response  31.5Hz ~ 8.5KHz
     Measuring gear  30~130, 40~90, 50~100, 60~110, 80~130
     Sampling frequency  2 times / sec
     Power supply  1.5V AA battery 4 or DC 6V 100mA DC power supply
     Product size  256*70*35 mm
