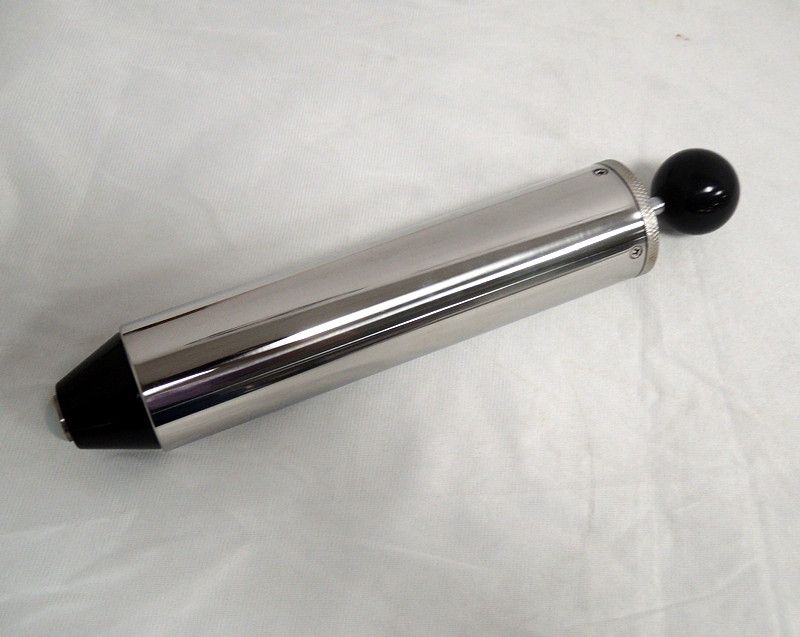

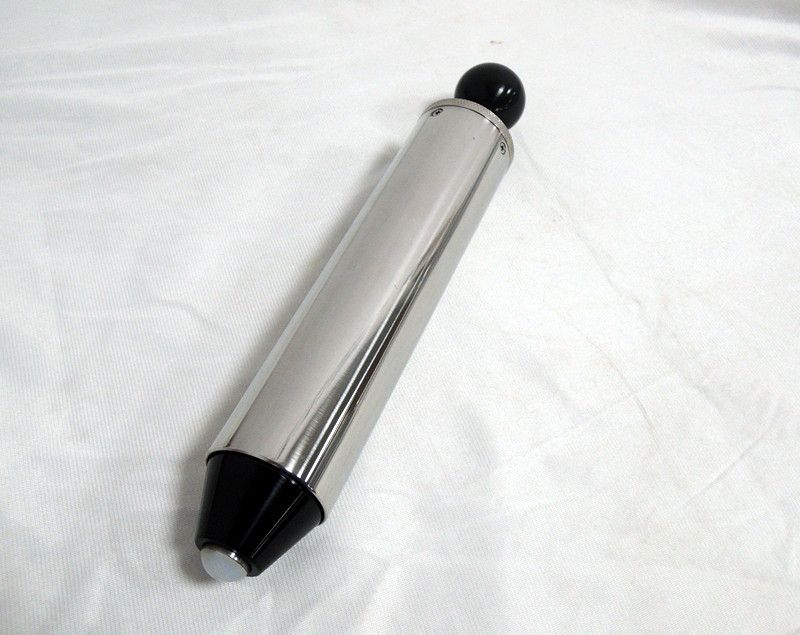

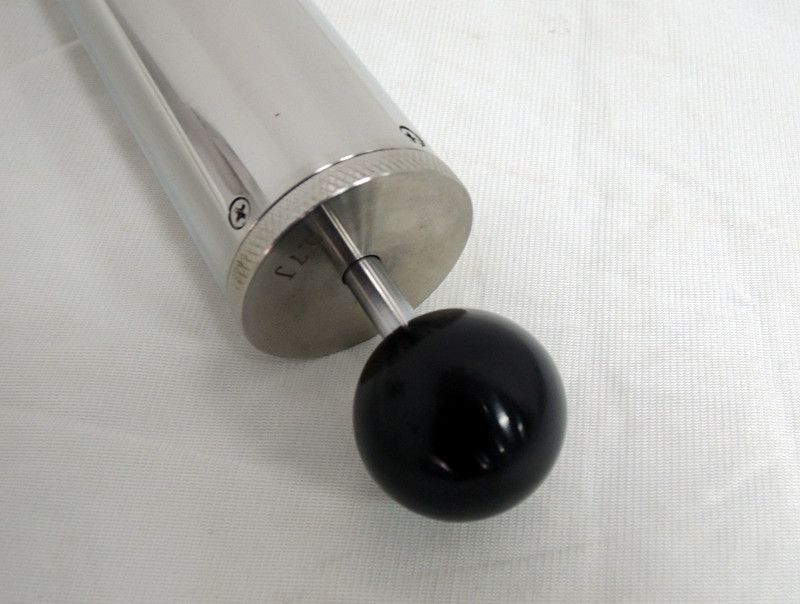

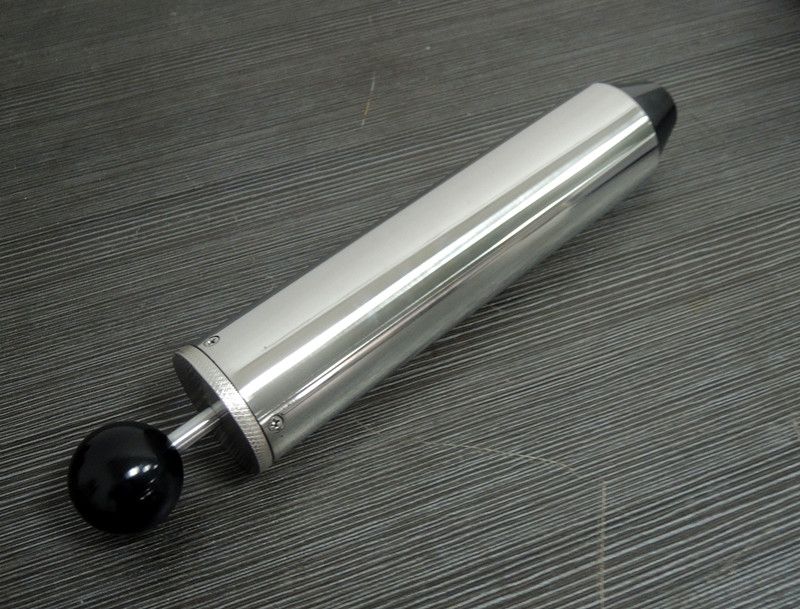

0.5 J Single Energy Spring Impact Test Hammer for Household Electronic Testing Equipment
Product Introduction
Spring hammer impact tester is used to check the durability of enclosures for electrical appliances of other electronic products. If damage occurs from the Impact Hammer test .Accessibility probes can be used to measure the extent or severity of the damage. The Impact Hammer simulates the mechanical impact to which electrical equipment may be subjected. , impact hammer test,
Application
This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.
Technical parameters
Type | Impact Energy(J) | Tolerance Mistake |
Spring Impact Energy |
0.14 | 0.014 |
Spring Impact Energy |
0.20
|
0.02 |
Spring Impact Energy | 0.35 | 0.03 |
Spring Impact Energy | 0.50 | 0.04 |
Spring Impact Energy | 0.70 | 0.05 |
Spring Impact Energy | 1.00 | 0.05 |
Spring Impact Energy | 2.00 | 0.10 |
Universal Energy | 0.14 | 1.00 |
Length | 211mm | Hammer Weight | 60g |
Weight | 1250g | Hammer radius | 10mm |
OD | 50 mm | The release force of impact
|
<10N |
Impact Components | Including the hit ball handle the hammer,weight 250g |
