  • Site:Home > Toys Safety Testing Equipment > EN71-8,ISO8124-4 > ISO 8124-1 Toys Scooter Steering Tubes Strength Tester
  • Product Images

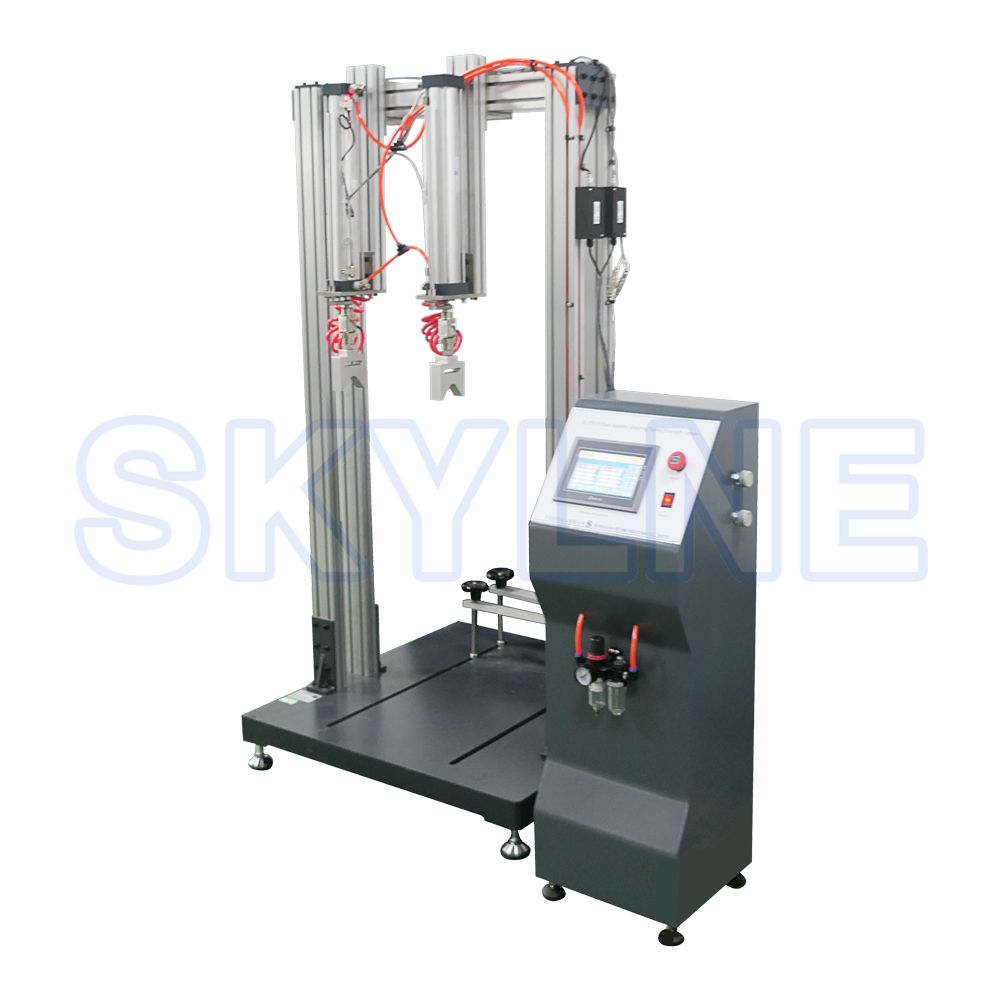

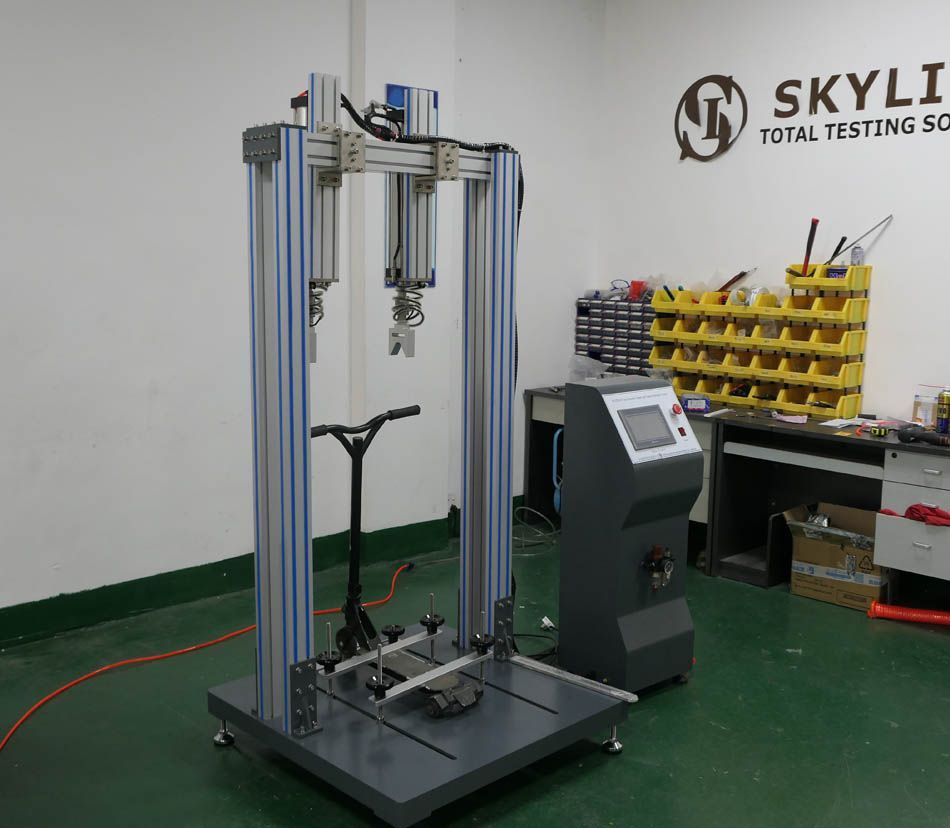

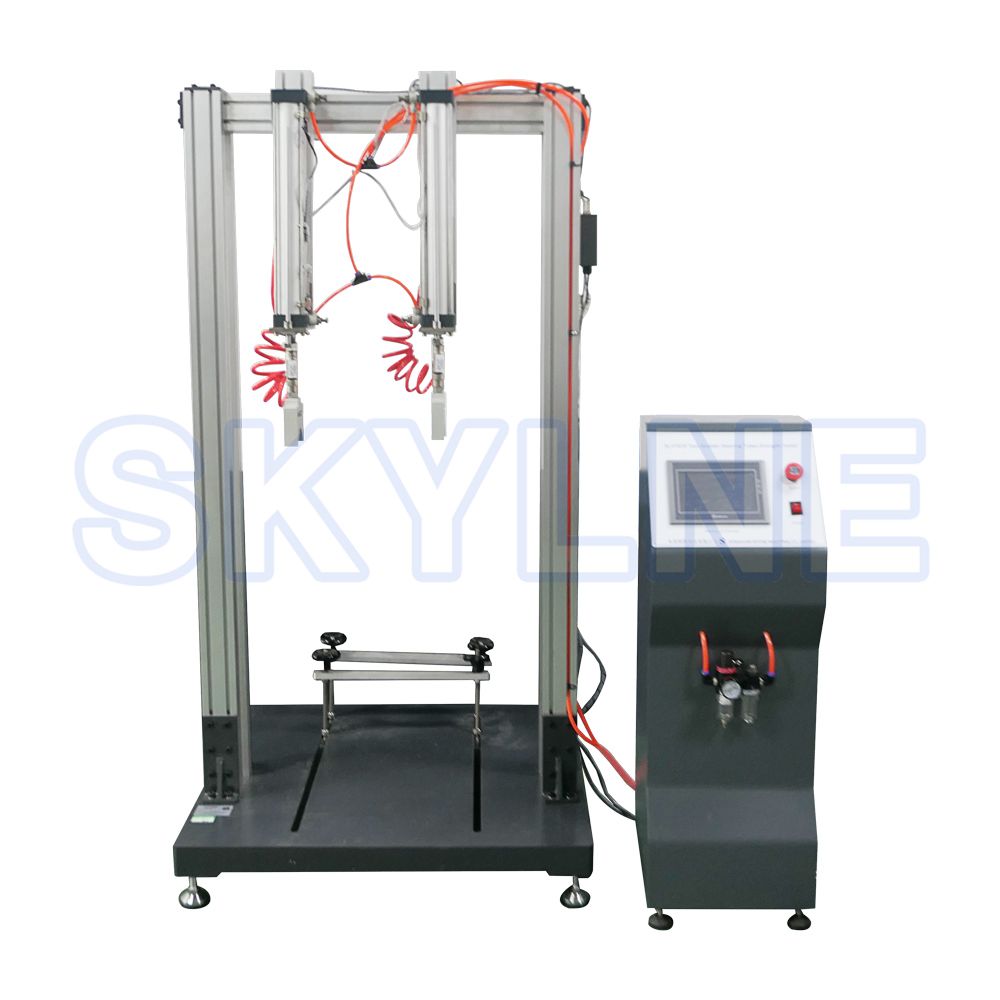

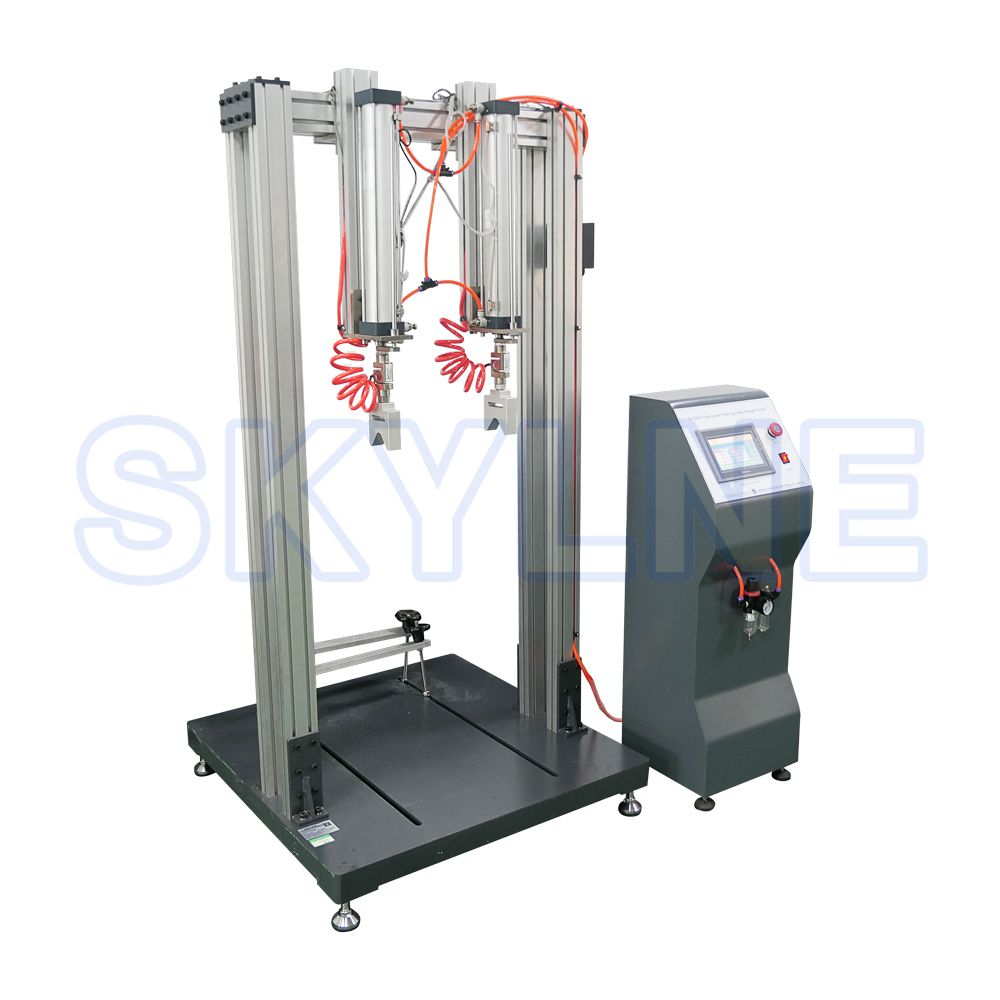

  • ISO 8124-1 Toys Scooter Steering Tubes Strength Tester

    ISO 8124-1 Toys Scooter Steering Tubes Strength Tester

    ISO 8124-1 Toys Scooter Steering Tubes Strength Tester

    ISO 8124-1 Toys Scooter Steering Tubes Strength Tester

  • detailed description

  • ISO 8124-1 Toy Testing Machine Toys Scooter Steering Tubes Strength Tester





    Please review video of Toys Scooter Steering Tubes Strength Tester as below link:

    https://youtu.be/Yu2dftlvxp0


    Application of Toys Scooter Steering Tubes Strength Tester

    Toys Scooter Steering Tubes Strength Tester apply to test the strength of toy scooter steering tubes,including resistance to downward forces and resistance to upward forces.

    This tester is suitable for the test of the strength of the toy scooter. In the normal use of the toy scooter, the vertical tube is fixed vertically on the machine platform, and the strength performance after 5 minutes of vertical load is applied by the loading handle.



    Principle of Toys Testing Equipment

    • Impedance test for downward pressure: For the toy scooter handle, the vertical load of the loading jig was applied and held for 5 min and then unloaded to evaluate the strength performance of the standpipe.

    • Impedance test for upward lift force: The strength performance of the standpipe is evaluated by applying a vertical pull force to the toy scooter handle through a rope clamp and holding it for 5 minutes.





    Technical parameters of Toys Scooter Steering Tubes Strength Tester

     Sample  Toy scooter
     Number of samples  1 set / time
     Loading method  cylinder loading
     Loading weight  25kg+/-0.2kg,50kg+/-0.5kg,100kg+/-1kg
     Control mode  Touching screen control
     Force Gauge capacity  2000N
     Up and down stroke adjustment  100mm-600mm Adjustable
     Left and right adjustment range  500mm-1200mm Adjustable
     Force measurement accuracy  +/-1%
     Dimension  90×90×172
     Weight (about)  170kg
     Gas source  7kgf/cm^2 Stable air source
     Power Supply  1∮ AC 220V 50Hz 5A
