Product Description

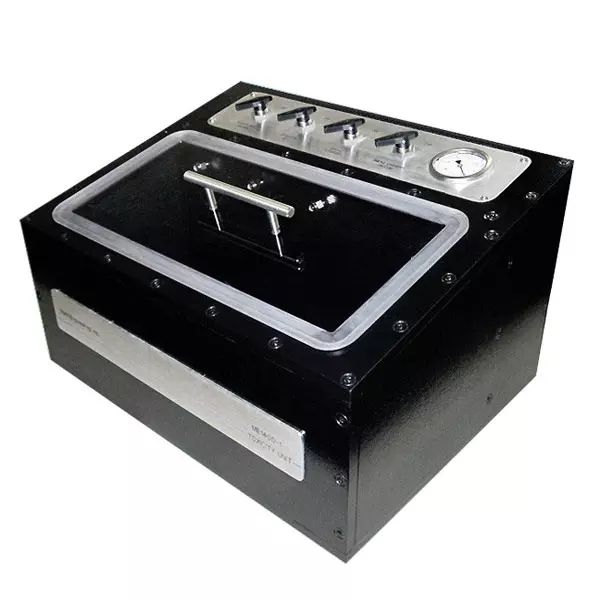

Vacuum gas acquisition box developed according to BSS7239, a Boeing aeronautical material testing standard.

Performance characteristics
1. Suitable for Boeing and Airbus smoke toxicity test requirements, for collecting smoke density test box smoke;
2. Equipped with four gas interfaces, it can be used with smoke density test box at the same time.
3. Equipped with gas switch valves, pressure gauges, flowmeters and other devices;
4. Vacuum acquisition mode is adopted in the box, which is convenient for users to use.
Applications: Aviation Materials
Standard: AITM Airbus Standard: AITM 3.0005
BSS Boeing Standard: BSS 7239
Size: 570 mm (W) x 500 mm (D) x 480 mm (H)
Weight: 15KG
Ambient temperature: room temperature to 35 degrees
