Building Materials Flammability Tester Test Method For Flammability Of Rigid Cellular Plastic

Product Description

Standard: ASTM D3014 GB 8624:2012, GB/T 8333:2008

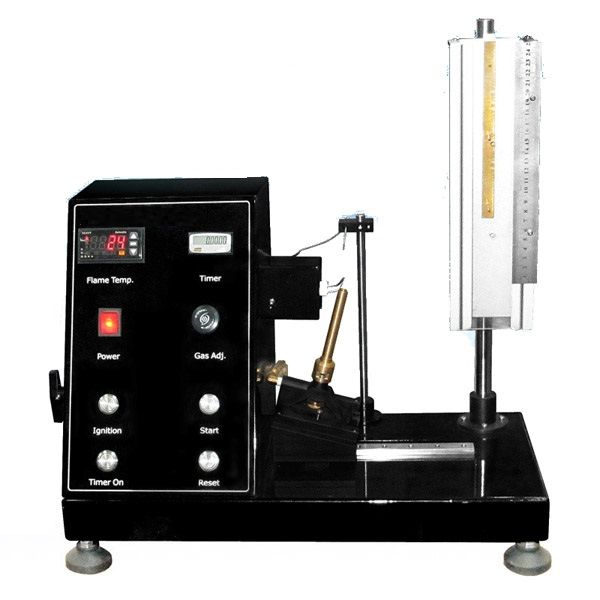

The vertical combustion tester for rigid foam plastics is suitable for flame height, burning time and weight loss of rigid thermosetting foam plastics in vertical state. It meets GB/T 8333 and ASTM D3014a.

Performance characteristics

1. Equipped with Bunsen burner, it can provide 900 degree test temperature.

2. The thermocouple can be moved manually to avoid long time contact with flame damage.

3. The test can be completed by one key, and the burner adopts automatic driving mode.

4. The burning length can be displayed by measuring the steel ruler.

5. Gas flow can be adjusted and cut off by itself.

6. The test box is treated with Teflon to avoid corrosion.

Size: 420 mm (W) x 350 mm (D) x 520 mm (H) weight: 15KG

Installation requirements

Electricity requirements: 220V, 50HZ

Ambient temperature: 10 ℃ to 35 ℃

Installation space: Fume hood placement

Gas requirements: industrial propane

Applition : building materials ,Other
