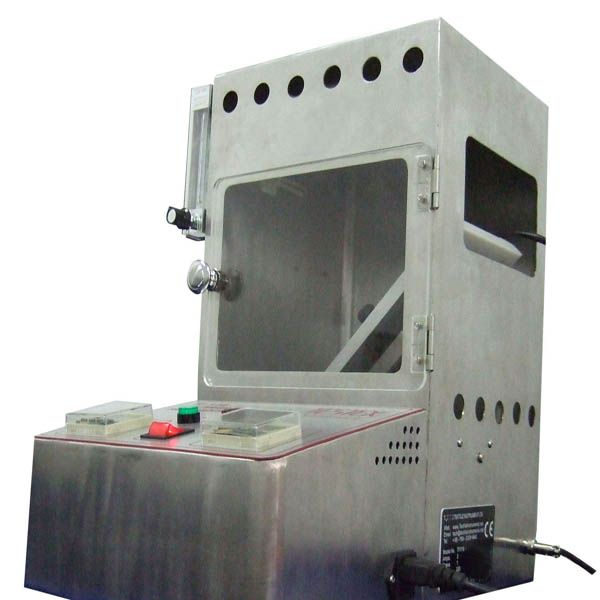

- SPI 45 Degree Flammability Tester for Flame Retardant Testing of Polyethylene Plastic Film Materials
Product introduction
SPI 45°flammability tester is specified apparatus for flammability of vinyl plastic film according to 16 CFR1611.
Product parameters
1.Stainless steel test cabinet with glass observation panel.
2.Provided with automatic timing of flame spread in 0.1 second increments.3.Fully automatic microswitches activate and record ignition time and burn time4.Ignition time and burn time recorded by timers.5.Microswitch activation one Specimen holder included.
Product Feature and Application1.Stainless steel cabinet with transparent viewing window;2.22nd needle flame, adjustable flame length;3.Micro switch control mode;4.Automatically record ignition time and burning time;5.The timer accuracy is 0.1 second;6.Stainless steel sample holders are available.
Product DetailsThe SPI 45-degree Flammability Tester is manufactured in accordance with the US Flammable Fabrics Regulation (FFA), which is a mandatory test standard for the US Consumer Product Safety Commission (CPSC); it is primarily used for the detection of flame retardant properties of polyethylene plastic film materials. The product inspection range is mainly non-rigid and unsupported polyethylene film materials, including transparent, translucent and opaque materials.Standard:CFR 1611Dimension:390mm (W) x 526mm (H) x 380mm (D)Weight:32kg
Installation requirementsElectrical: 110 to 230 V, 50HZAmbient Temperature: Operating 21°CGas: Butane
