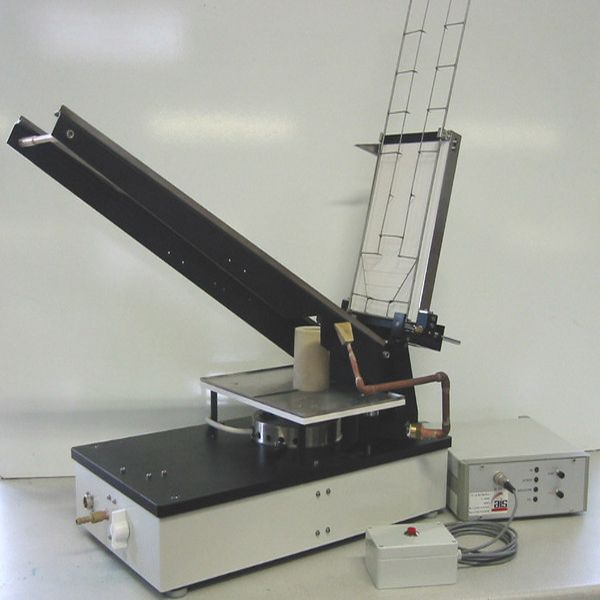

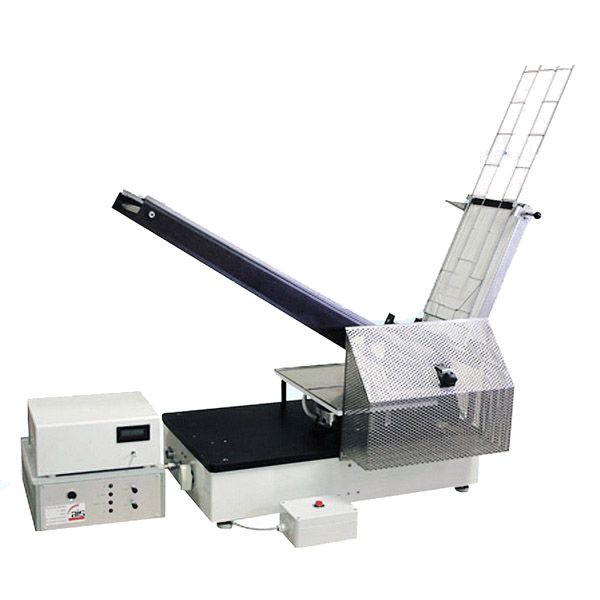

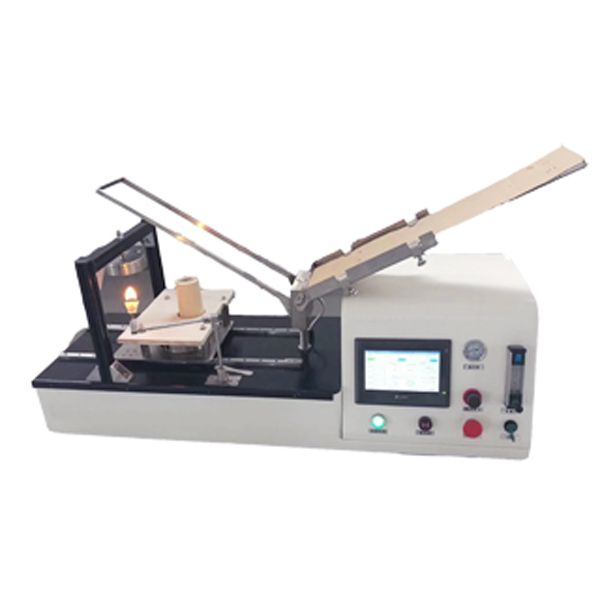

Electric Burner for Building Materials

Product introduction

The test is intended to place the sample under the following conditions: thermal radiation and hot gas sprayed onto the surface of the sample, a pilot flame will be used to ignite the pyrolysis gas. Record the ignition time, the persistence of the flame, the nature and impact of the combustion.

Techncial parameters

1. Applicable to French building materials and high-speed rail test standards;
2. Compliance with the test standard NFP 92-503 and French standard M1 classification in upholstered furniture;
3. Using a standard heat radiant furnace, heat the sample while applying a small flame for combustion, and then observe the flame propagation performance of the test.
Dimension:520mm(W)X 450mm(H)X 360mm(D)
Weight:37kg

Installation requirements

Electrical requirements: 220V, 50HZ, 10A;
Air source requirements: propane
Test environment: 25±5°C
Installation method: fume hood placement
