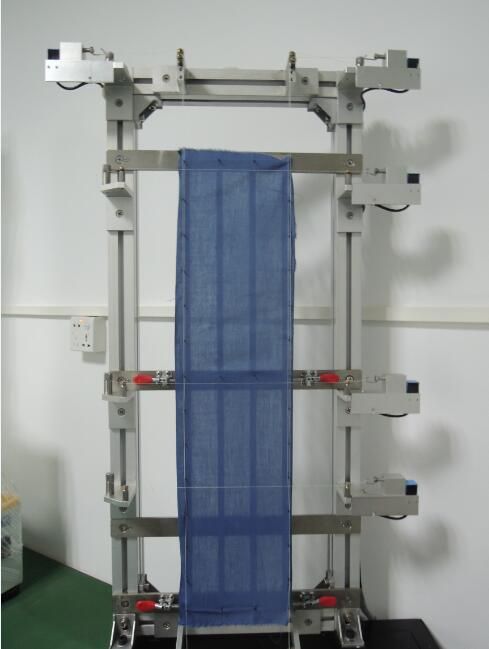

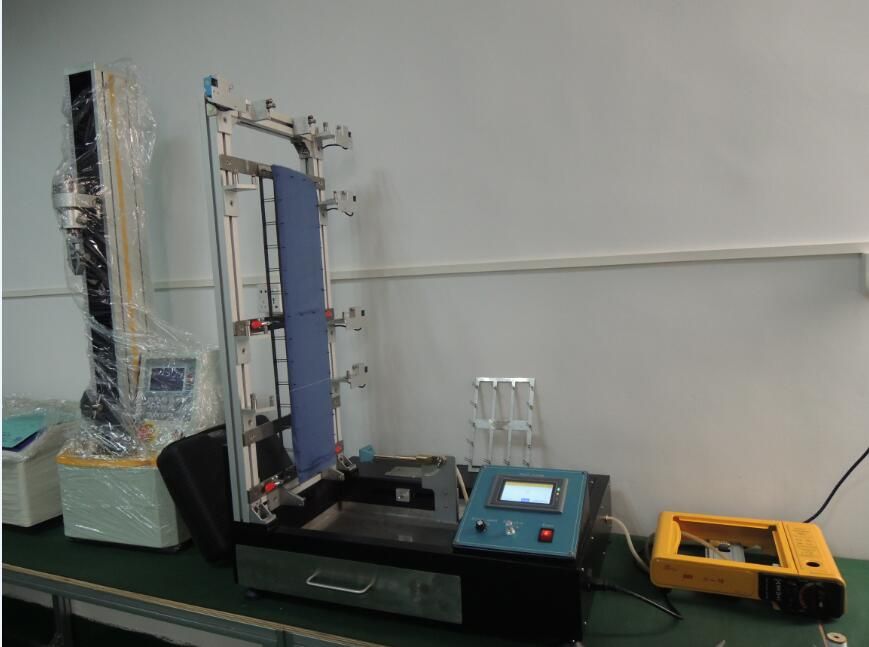

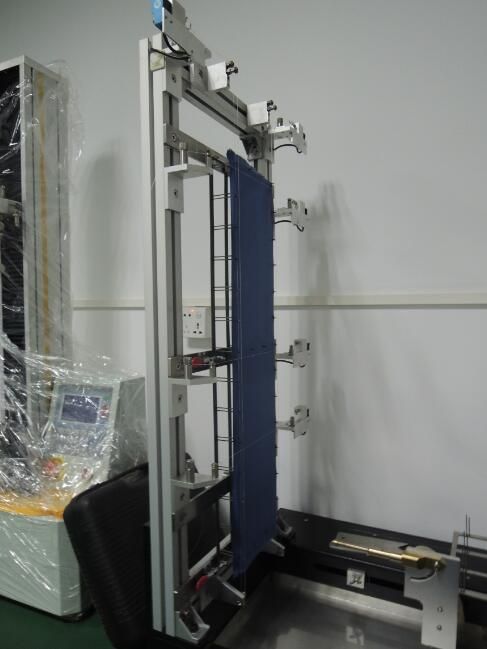

BS 5438 Vertical Flammability Testing Equipment
Product information
This tester is a test method for observing and measuring the flammability of textiles under conditions that limit the flame spread test and the vertical or bottom edge of a vertical sample to a slight flame. A product made of a single fabric or composite material, such as a coating, a multilayer fabric
Principle
Install the fabric sample on the fixture of the instrument and burn the sample according to the required flame for a certain period of time to record the relevant data (burning time) for assessing its combustion performance.Specification

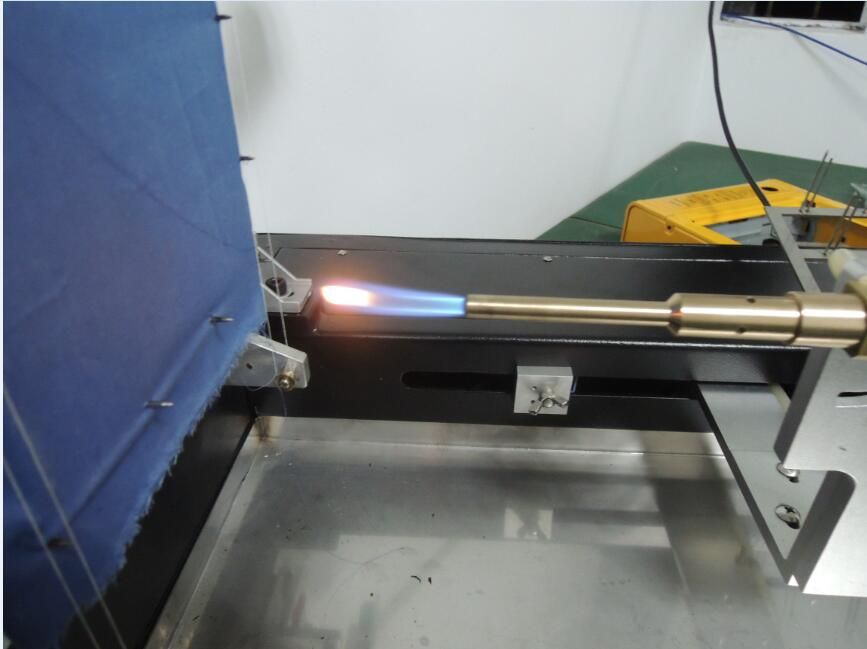

Ignition time setting range 0~99.99s Combustion timing range 0~999.9s Burner complies with BS 5438 Burner angle can be moved (horizontal and veritical) Test Flame Height can be adjutable U Shape Fixture Frame 160mmx250mm U-shaped clamp marking line position The first marking line is from the mouth of the fire mouth 167mm, the second mark line distance from the first mark line distance of 150mm, the third mark line distance from the second mark line distance of 300mm Rectangular fixture frame 160mmx700mm Combustion gas Butane Gas Dimension (WxDxH) 76x52x110cm Weight ≈55Kg Power supply 1∮ AC 220V 50Hz
