  • Site:Home > Leather and Footwear Testing Instruments > SL-L19 Footwear Compression Puncture Tester
  • Product Images

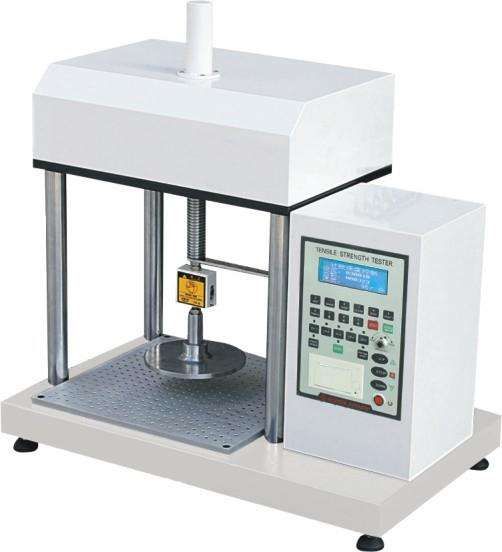

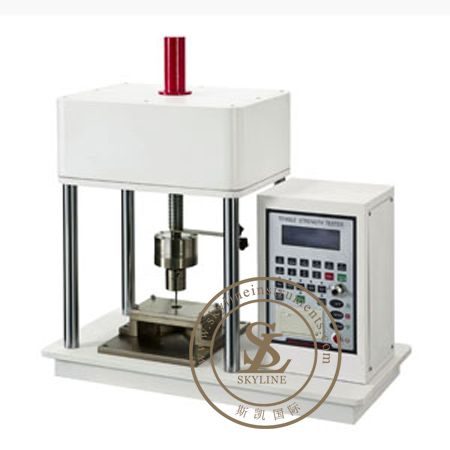

  • SL-L19 Footwear Compression Puncture Tester

    SL-L19 Footwear Compression Puncture Tester

  • detailed description
  • Footwear Compression Puncture Tester


    Please review video of the Footwear Compression Puncture Tester as below link:

    https://youtu.be/oF5rxYSQsdk


    Application
    Footwear Compression Puncture Tester is used to determine the safety footwear ability to resist the compression

    Test method: place the safety shoe on the right position, then add certain strength, and then check the degree of the subsidence in order to know about safety.


    Technical parameters

     Sensor capacity  20KN
     Load resolution   1/20000
     Accuracy within   1%
     Display system   English controller
     Compression speed   5 ± 2mm/min
     Motor AC motor  control system
     Measuring fixture   compression/puncture fixture
     Dimension  82*58*71cm
     Weight   148kg
     Power supply  AC220V 50HZ 0.4KW


    Test Standards

    ISO 20344 ANSI Z41 LD50,A EN12568;ANSI;JIS;CSA;


    What is the compression test?

    Compression tests are used to determine a material's behavior under applied crushing loads, and are typically conducted by applying compressive pressure to a test specimen (usually of either a cuboid or cylindrical geometry) using platens or specialized fixtures on a universal testing machine.
