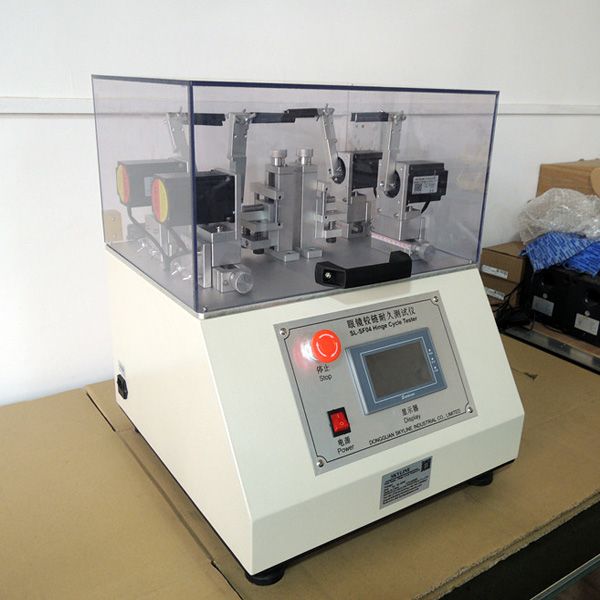

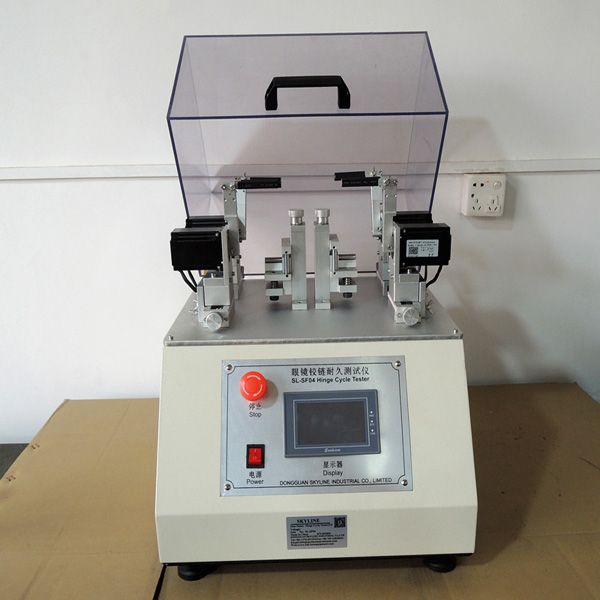

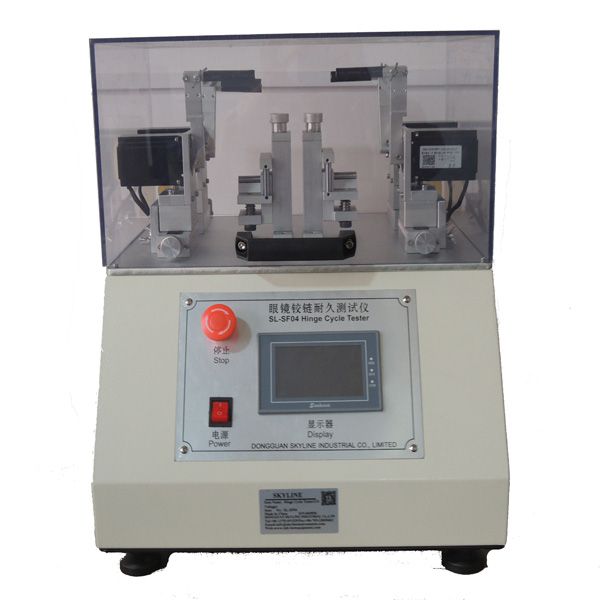

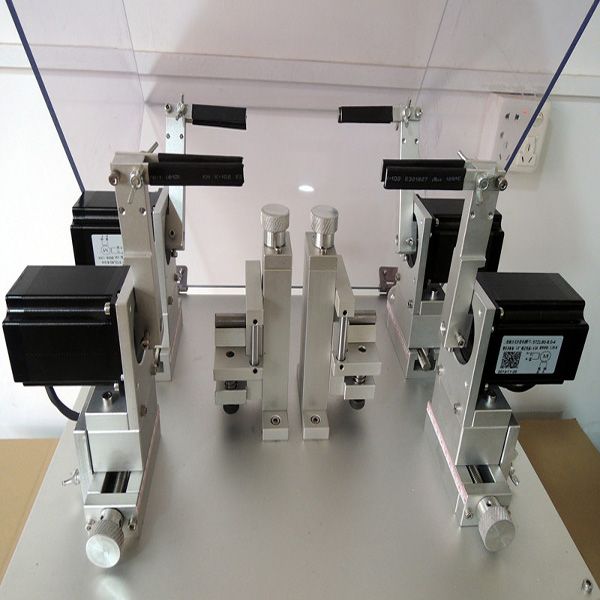

Hinge Cycle Tester(US Voltage)

Product Introduction

Test standards: GB13511-1999, GB / T14214-1998, QB2659-2004, QB2457-1999, industry standards, etc.

Test purpose: To determine the spring hinge of the frame has a certain durability, can withstand a certain number of opening and closing activities and maintain the original state, the purpose is to detect the change of the spring force of the spring hinge.

Technical parameters

(1) Control method: PLC

(2) Test station:2 station

(3) Count setting: 0-999, 999, 999, 99. Touch screen setting

(4) Angle setting:

Front and rear angle of each group can be set

Front angle -180--180 degrees

Back angle -180 ---- 180 degrees

(5) Speed can be set: 0-120 times / minute

(6) Swing pause time; 0-10 seconds

(7) Dimensions: 45 × 47 × 56 CM (length × width × height)

(8) Weight: 32 Kg
