  • Site:Home > Textile Testing Equipment > Lab Dyeing Instruments > SL-D06 Horizontal Padder
  • Product Images

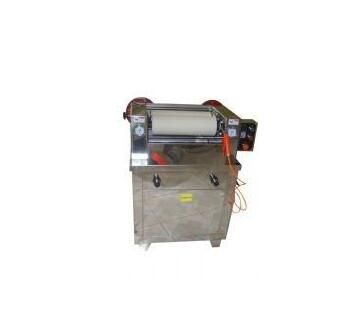

  • SL-D06 Horizontal Padder

  • detailed description
  • Horizontal Padder


    Function

    Simulate Completely padder dyeing process on site .Large cross-section film cylinder, guide the friction resistance is strong, power automatic reset, no left and right deviation, high reproducibility

    This Lab padder is made of quality NBR, good flexibility ensures long-life, long 420mm and diameter 130mm.


    Technical Parameters

    Working speed: 0-18 rotate/min can be adjustable

    Roller pressure:  0.03~0.8Mpa,pressure stable,easy to adjust
    pick up rate: when 70 shore hardness pick up rate can control in 25%~110%,suit for wild range fabric. But it has stable pick up rate once fix, no need to adjust and waste time.
    Power:Input 220V/50Hz

    Equipped with a 370W three phase motor with gearbox


    Safety Facilities

    There are hidden at the bottom of the host positive knee pressure micro switch, emergency stop switch on the control panel, roller stop once the switch act and automatic reset, and the motor stopped running


    What is padding horizontal?

    It is the direction of padding - vertical padding is padding in the vertical direction, so top/bottom. Horizontal padding is padding in the horizontal direction, so left/right.
